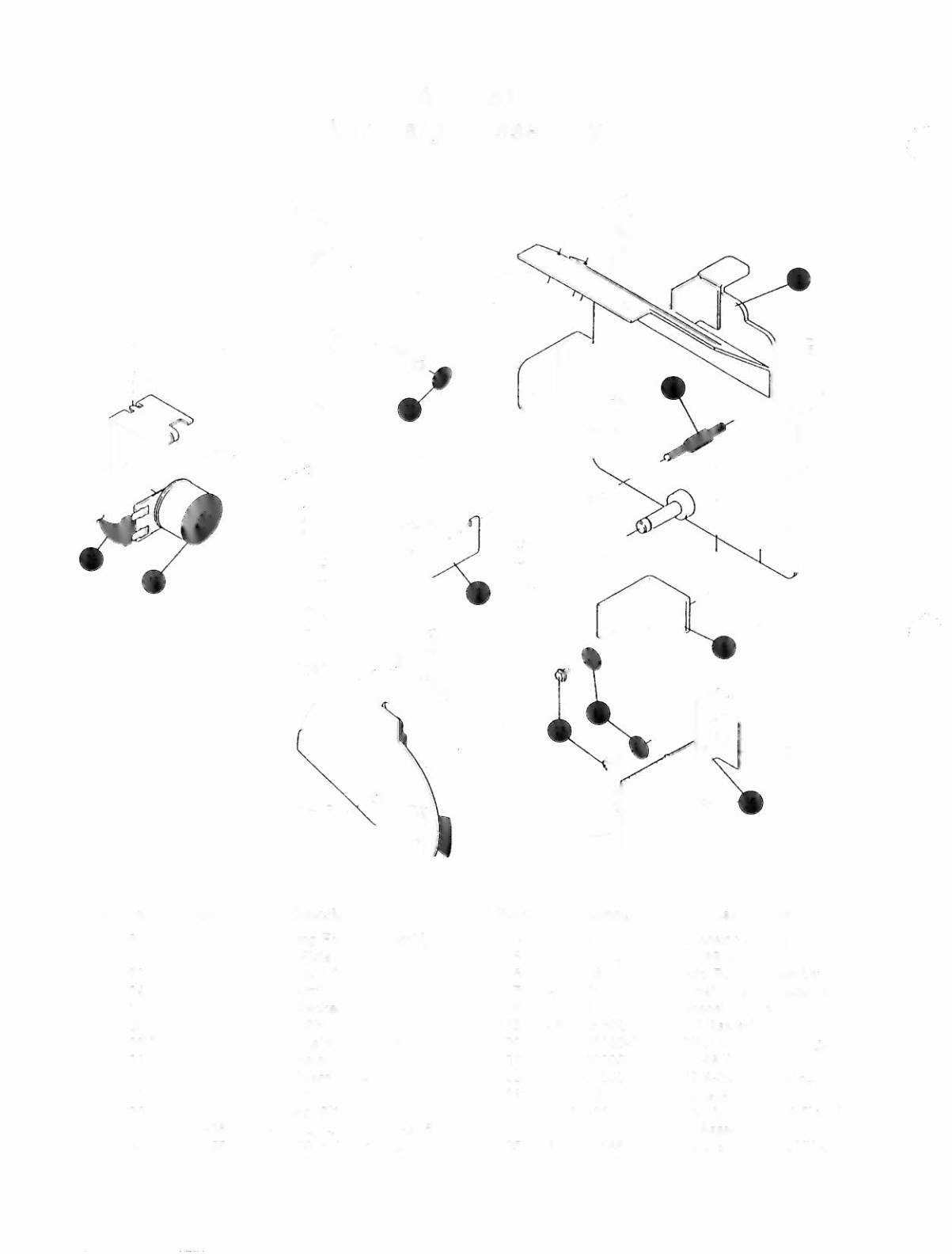

Vari- Target Assembly
8
19
.)\1
....-
I
I
/'
I ....~
I
I
I
I
I
I
I
....-
Item Part Number
Description
Item Part Number
Description
1 04-10385.1
Mounting Frame Assembly
14 10-433
Extension Spring
2 04-10387.1
Strike Plate Assembly
15 4408-0111 9-00
Nut #8-32 ESN
3 20-8712-12
"En Ring, 1/8 Shaft (2)
16 A-20906
Opto Board Assembly
4 04-10388
Pivot Arm Assembly
17 A-15821
Armature Sub-Assembly
5 01-14340
Stop Bracket
18 10-363
Extension Spring
6 02-5266
Spring Pin
19 SM1-26-600
Coil Assembly
7 02-5260
Strike Plate Pivot Stud
20 4700-00089-00
FW .172 x .437 x 16 gao
8 01-14332
Stop Plate
21 4701-00003-00
LW #8 Split
9 01-14335.1
Opto Board Bracket
22 4008-01005-06BR MS 8-32 x 3/8 P-PH,..Brass
10 20-8712-25
"E" Ring, 1/4 Shaft
23 H-19523
Cable Assembly
11 20-8712-18
"E" Ring, 3/16 Shaft
24 04-10451
Mounting Frame & Eyelet
12 4008-01168-06
MS 8-32 x 3/8 PL--HH-S (6)
Assembly
13 4700-00021-00
FW .203 x .437 x .0329 (4)
25 4008-01168-04
MS 8-32 x 1/4 PL-HH-S (2)
