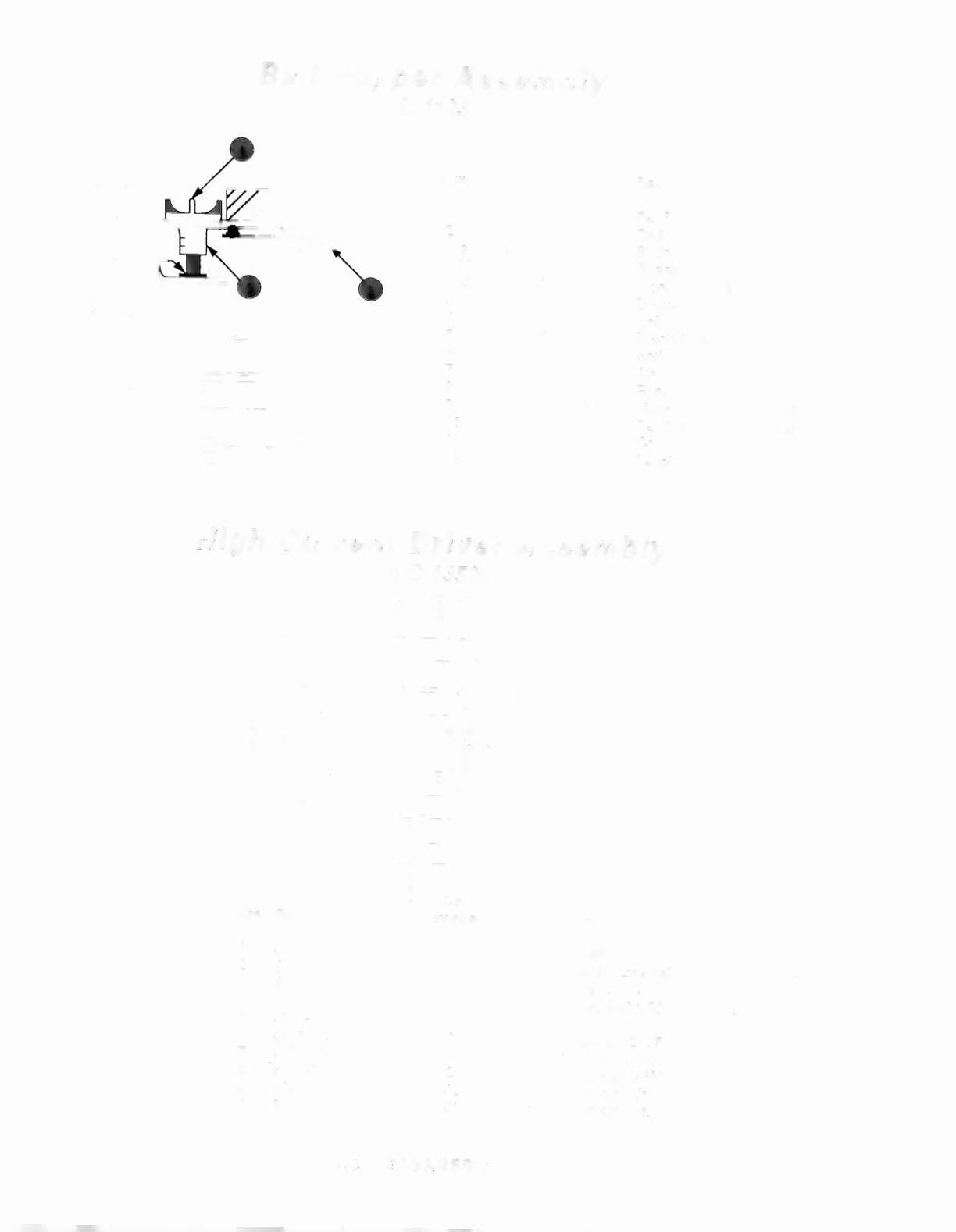

8all Popper Assembly
pin
D-11335-2
Item Part Number
Description
1
03-8053
Ball Popper Cap
2
A-11657
Switch Assembly
a)
A-11658
Switch & Diode Assy
b)
01-3670-1
Switch Plate
c)
4205-01016-14
Wood Screw, #5 x
7/8
3
20-9314-7
Dowel Pin,
3/32
x
112
4
AE-23-800
Coil Assembly
5
A-11721
Bracket Assembly
6
10-135
Spring
7
A-11336
Armature Assembly
8
23-6420
Rubber Grommet
9
4008-01017-05
Mach. Screw, 8-32 x
5/16
10
B-11631
Ball Popper Bracket Assy
11
03-7067
Coil Tubing
12
16-8850-200
Label
High Current Driver Assembly
pin
C-13509
""
0
0
0
0
0
0
•
•
0
0
0
"'
._
~
6
Ckt
7 9
Item Part Number
Symbol
Description
1 5768-12609-00
Bare PC Board
2 4703-00015-00
Lockwasher #4, External
3 4404-01117-00
Nut, 4-40 Hex.
4 4004-01005-06
Mach. Screw, 4-40 x 3(8 •
5 5705-09199-00
Heatsink
6 501 0-09361-00
R1
Resistor, 220Q,
112w, 5%
7 5070-09054-00
01
Diode, 1N4004, 1.0 A.
8 5191-12179-00
Q1
Transistor, TIP 36C PNP
9 5791-10862-05
J2
Connector, 5-pin Hdr
10 5791-10862-06
J1
Connector, 6-pin Hdr
ROLLERGAMES 62
