A-15849-L-1

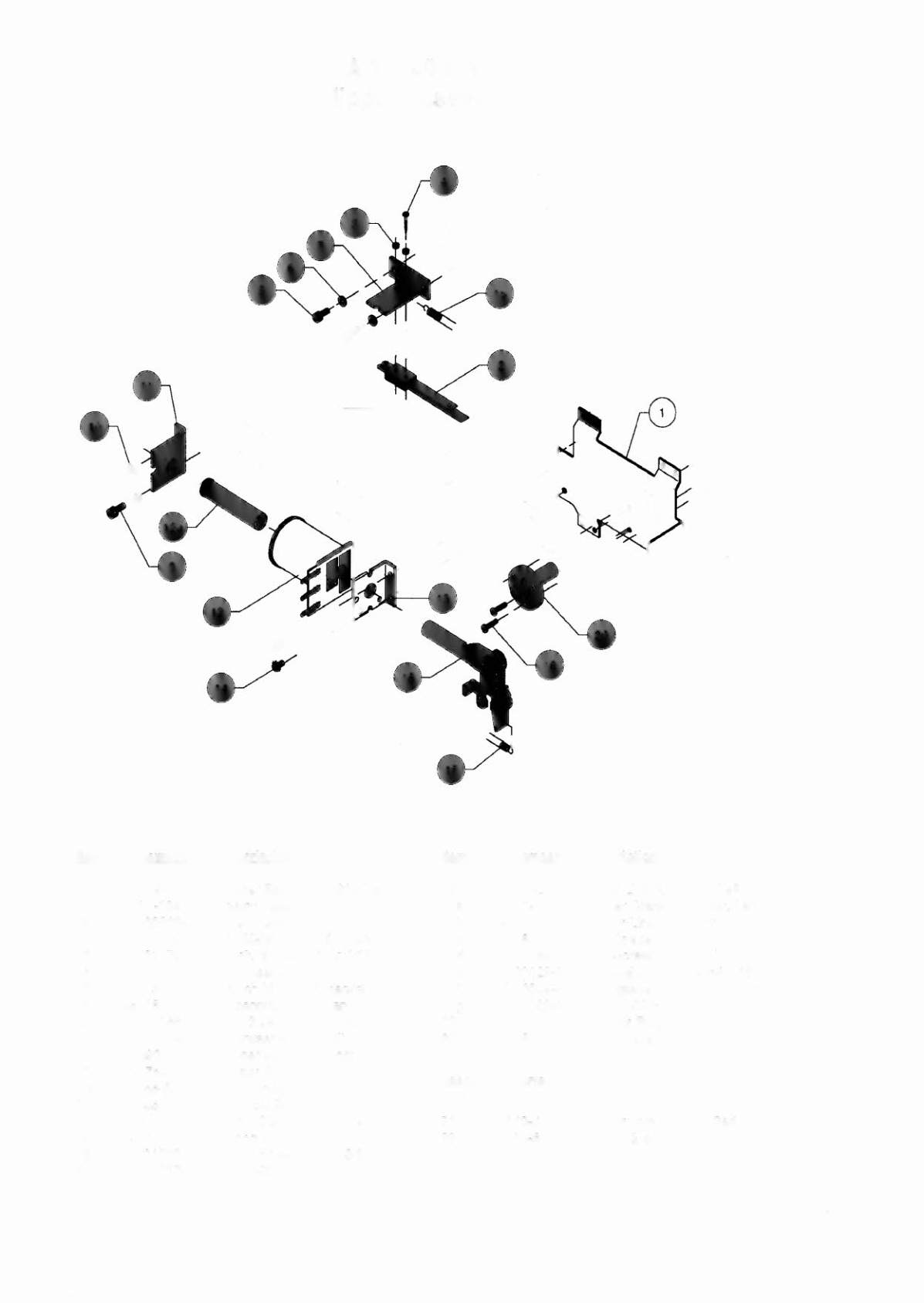

Flipper Assembly
~ Part Nymber
Description
HIm
Part Nymber
Description
1 B-13104-L
Flipper Base Assembly, Left
18 A-15848-L
Crank Link Assembly, Left
2 SW-1A-194
Switch Assembly
a) A-17050-l
Flipper Crank Assembly, left
3 4701-00002-00 lockwasher, #8 Split
b) A-15847
Flipper link Assembly
4 4105-01019-10 Sh. Metal Screw, #5 x 5/B"
c) 02-4676
Link Spacer Bushing
5 4008-01079-05 Mach. Screw, 8-32 x 5/16"
d) 4010-01086-14 Cap Screw, 10-32 x 7/8'
6 4701-00003-00 lockwasher #8 Split
e) 4700-00023-00 Flatwasher, 5/8 x 13/64 x 16ga.
7 01-9375
Switch Mounting Bracket
f) 4701-00004-00 Lockwasher #10 Split
8 20-6516
Speednut, Tinnerman
g) 4410-01132-00 Nut, 10-32 ESN
9 4010-01066-06 Cap Screw, 10-32 x
318"
19 23-6577
Bumper Plug, 5/8"
10 4701-00004-00 lockwasher #10 Split
20 03-7568
Flipper Bushing
11 A-12390
Flipper Stop Assembly
12 Fl-11753
Flipper Coil, Yellow
Associated Parts:
a) 03-7066-5
Coil Tubing
(Not Shown)
13 01-7695
Solenoid Bracket
14 4006-01017-04 Mach. Screw, 6-32 x 1/4"
21 23-6519-4
Flipper Rubber Ring, Red
15 10-364
Spring
22 20-9250-6
Flipper & Shaft
16 4006-01005-06 Mach. Screw, 6-32 x 3/8"
17 4406-01117-00 Nut, 6-32 Hex
