50024-CAB

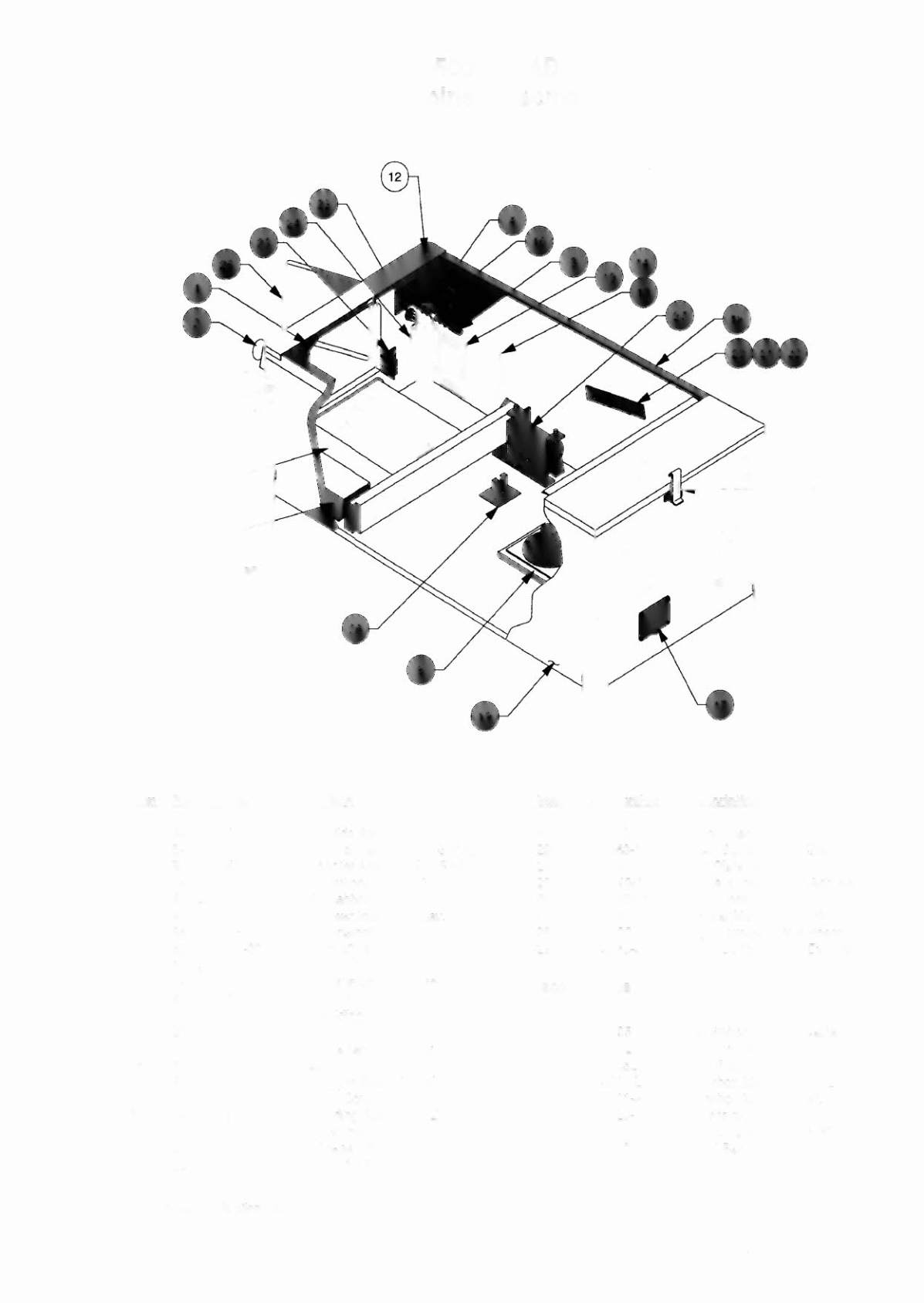

Cabinet Assembly
.!kun
Part Number
Description
.!km
Part Number
Description
1 A-16773-1
Lever Guide Assembly
22 02-4352
Pivot Bushing (2)
2 B-12445-7
Ball Shooter Assy., White Spring
23 20-9663-1
Push Button w/Sw., Start
3 B-12445-4
Ball Shooter Assy., Green Spring
24 01-11400
Leg Plate (4)
4 A-16883-6
Flipper Button, Yellow (2)
25 A-18249-1
Cable & Interlock Switch Assy.
5 A-18531-1
4-8all Cashbox Assembly
26 09-61000-1
Coin Door-USA
6 A-17540
Univ. Power Interface Assy.
27 A-19169
Shaker Motor Assembly
7 5610-13953-00 WPC Transformer
28 A-19720
High Current Driver Board
8 5555-12929-00 Speaker, 4n, 6', 25w
29 20-9663-9
Push Button
w/Sw.,
Extra Ball
9 20-9347
Toggle Latch
10 A-1705H
Coin Door Interface Board
• Miscellaneous
11 A-19514-5
Leg Assembly, Blue
12 A-16055
Front Molding Assembly
13 20-6502-A
Plum Bob
A-17195
Tilt Switch Assy.
w/Cable
14 A-15361
Tilt Mechanism Assembly
A-19562.1
Stay Arm Assembly
15
*
Cordset
01-12352
Clip Bracket
16 A-17316
Opto Flipper Assembly (2)
01-9011-L
Backbox Mtg. Bracket, Left
17 01-10714
Line Cord Cover
01-9011-R
Backbox Mtg. Bracket, Right
18 A-12359-3
Side Molding Assembly (2)
08-7028-1
Playfield Glass
19 11-1212
Wood Cabinet
08-7377
Leg Leveler Adjuster, 3"
20 01-11408
Plate Spacer (2)
20-6500
Steel Ball,
1-1/16" (4)
21 02-4329-2
Pivot Nut,
11116" (4)
*
See Application Chart p.2-41.
2-3
