50024-88

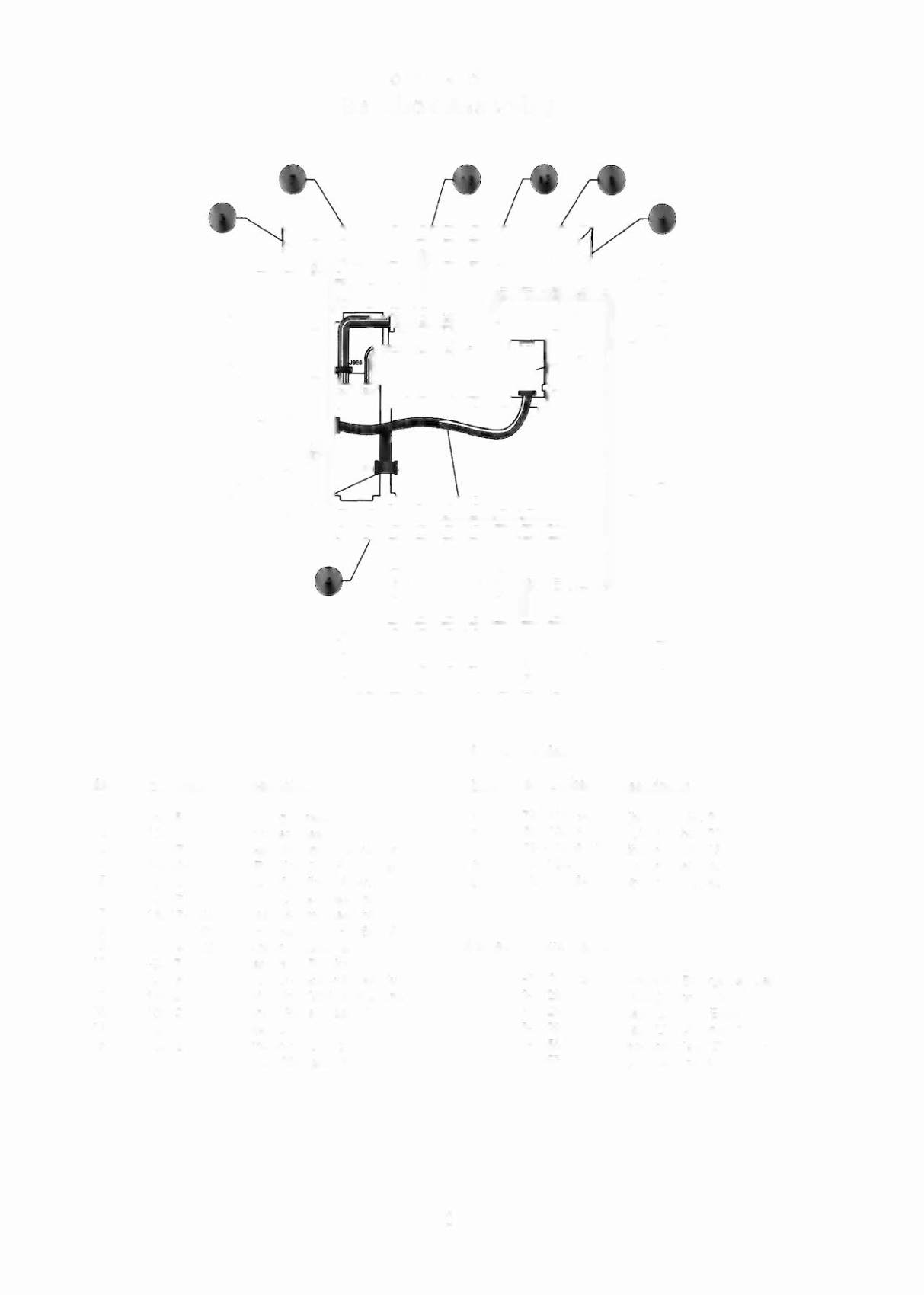

Backbox Assembly
1--------1
11
• Ribbon Cables
IWn
Part Number
Description
Jtlm
Part Number
Description
1
01-6645
Venting Screen
17 5795-12653-03 Ribbon Cable, 3"
2 B-10686-1
Knocker Assembly
18 5795-13018-01 Ribbon Cable, 23.5'
3 A-12497
Insert Bd.Hinge Assy., Upr.
19 5795-10938-15 Ribbon Cable, 15"
4 A-14092-5
WPC Mounting Plate Assy.
20 5795-12838-30 Ribbon Cable, 30'
5 A-12498
Insert Bd. Hinge Assy., Lwr.
21 5795-10938-32 Ribbon Cable, 32"
6 A-12697-3
Power Driver Assembly
7 A-16917-50024 Sound Board Assembly
8 A-17651-50024 WPC Security CPU Board
9 A-17814-50024 Backbox, Screened
• Miscellaneous Parts
10 01-9047
Insert Stop Bracket
11 A-19056
Speaker/Display Assembly
A-85S2-S0024 Tempered Backglass Assy.
12 A-14039.1
Dot Matrix Controller Board
03-8228-2
Glass Channel Top (1)
13 A-13379
Lock & Plate Assembly
03-8228-3
Glass Channel Edge (2)
14 S0024-IN
Insert Board
03-8229-1
Glass Lift Channel (1)
15 A-15472-1
Fliptronic " Board
08-7456
Backbox Glass:27x18-7/8"
16 A-16100-2
Aux. PCB Assembly
31-1357-50024 Screened Translight
2-2
