NOTES:
1. Heat sink compound must be applied between transistor and heat sink.
2. Observe index mark on integrated circuit, polarity of capacitors and diodes,
and position of transistors.

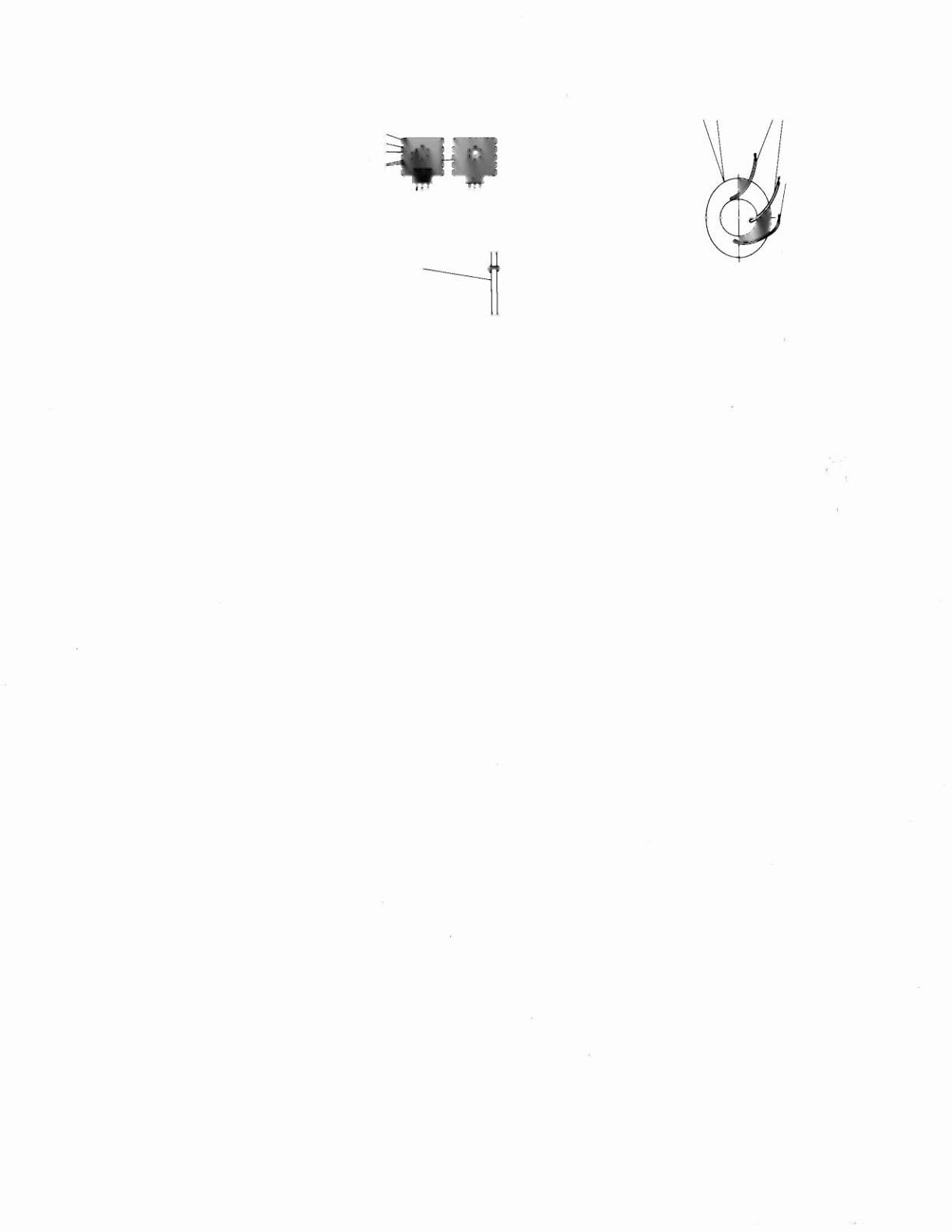

3. The view of Q5 and its related heat sink and hardware is from the bottom of
the heat sink, to clarify installation.
Power Supply
pin 0-8345-541
Item Part No.
Ckt Designation
Description
Item Part No.
Ckt Designation
Description
1 5765-09466-01
Bare P. C. Board
28 5164-09057-00 01
Transistor, SDS201, NPN
2 5013-09426-00 R7
Resistor, 2.15K, 1%,
29 5164-09056-00 04
Transistor, MPSD02, NPN
1/4w, Metal Film
30 5194-09058-00 03
Transistor, SDS202, PNP
3 5013-09427-00 R8
Resistor, 4.99K, 1%,
31 5194-09055-00 02
Transistor, MPSD52, PNP
1/4w, Metal Film
32 5162-09425-00 05
Transistor, 2N6057, NPN
4 5010-09428-00 R11
Resistor, 1.5K, 2%,
33 5705-09431-00
Heak Sink
1/4w, Carbon Film
34 5791-09074-00 3J6
Connector, 15 pin (Hdr)
5 5010-09085-00 R10
Resistor, 1.5K, 5%,1/4w
35 5791-09027 -00 3J3, 3J8
Connector, 9 pin (Hdr)
6 5010-09541-00 R9
Resistor, 2.7K, 2%,1/4w
36 5791-09038-00 3J2
Connector, 6 pin (Hdr)
7 5010-09508-00 R12
Resistor, 2700, 2%,
37 5791-09067 -00 3J5
Connector, 6 pin (Hdr)
1/4w, Carbon Film
38 5791-09434-00 3J4
Connector, 12 pin (Hdr)
8 5012-09429-00 R13
Resistor, 0.120, 5%,5w
39 5791-09435-00 3J7
Connector, 3 pin (Hdr)
9 5010-09536-00 R1, R4
Resistor, 39K, 5%,1w
40 H-11065
3J9
Cable/Connector Assembly
10 5010-09061-00 R2,R5
Resistor, 6800, 2w
a) 5791-09400-00
Connector shell
11 5010-09069-00 R3,R6
Resistor, 330K, 5%,1/.2w
b) 5820-09080-00
Connector pin
12 5040-09419-00 C10
Capacitor, 18,000 mid, electr.,
41 5791-09068-00 3J1
Connector, 12 pin (Hdr)
20V,
axial
42 5321-09178-00
Fuseholder
13 5040-09420-00 C9
Capacitor, 1000 mid, electr.,
43 5731-09128-00 F2
Fuse, 2.5A, 250v, SoB
25V,
axial or radial
44 5731-09071-00 F3
Fuse, 8A, 32v
14 5040-09423-00 C12
Capacitor, 330 mid, electr ,
45 5731-09128-00 F4
Fuse, 2.5A, 250v, SoB
10V,radial
46 5731-08761-00 F1
Fuse, 1/4A, 250v, SoB
15 5043-9065-00
C15
Capacitor, 470 pld
47 5017-09064-00
VR1
Varistor
16 5040-9053-00
C1,C3
Capacitor, 100 mid, electr.,
48 5700-09445-00
Socket
150V
49 5701-09652-00
Mica Insulator
17 5040-09070-00 C5
Capacitor, 100 mid, electr.,
50 5580-09555-00 K1
Relay,
24VDC,
10A, DPDT
100V,
axial or radial
51 5824-09428-00 TP1 - TP4
Terminal, #1502-1 (Test Post)
18 5043-09072-00 C2,C4
Capacitor, 0.1 mid,
500V,
disc
52 5100-09418-00 BR1
Bridge Rectilier, 35A,
100V
19 5043-09446-00 C14
Capacitor, 0.1 mid,
50V,
disc
53 5705-09042-00
Heat Sink
20 5070-06258-00 D1, D2, D5, D6
Diode, 1N4001
54 03-7947
Tie Wrap
21 5070-09054-00 03,04
Diode, 1N4004
55 4005-01016-00
Mach. Screw, 5-40 x 7/16, RH
22 5075-09059-00 ZR1, ZR3
Zener, 1N5990, 3.9v, 5%
56 4700-00004-00
Flatwasher, 0.146 x 3/8,21 Ga.
23 5075-09060-00 ZR2,ZR4
Zener, 1N4764, 100v, 5%
57 4701-00023-00
Lockwasher, #5, split
24 5460-09424-00 IC1
IC,
Volt.
Reg., MC1723C
58 4405-01117 -00
Hex Nut, 5-40
25 5043-09443-00 C6
Capacitor, 0.1 mid, 200v, disc
59 20-9229
Heat sink Thermal Compound
26 5040-09421-00 C7
Capacitor, 100 mid, 25v, radial
60 HW-30118-4
Lead wire, 18 AWG, 3"
27 5040-09422-00 C8
Capacitor, 47 mid, 50v, radial
61 5731-01003-00 F6, F5
Fuse, 7A,
250V,
SoB
