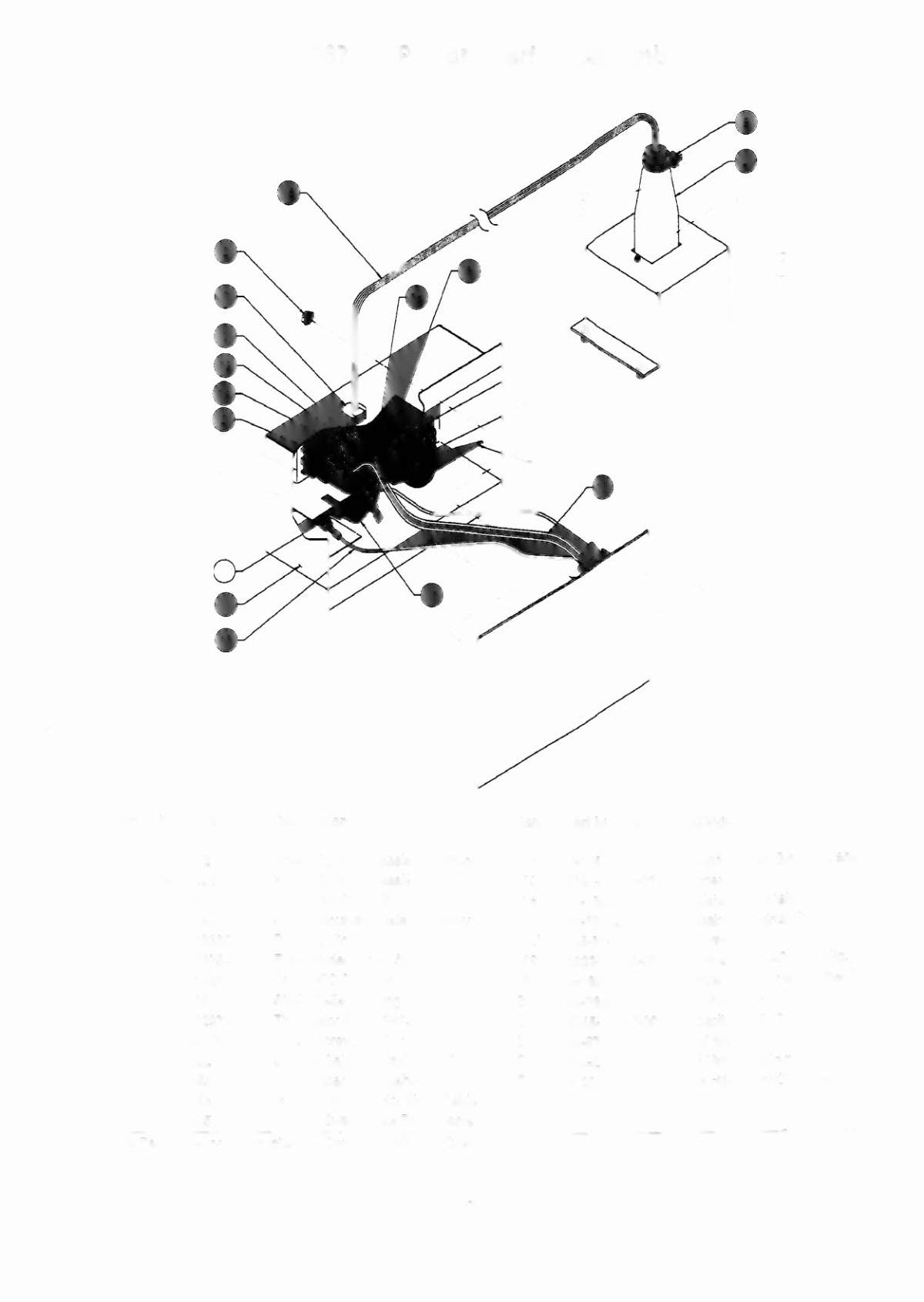

A-20B71 Power Interface Assembly
o
Item Part Number
Description
Item Part Number
Description
A A-20872
Power Control Chassis Assembly
14)
H-17542
Ground Jumper GmNel
Cable
1)
04-10292
Power Control Chassis Box
15)
5797-13940-01 Jumper Cable
2)
4406-01128-00 Nut #6-32 KEPS (3)
16)
01-10623
Insulator, Thermistor
3)
01-12294
Switch Mounting Plate Assembly
17)
01-12299
Insulator, Terminal Strip
4)
5642-13935-00 Power Switch
18)
RM-21-06
#18 Vinyl Fgls
5)
5733-14734-00 Fuse Holder Panel (5x20mm)
19)
5822-13865-00 Terminal Strip 3-CKT 2-Mtg.
6)
5851-13867-00 Outlet-IEC Conn. 237 Socket
20)
H-18050
Jumper Cable, Transformer Prog
7)
03-8712
Strain Relief Bushing
B 03-7933
Ty-Wrap Nylon
8)
5016-12978-00 Thermistor 8A., 2.5R25
C 5045-14007-00 Capacitor, 1J.lF275v
9)
4006-01003-10 Mach. Screw, #6-32 x
5/8"
0
23-6776-4
Heat Shrink
10)
H-17992
Jumper Cable Neutral
Sw/1
FC
E
RM-21-Q6
#18 Vinyl Sleeving
11 )
H-17543
Hot Jumper Black Cable
F
A-20873
Line Filter Entry Chassis
12)
H-17546
Jumper Interface Hot Black Cable
13)
H-17545
Jumper Switch/Fuse Black Cable
See Page 2-54 for Power Interface/Cordset Application Chart.
2-37
