8-11304

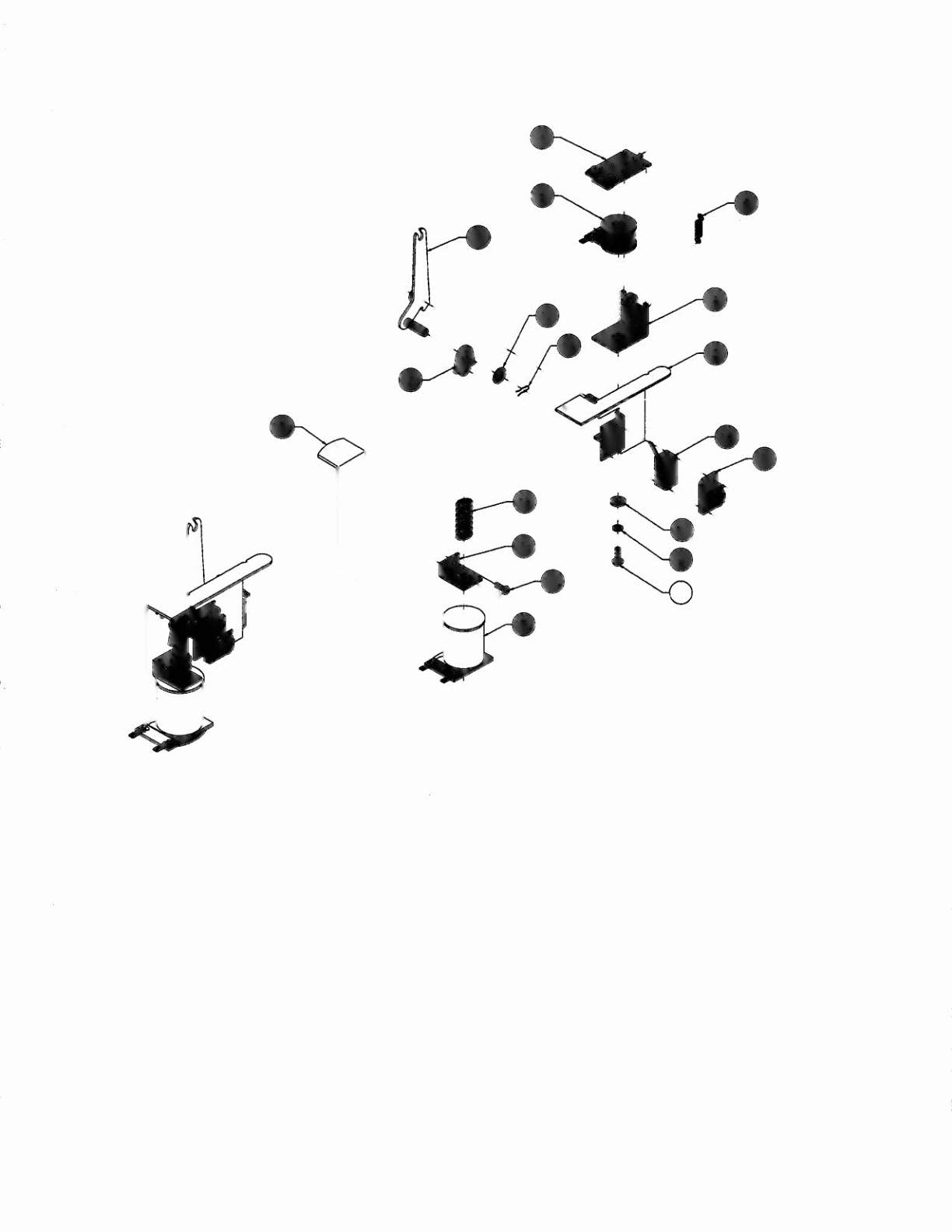

Ramp Lifting Mechanism Assembly
,
,
,
,
, ,
,
, ,
L,
"
Item Part Number
Description
Item Part Number
Description
1 04-10071.1
Lift Crank Assembly
14 12-6227
Hairpin Clip
2 04-10067
Lift Mech. Bracket Assembly
15 5070-09054-00 Diode 1N4001, 1.0A.
3 A-11139
Armature Assembly
16 5647-12001-00 Micro-Switch
4 A-6892
Frame
&
Eyelet Assembly
5 SM1-26-600
Coil Assembly
6 10-363
Extension Spring
7 A-743S-1
Terminal Strip Assembly
Associated Assemblies:
S 400S-01021-07
Mach. Screw, S-32 x
7/16"
9 4701-00003-00
Lockwasher #S Split
17 B-9362-L-2
Coil
&
Bracket Assembly
10 4700-000S9-00
Flat Washer,11/64x7/16x16ga.
a) A-17S0S
Bracket
&
Stop Assembly
11 4004-01003-10
Mach. Screw, 4-40 x SIS"
b) 01-S-50S-S
Coil Retaining Bracket
12 4700-00073-00
Flat Washer,
9/32
x
1/2
x
c) 4006-01017-06 Mach. Screw, 6-32 x 3/S"
13 A-8050
Plunger Assembly
d)
4406-01119-00 Nut, 6-32 ESN
~
a) 02-3407
Plunger Coil, 2-3/4"
e) AE-26-1200
Coil Assembly
b) 03-S0S5
Armature Link
f) 03-7066
Coil Tubing
c) 20-8716-5
Roll Pin, 1/S x
7/16"
18 10-12S
Spring
"
2-21
