A-9415-2

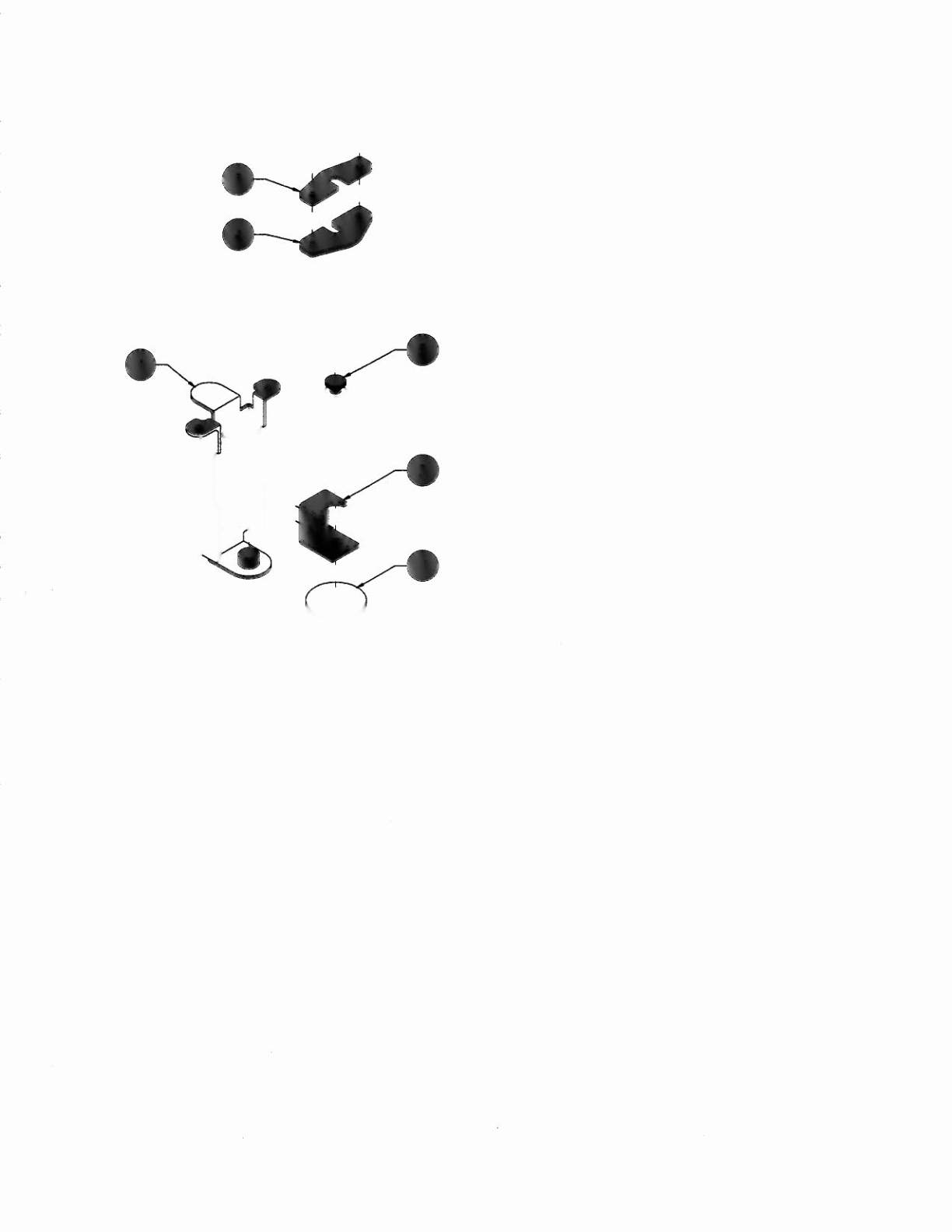

Jet Bumper Coil Assembly
Item Part Number
1 8-7417
2 01-1747
3 01-5492
4 01-5493
5 02-3406-1
6 10-326
7 AE-26-1200
8 4006-01017-04
9 03-7066
Associated Parts:
(Not Shown)
10 B-12030-2
a)
A-16443
b)
01-1168
c)
01-3670
d)
03-7395
e)
4005-01003-12
~ 4405-01117-00
2-19
Description
Bracket & Stop Assembly
Coil Retaining Bracket
Armature Link, Steel
Armature Link, Bakeline
Coil Plunger
Armature Spring
Coil Assembly
Mach. Screw, 6-32 x
1/4"
Coil Tubing
Leaf Switch Assembly
Switch & DiodeAssembly
Switch Mounting Bracket
Switch Plate
Switch Actuator
Mach. Screw, 5-40 x 3/4"
Nut 5-40 Hex.
