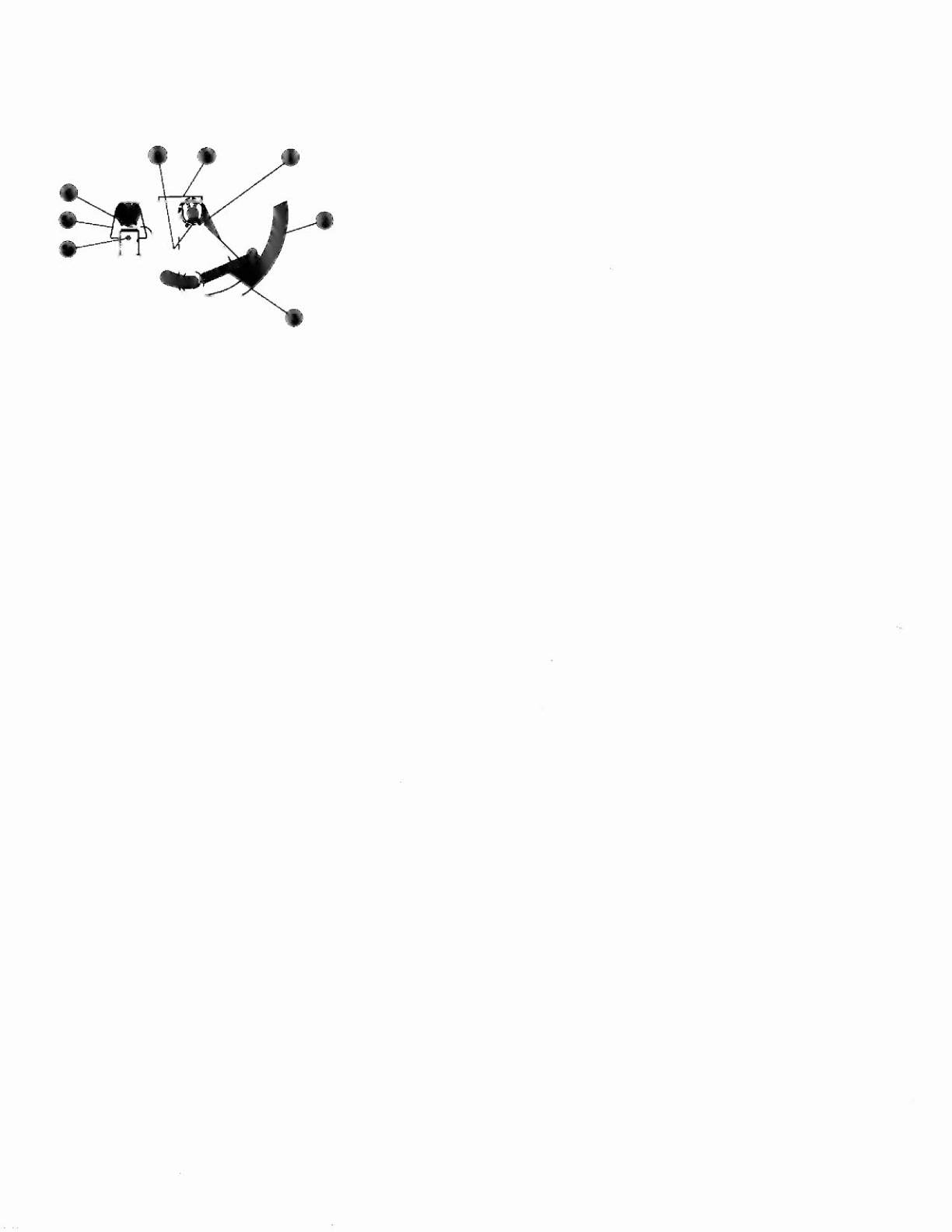

Multi-Ball™ Ejector /
Ball Trough Feeder
pIn
C-8492
Item Part No.
1 12-6227
2 A-8247
3
10-362
4
A-6949-L
5 A-80S0
a)
02-3407
b) 20-8716-5
c)
01-1789
6
7
8
9
12-6227
4700-00030-00
4700-00103-00
A-8268
Description
Clip, Hair Pin
Ball Eject Cam Assembly
Spring
Spring Plate Assembly
Plunger Assembly
Coil Plunger
Roll Pin
Armature Link
Clip, Hair Pin
Washer, 1/2 o.d. x
17/64
i.d. x
15
gao
Washer,
1/2
o.d.
x
.265
i.d.
x
.015
thk.
Mounting Bracket Assembly
Playfield Pivot
&
Hinge Bracket
GRAND LIZARD 42
