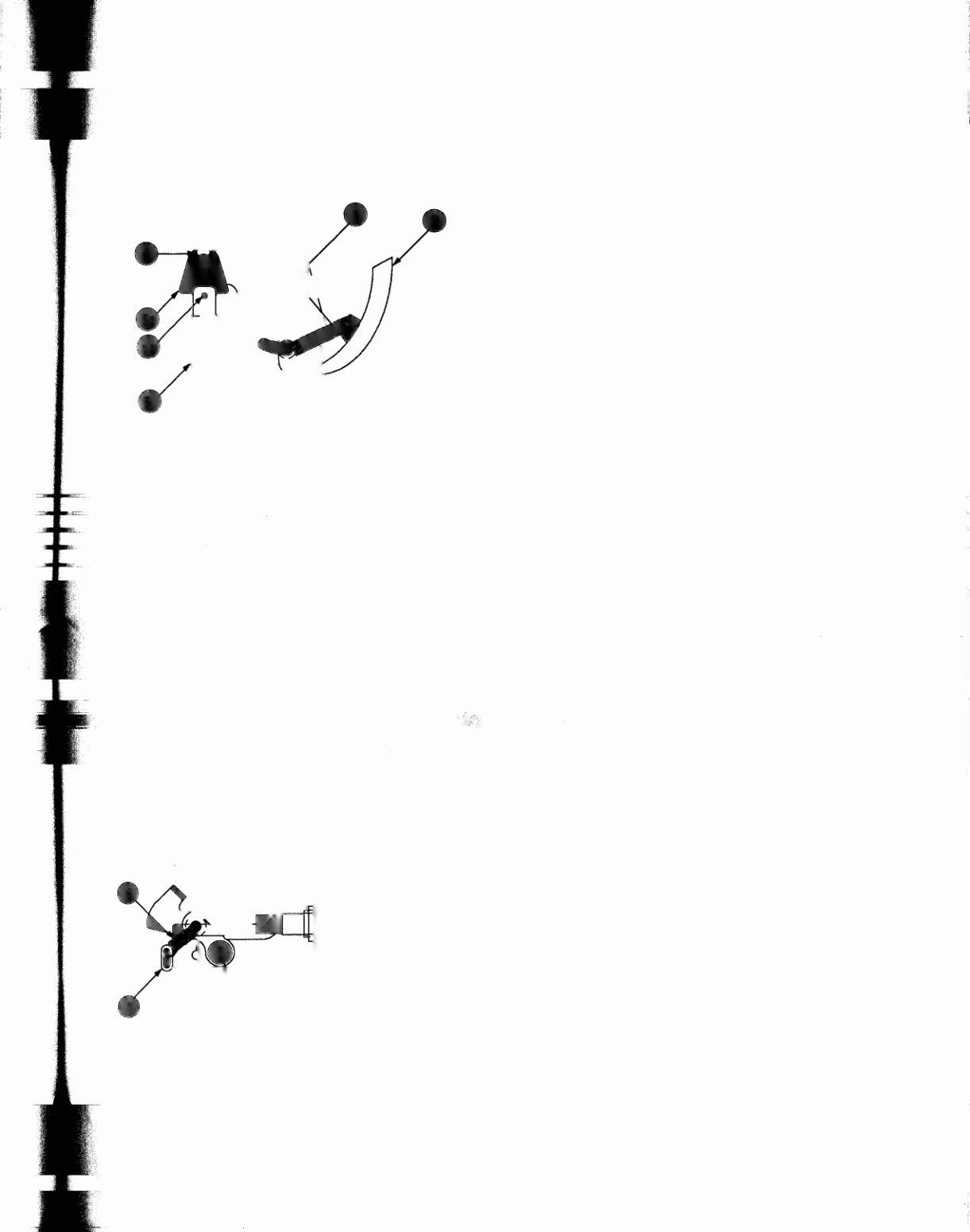

C-9638 Ball Shooter Lane Feeder
Item Part Number
Description
1.
12-6227
Hair Pin Clip
2.
A-8247
Eject Cam Assembly
3.
10-362
Ejector Spring (Plain)
4.
A-6949-L
Spring Plate Assembly
5.
A-8050-1
Coil Plunger Assy, 2-1/8"
a)
02-3407-2
Coil Plunger, 2-1/8"
b)
20-8716-5
Roll Pin, 1/8 x 7/16
c)
03-8085
Armature Link
6.
12-6227
Hair Pin Clip
7.
4700-00030-00
Flatwasher, 17/64 xl /2 x 15ga.
8.
4700-00103-00
Flatwasher, 17/64 xl/2 x 28ga.
9.
A-8268
Mounting Bracket Assembly
Associated Parts
B-9362-L-2
B-7572-1
01-8-508-S
4006-01017-06
4406-01119-00
AE-26-1200
03-7066
Coil & Bracket Assembly
Bracket & Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32 x 3/8
Nut, 6-32 ESN
Coil Assembly
Coil Tubing
A-8039-3 Outhole Kicker Assembly
Itam Part Number
Description
1.
A-6378
Mounting Plate Assembly
2.
A-8335
Coil Plunger Assembly
2
3
a)
02-2364
Coil Plunger
b)
20-8716-5
Roll Pin, 1/8 x 7/16
c)
01-4251
Ball Return Link
ooc:~-a;-3'9'
3.
03-7066
Coil Tubing
-~-
0
4.
A-6889
Kicker Lever Assembly
5.
A-8038
Coil Stop Assembly
0
6.
AE-27-1200
Coil Assembly
7.
03-7176-1
Striker Ring
8.
10-101-4
Spring-Reset
6
9.
20-8712-25
"E" Ring, 1/4" Shaft
10.
4006-01003-03
Mach. Screw, 6-32 x 3/16
GILLIGAN'S ISLAND 2-13
