Maintenance Information
• Ball Shooter Lane Feeder
Figure 5 shows the two main lubrication points of the Ball Shooter Lane Feeder.
The shaded arrows show the directions in which the Ball Shooter Lane Feeder and
other parts of its related assemblies can be adjusted for proper operation. Note that
there are mechanisms quite similar to this Assembly; they have the same
lubrication requirements and adjustment capabilities as the Ball Shooter Lane
Feeder.
LUBE
PCINTS
TOP VIEW

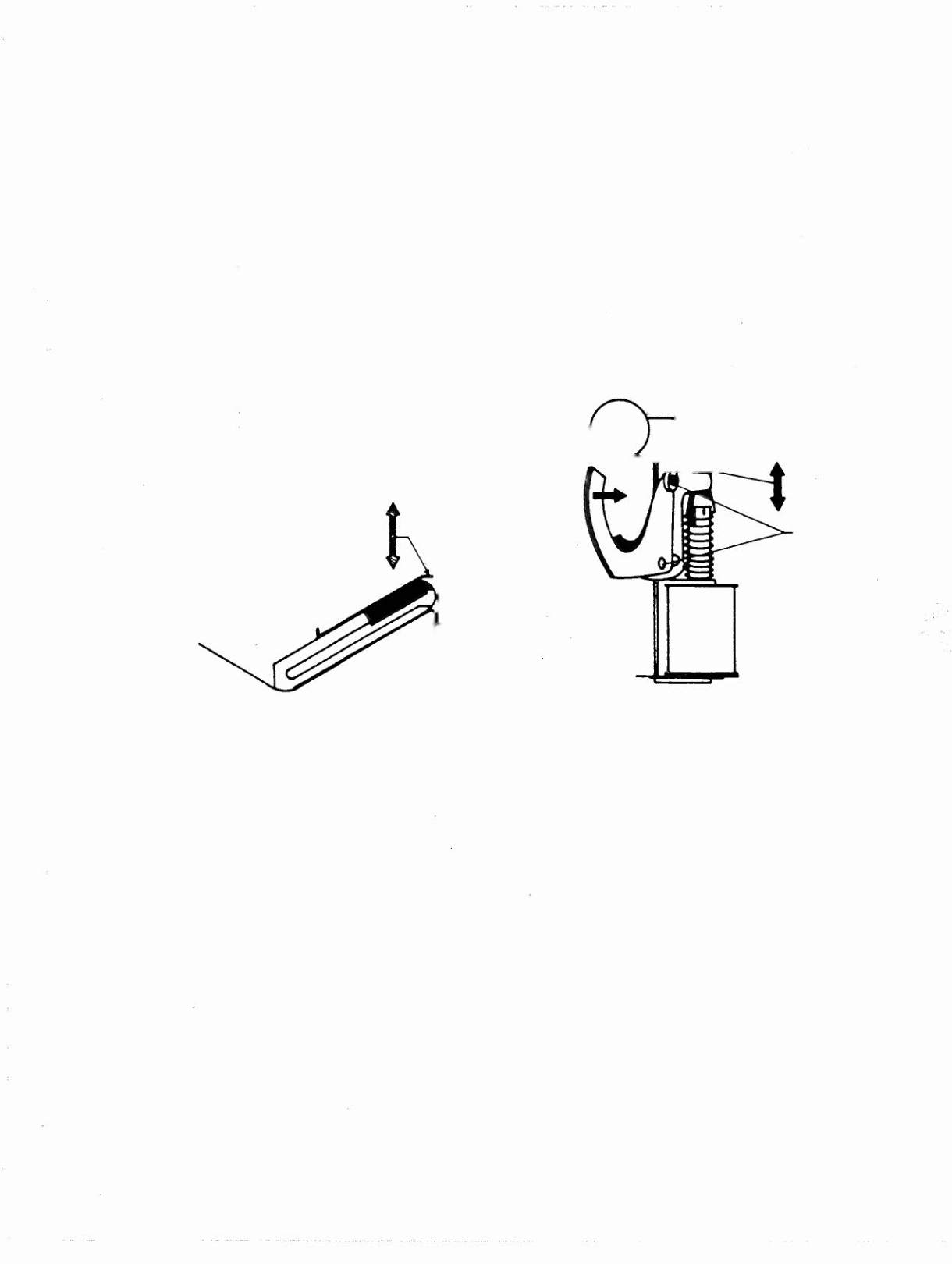

Figure 5. Adjustments and lubrication Points, Shooter Lane Feeder
• Left & Right Kickers
Because of the functional design (arm-actuated via solenoid plunger operation). the
pivot points of the Left and Right Kickers ("Slingshots") all require lubrication as a
regular servicing procedure. Mechanical adjustments are simple and somewhat
similar to the Ball Shooter Lane Feeder. These mechanisms should also be
checked for proper fit (snugly tight) where they attach to the playfield.
Maintenance Information
1-43
