SWITCH CHART
TEST 03
READOUT
#
PLUMB TILT
BALL ROLL TILT
CREDIT BUTTON
LEFT COIN SWITCH
CENTER COIN SWITCH
RIGHT COIN SWITCH
SLAM TILT
NOT USED
TOP LEFT STAND UP
TOP "A" ROLLOVER
"F" DROP TARGET
TOP RIGHT STAND UP
TOP RIGHT ADVANCE BONUS
TOP RIGHT SPOT "DISCO"
BULL'S-EYE TARGET
CENTER STAND UP
RIGHT JET BUMPER
RIGHT SIDE STAND UP
RIGHT OUTSIDE ROLLOVER
"E" DROP TARGET
RIGHT KICKER
OUTHOLE
LEFT KICKER
LEFT INSIDE_j{OLLOVER
LEFT OUTSIDE ROLLOVER
SPOT "A" OR "B" ROLLOVER
TOP "B" ROLLOVER
RIGHT INSIDE ROLLOVER
"V" DROP TARGET
PLA YFIELD TILT
NOT USED
NOT USED
LEFT JET BUMPER
TOP LEFT SPOT "DISCO"
TURN AROUND SWITCH
NOT USED.
NOT USED
"E" DROP TARGET
"R" DROP TARGET
"ER" STAND UP
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
*40.
•
~
38 39
t
I
*NOT USED ON PROTOTYPE GAMES.
Figure
7.

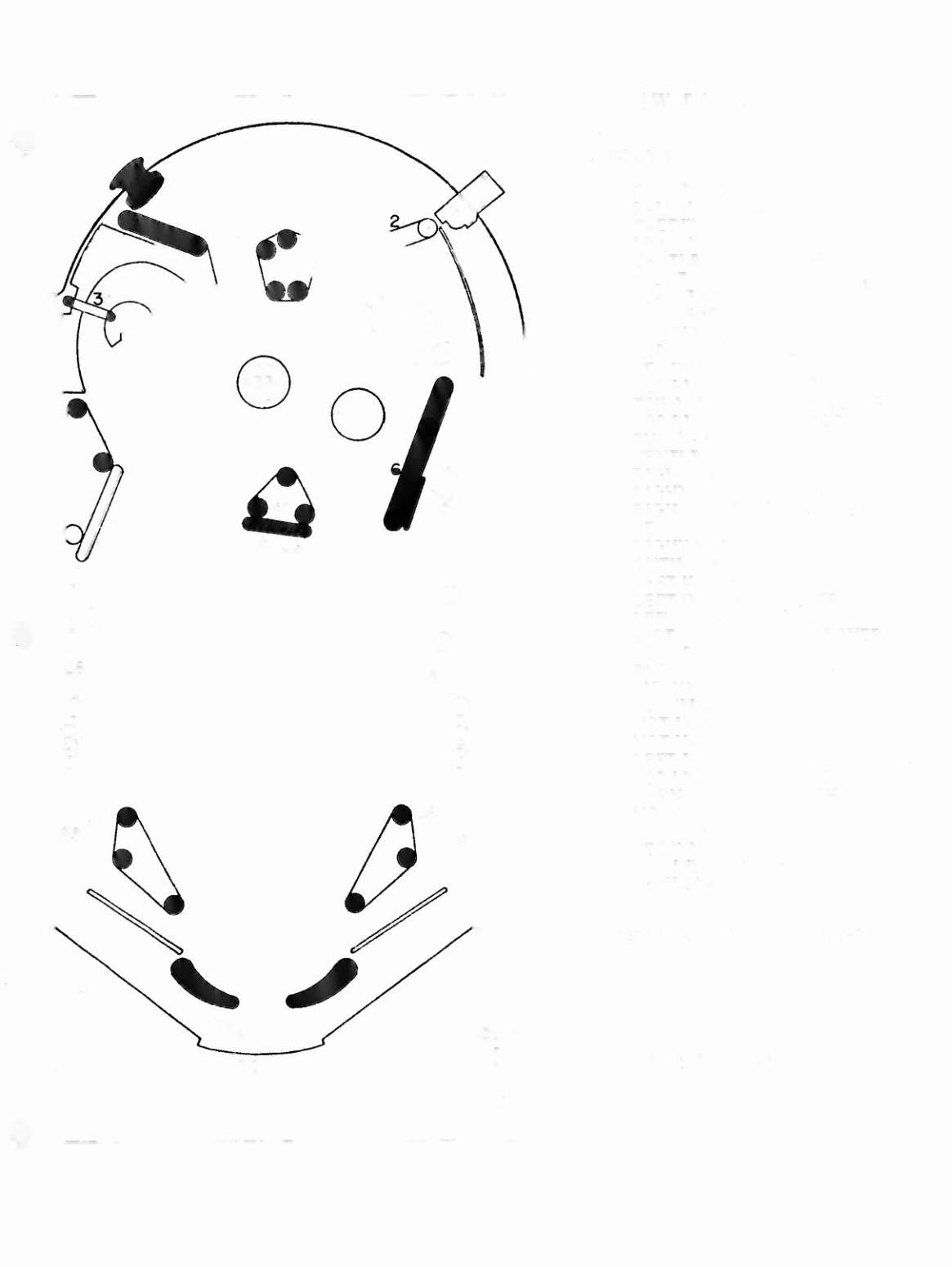

Location oj Playfield Switches
