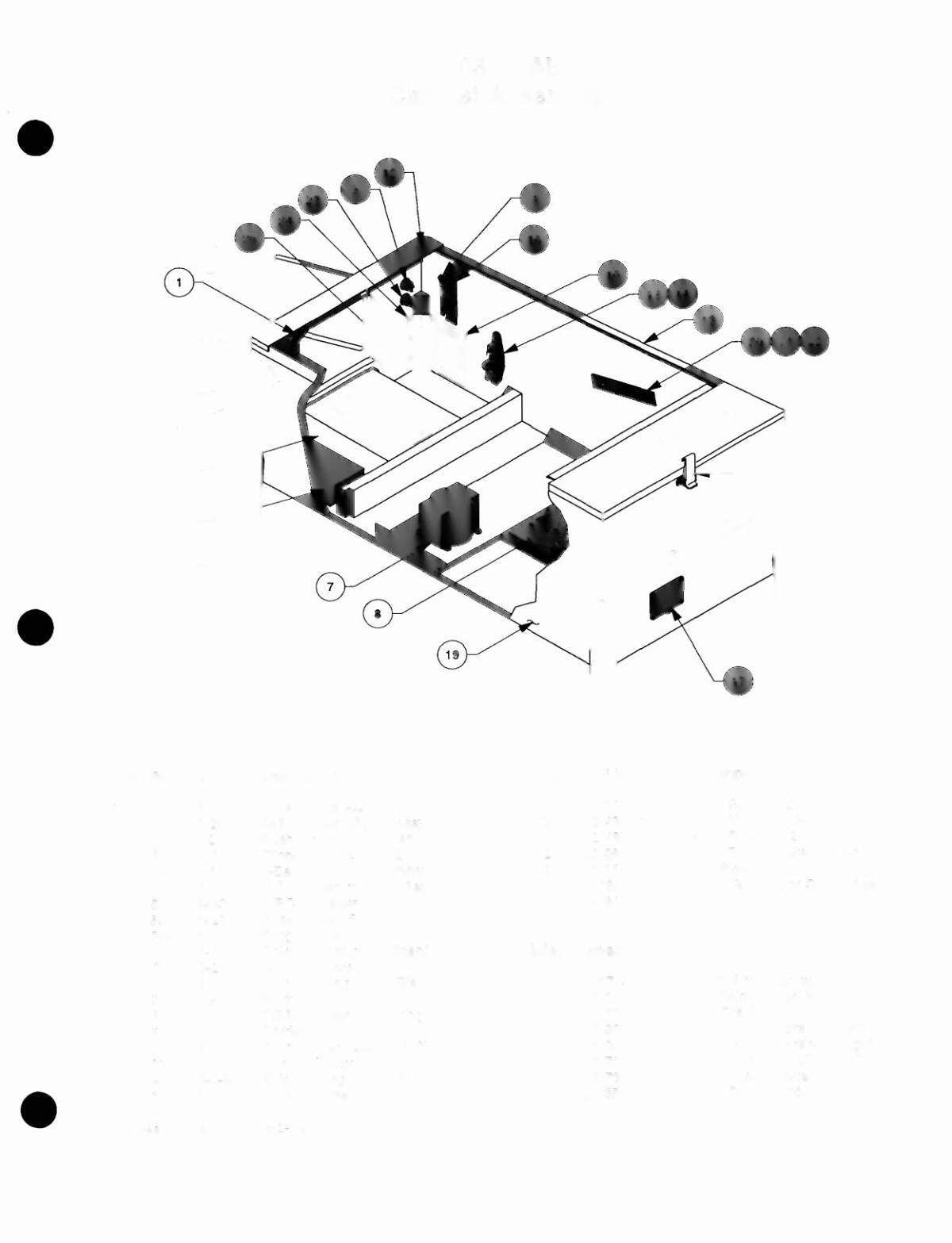

Cabinet Assembly
•
•
Item Part No.
Description
Item Part No.
Description
1.
A-16773
Lever Guide Assembly
20.
01-11408
Plate Spacer (2)
2.
A-17730-2
Ball Shooter w/Knob Assy.
21.
02-4329-1
Pivot Nut,
7/8" (4)
3.
20-9663-2
Push Button
w/Sw.,Start
22.
02-4352
Pivot Bushing (2)
4.
A-16883-4
Flipper Button, Red (2)
23.
20-9663-18
Push Button
w/Sw.,
Green
5.
A-17900-1
5-Ball Cashbox Assembly
24.
01-11400
Leg Plate (4)
6.
A-17540
Univ. Power Interface Assy.
25.
A-18249-1
Cable & Interlock Switch Assy.
7.
5610-13953-00 WPC Transformer
26.
09-61000-1
Coin Door-USA
8.
5555-12929-00 Speaker, 4f.!, 6", 25w
9.
20-9347
Toggle Latch
10.
A-17051-1
Coin Door Interface Board
• Miscellaneous
11.
C-10843-2
Leg Assembly
12.
A-19123
Front Molding Assy., Black
A-17195
Tilt Switch Assy.
w/Cable
13.
20-6502-A
Plum Bob
01-10797
Playfield Support Bar, 18"
14.
A-15361
Tilt Mechanism Assembly
01-12352
Clip Bracket
15.
*
Cordset
01-9011-L
Backbox
Mtg.
Bracket, Left
16.
A-17316
Opto Flipper Assembly (2)
01-9011-R
Backbox Mtg. Bracket, Right
17.
01-10714
Line Cord Cover
08-7028-T
Tempered Plfd. Glass: 21 "x43"
18.
A-12359-4-B Side Molding Assembly (2)
08-7377
Leg Leveler Adjuster, 3"
•
19.
11-1213
Wood Cabinet
20-6500
Steel Ball,
1-1/16" (4)
*
