RAISING THE PlA YFIElD
6.
!
CAUTION
Do not raise the playfield straight up! This game uses a slide assembly to raise and lower the
playfield.

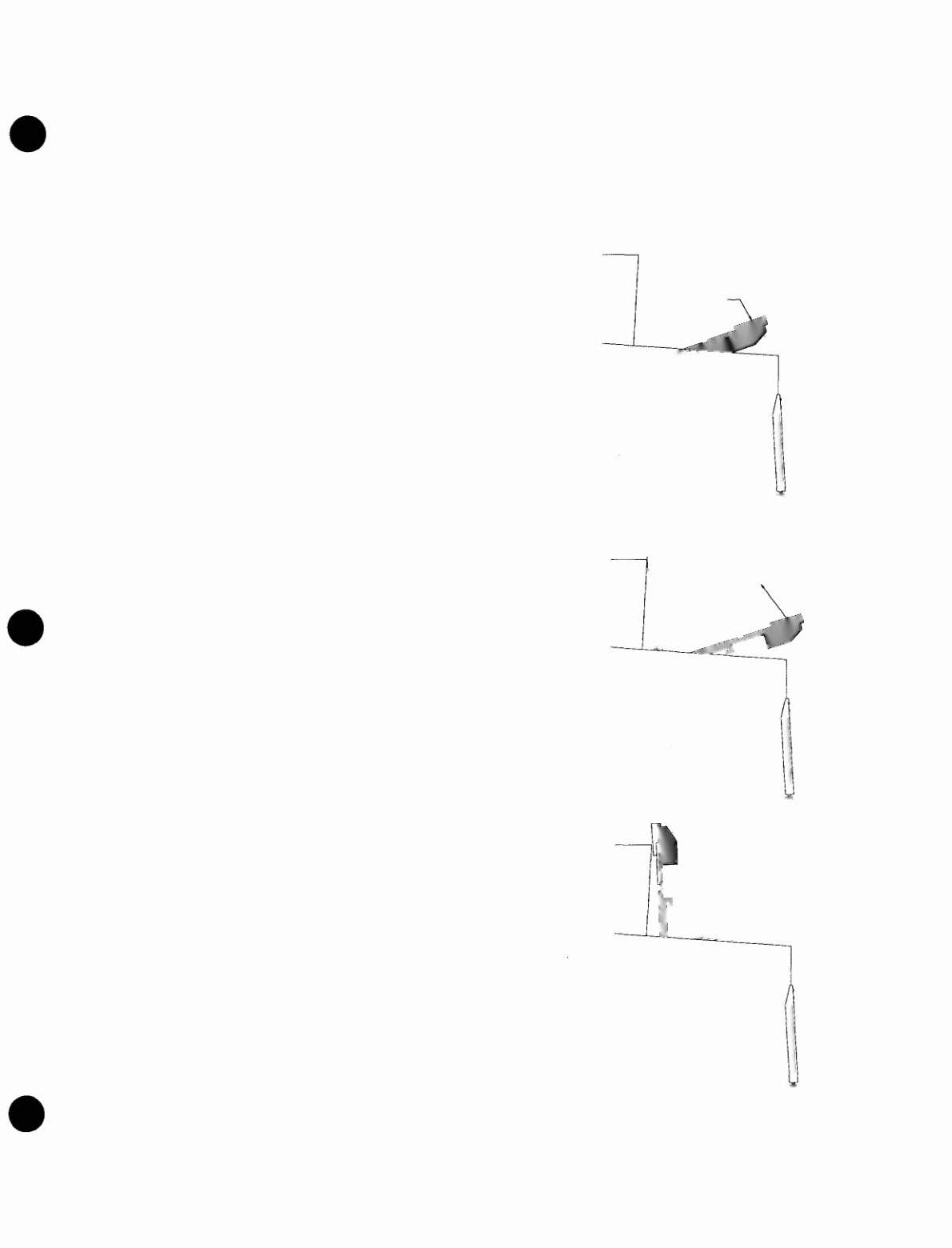

To Raise Playfield:
1. Grasp bottom arch and carefully lift up playfield
only high enough to clear safety brackets. Rear
guide legs should not hit wood guide rails or be
used to slide out playfield.
2. Pull the playfield out toward you until it stops (rest
position) and raise it approximately 3" .
Be sure playfield is in locked
posttlon
and
does not slide back into the cabinet. If it
does, repeat Step 2 before proceeding to Step
3.
3. Rotate playfield to upright service position (lean
on backbox) by pulling toward you and up.
Listen for the sound of a click; this insures
locking and pivoting sequence.
To Lower Playfield:
4. Rotate the playfield to the rest position,
This
unlocks the pivoting sequence.
5. Push back playfield into cabinet and into playing
position .
Rear Guide Leg
(2 used)
Slide Mechanism
(2 used)
1-5
Wood Guide Rail
(2 used)
Bottom Arch
,
