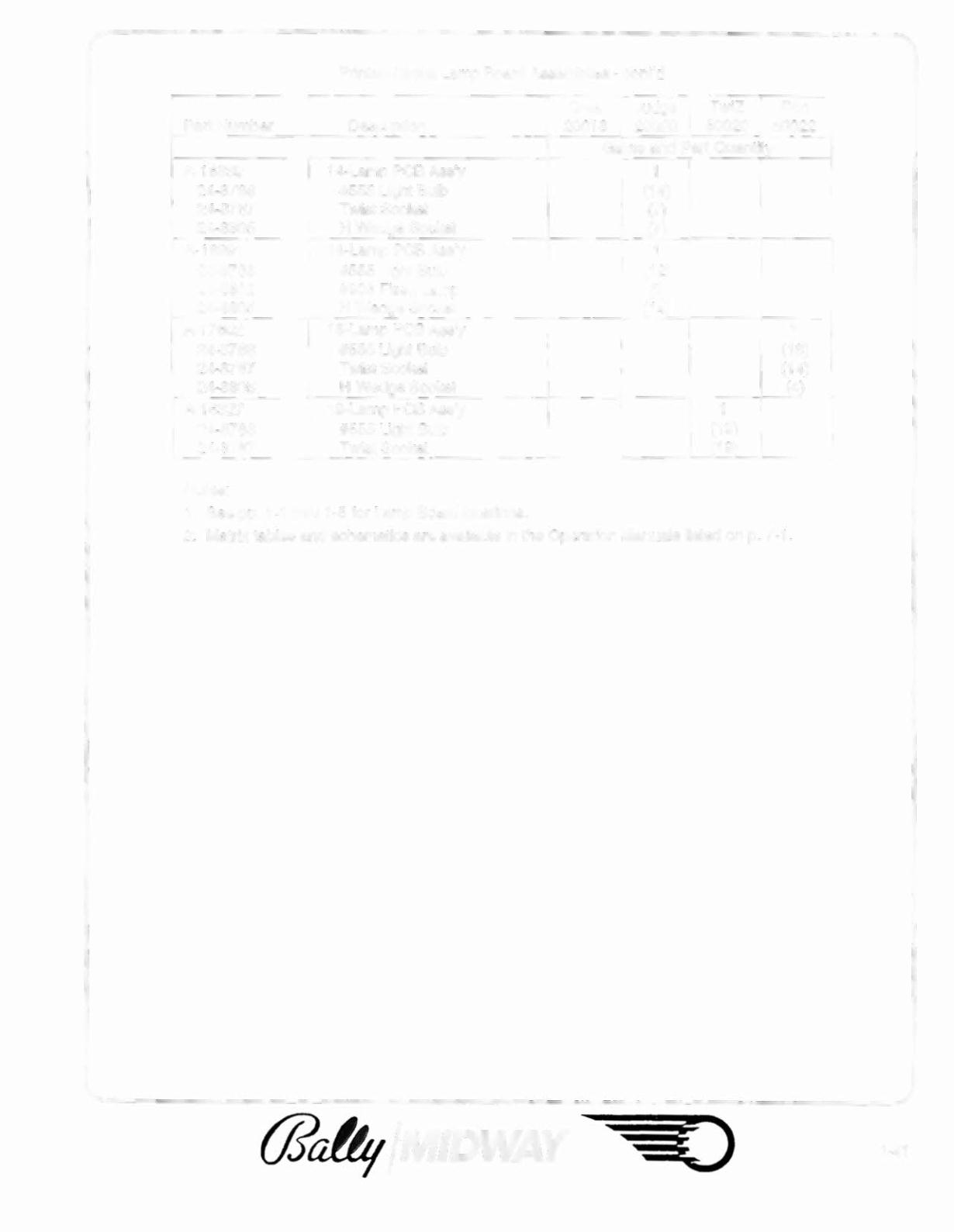

Page 91 - BallyMidway GREY Parts Catalog 16-9562-A

Printed Circuit Lamp Board Assemblies - cont'd
Crea Judge TwiZ Pop
Part Number Description 20018 20020 50020 50022
Game and Part Quantity
A-16839 14-Lamp PCB Ass'y 1
24-8768 #555 Ught Bulb (14)
24-8767 Twist Socket (7)
24-8805 H Wedge Socket (7)
A-16891 14-Lamp PCB Ass'y 1
24-8768 #555 Ught Bulb (12)
24-8802 #906 Flash Lamp (2)
24-8805 H Wedge Socket (14)
A-H602 18-Lamp PCB Ass'y 1
24-8768 #555 Light Bulb (18)
24-8767 Twist Socket (14)
24-8805 H Wedge Socket (4)
A-16327 19-Lamp PCB Ass'y 1
24-8768 #555 Ught Bulb (19)
24-8767 Twist Socket (19)
Notes:
1. See pp. 1-1 thru 1-5 for Lamp Board locations.
2. Matrix tables and schematics are available in the Operation Manuals listed on p. 7-1.
(jJai!fL; /MIDWAY 1·41
