Page 394 - BallyMidway GREY Parts Catalog 16-9562-A

Item Part Number Description Item Part Number Description
Ball Eject Assemblies - cont'd

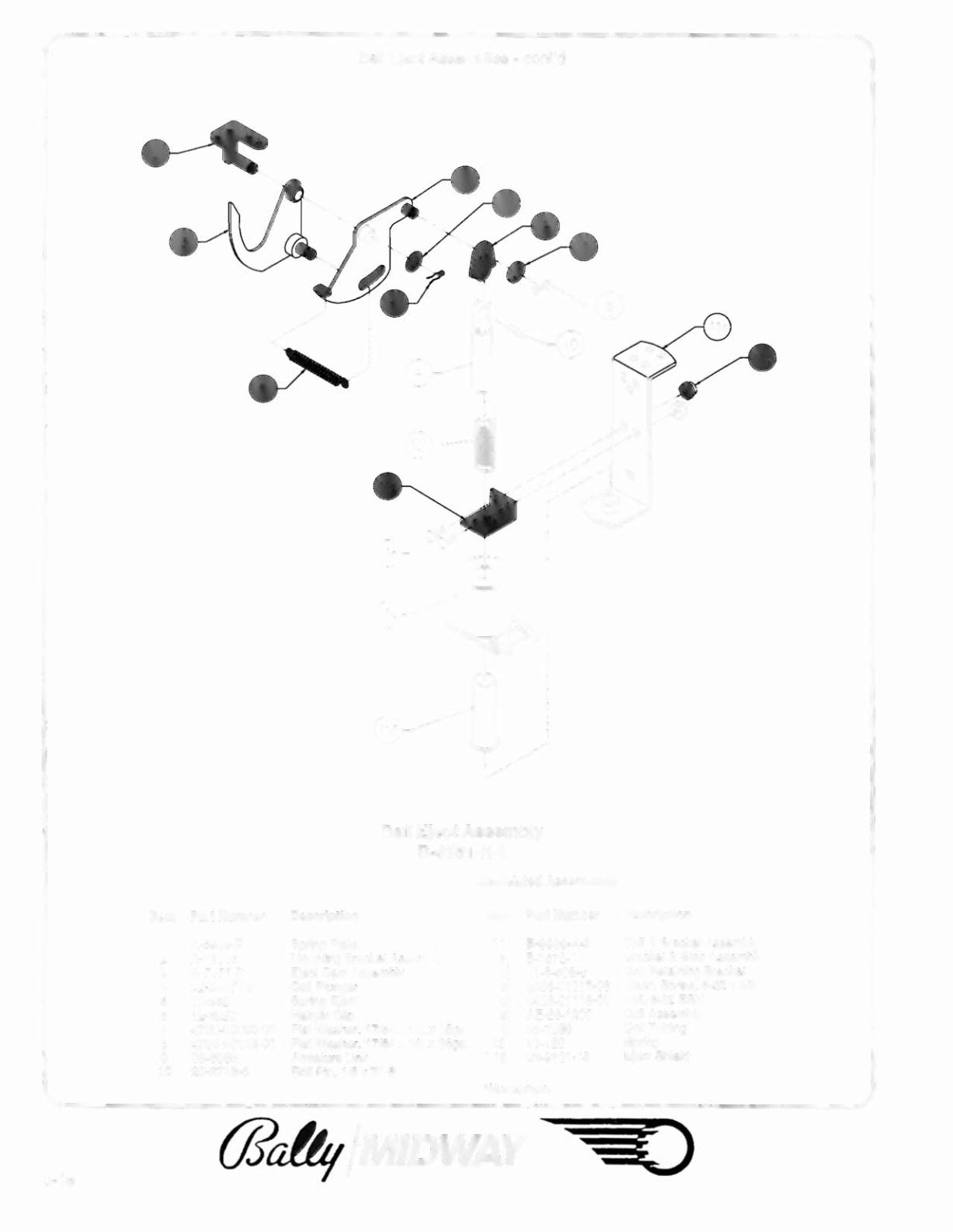

Ball Eject Assembly
8-9361-R-1
AssociatedAssemblies:
1 A·6949·R Spring Plate 11 B·9362·R-3 Coii & Bracket Assembly
2 A-18146 Mounting Bracket Assembly a) 8-7572-1 Bracket & Stop Assembly
3 A-7471-R Eject Cam Assembly b) 01-8-508-S Coil Retaining Bracket
4 02·3407-02 Coii Plunger c) 4006-01017-06 Mach. Screw, 6-32 x 3/8"
5 10-362 Spring Eject d) 4406-01119-00 Nut, 6-32 ESN
6 12-6227 Hairpin Clip e) AE-26-1200 Coil Assembly
7 4700-00030-00 Flat Washer, 17/64 x 1/2 x 15ga. f) 03-7066 Coif Tubing
8 4700-00103-00 Flat Washer, 17/64 x 112 x 28ga. 12 10-128 Spring
9 03-8085 Armature Link '13 03-9101-13 Eject Shield
10 20-8716-5 Roll Pin, 118x 7/16"
'Not shown.
