INDIANAPOLIS 500 (50026)
Ramp Assemblies

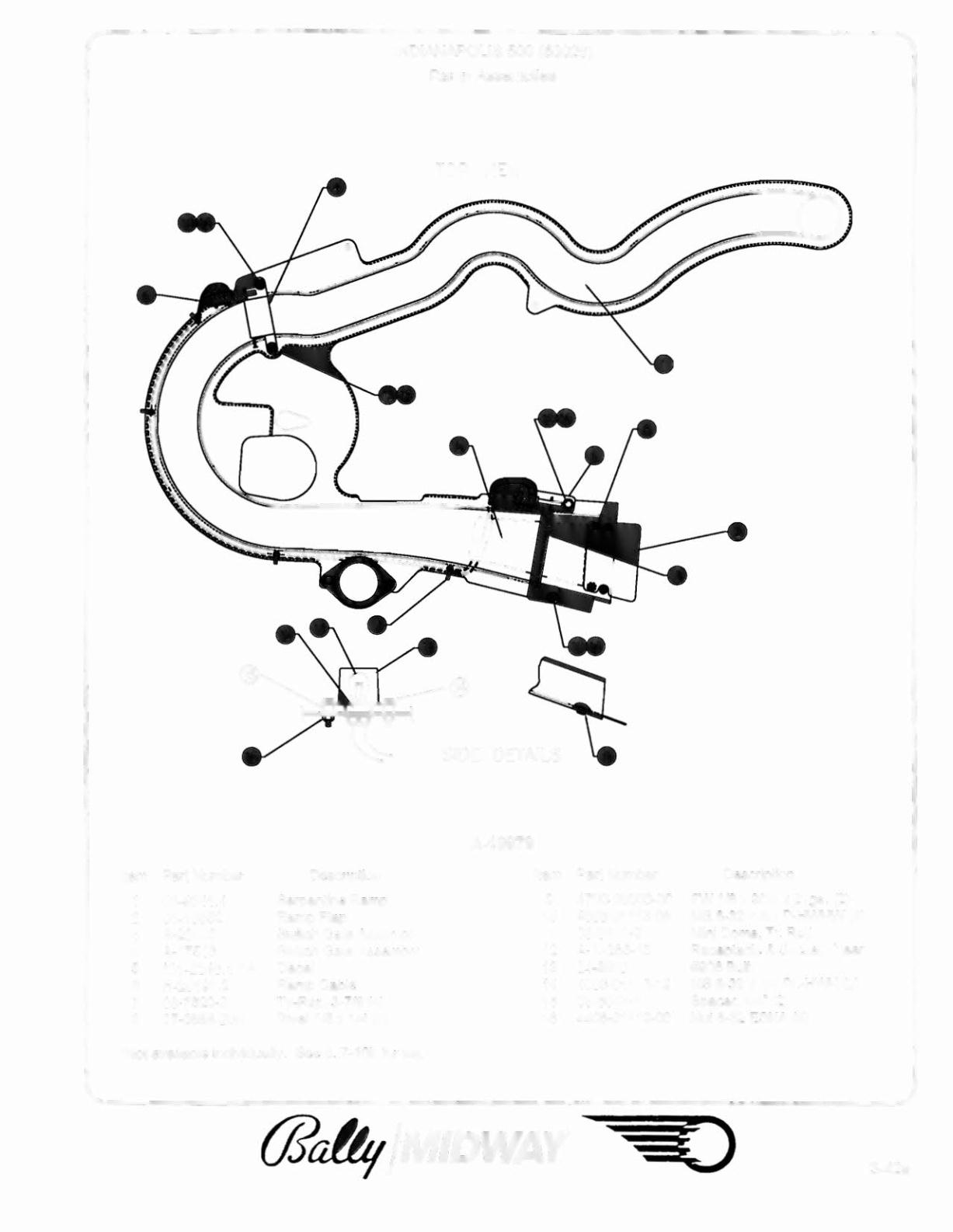

TOP VIEW
SIDE DETAILS
A-19979
Item Part Number
Description
Item Part Number
Description
1
03-9341.4
Serpentine Ramp
9 4700-00003-00 FW
1/8
x
9/32
x 21ga. (2)
2 01-13832
Ramp Flap
10 4006-01113-06 MS 6-32 x
3/8
P-HWHW (4)
3 A-20440
Switch Gate Assembly
11 03-8171-9
Mini Dome, Tr. Red
4 A-17516
Switch Gate Assembly
12 A-14265-13
Receptacle & Socket, Clear
5 *31-2346.1-1 A Decal
13 24-8802
#906 Bulb
6
H-20197.2
Ramp Cable
14 4006-01113-12 MS 6-32 x
3/4
PL-HWH (2)
7 03-7520-2
Ty-Rap,
3-7/8 (4)
15 03-6047-1
Spacer, 114" (2)
8 07 -6688-20N Rivet
1/8
x
1/4 (2)
16 4406-01119-00 Nut 6-32 ESNA (6)
*Not available individually.
See p. 7-10b for set.
