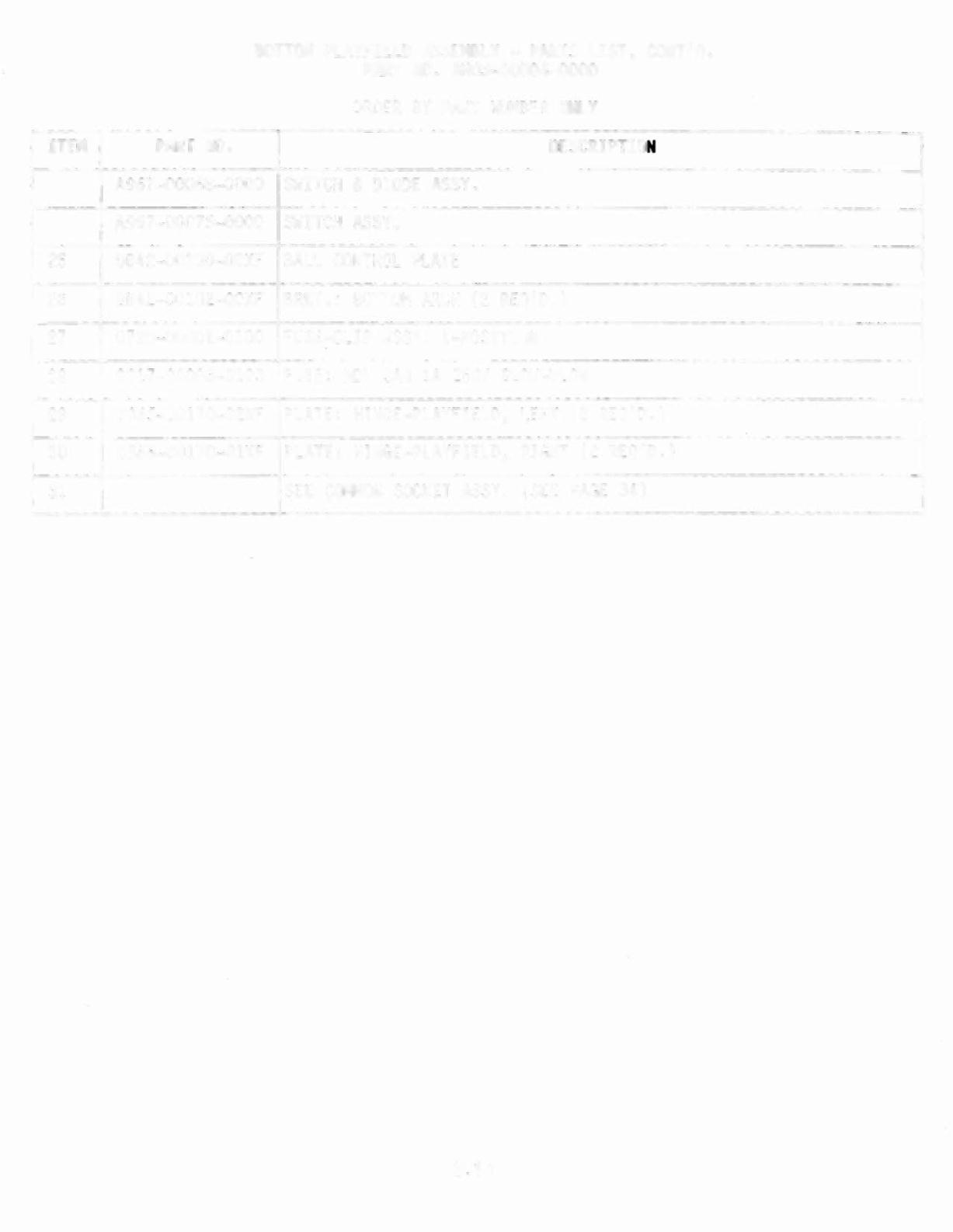

BOTTOMPLAYFIElO ASSOElY - PARTS LIST, CONTID.
PART NO. AH03-00004-0000
ORDER BY PART NUr4BER ONLY
ITEM PART NO. DESCRIPTION
A967-00068-0000 SWITCH & DIODE ASSY.
A967-0007S-0000 SWITCH ASSY.
25 OB42-00100-00XF BALL CONTROL PLATE
26 OB42-00102-00XF BRKT.: BOTor~ ARCH (2 REQ'D.)
27 0720-00001-0100 FUSE-CLIP ASSY. 1-POSITION
28 0017-00003-0103 FUSE: MDL 3AG 1A 250V SLOW-BLOW
29 0365-00170-02XF PLATE: HINGE-PLAYFIELD, LEFT (2 REQ 10. )
30 0365-00170-01XF PLATE: HINGE-PLAYFIELD, RIGHT (2 REQ'D.)
31 SEE COMMON SOCKET ASSY. (SE PAGE 34)
8.11
