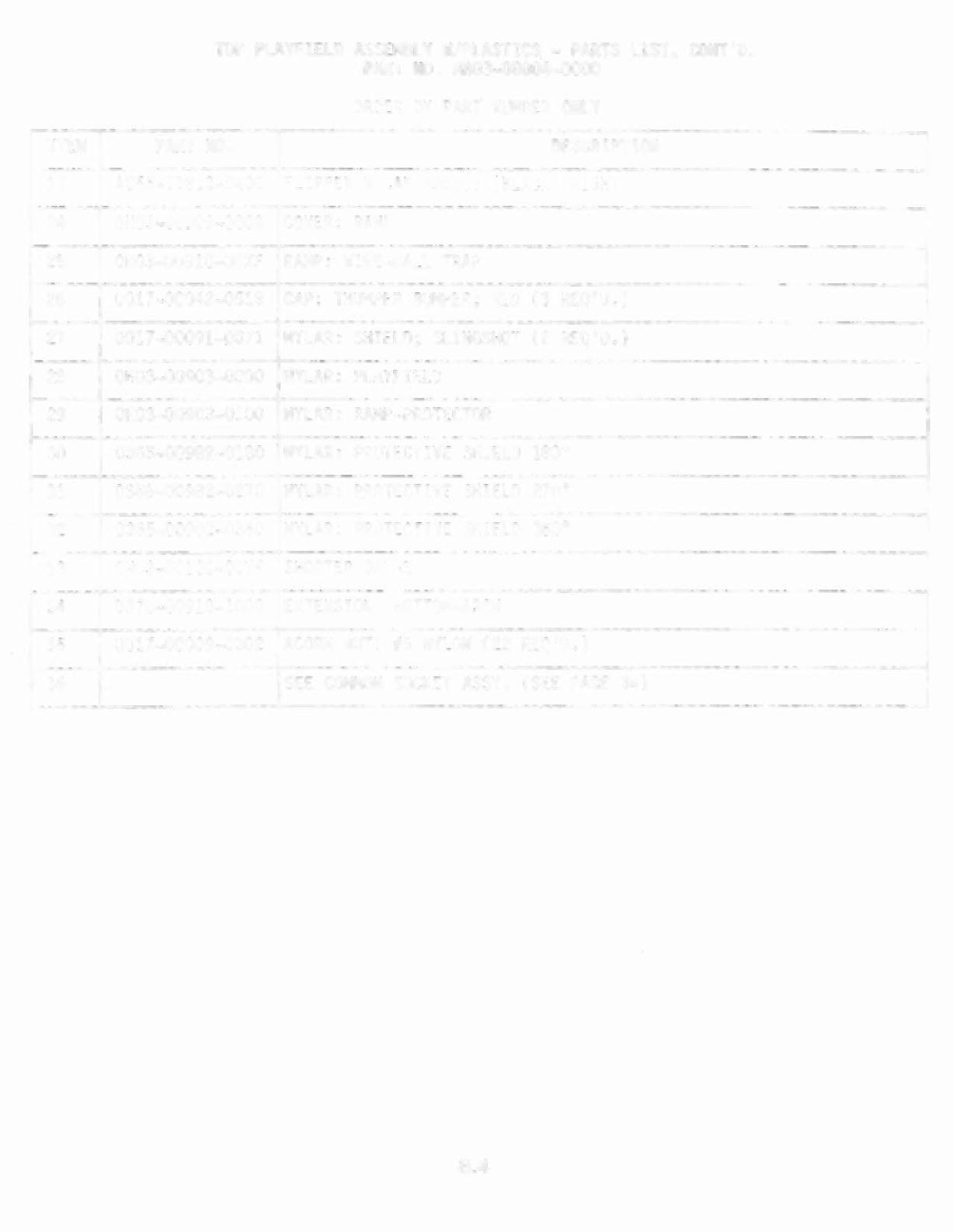

TOP PLAYFIELD ASSEMBLY W/PLASTICS - PARTS LIST, CONT'OaPART NO. AH03-00004-0000
ORDER BY PART NUMBER ONLY
ITEM PART NOa DESCRIPTION
23 ,0.365-00312-0400 FLIPPER W/CAP ASSY.: (BLACK) RIGHT
24 OH03-00909-0000 COVER: RAMP
25 OH03-00910-00XF RAMP: WIRE-BALL TRAP
26 0017-00042-0518 CAP: THUMPER BUMPER; RED (3 REQ' D. )
27 0017-00091-0071 MYLAR: SHIELD; SLINGSHOT (2 REQ' o. )
28 OH03-00903-0000 ~1YLAR: PLAYFIELO
29 OH03-00903-0100 MYLAR: RAMP-PROTECTOR
30 0365-00982-0180 MYLAR: PROTECTIVE SHIELD 1800
31 0365-00982-0270 MYLAR: PROTECTIVE SHIELD 2700
32 0365-00982-0360 MYLAR: PROTECTIVE SHIELD 3600
33 OH03-00100-00XF SHOOTER GAUGE
34 0370-00918-1000 EXTENSION: BOTTOM-ARCH
35 0017-00009-0302 ACORN NUT: #5 NYLON (22 REQ'O.)
36 SEE COMMON SOCKET ASSY. (SEE PAGE 34)
8.4
