Page 114 - Bally 1969 Parts Catalog

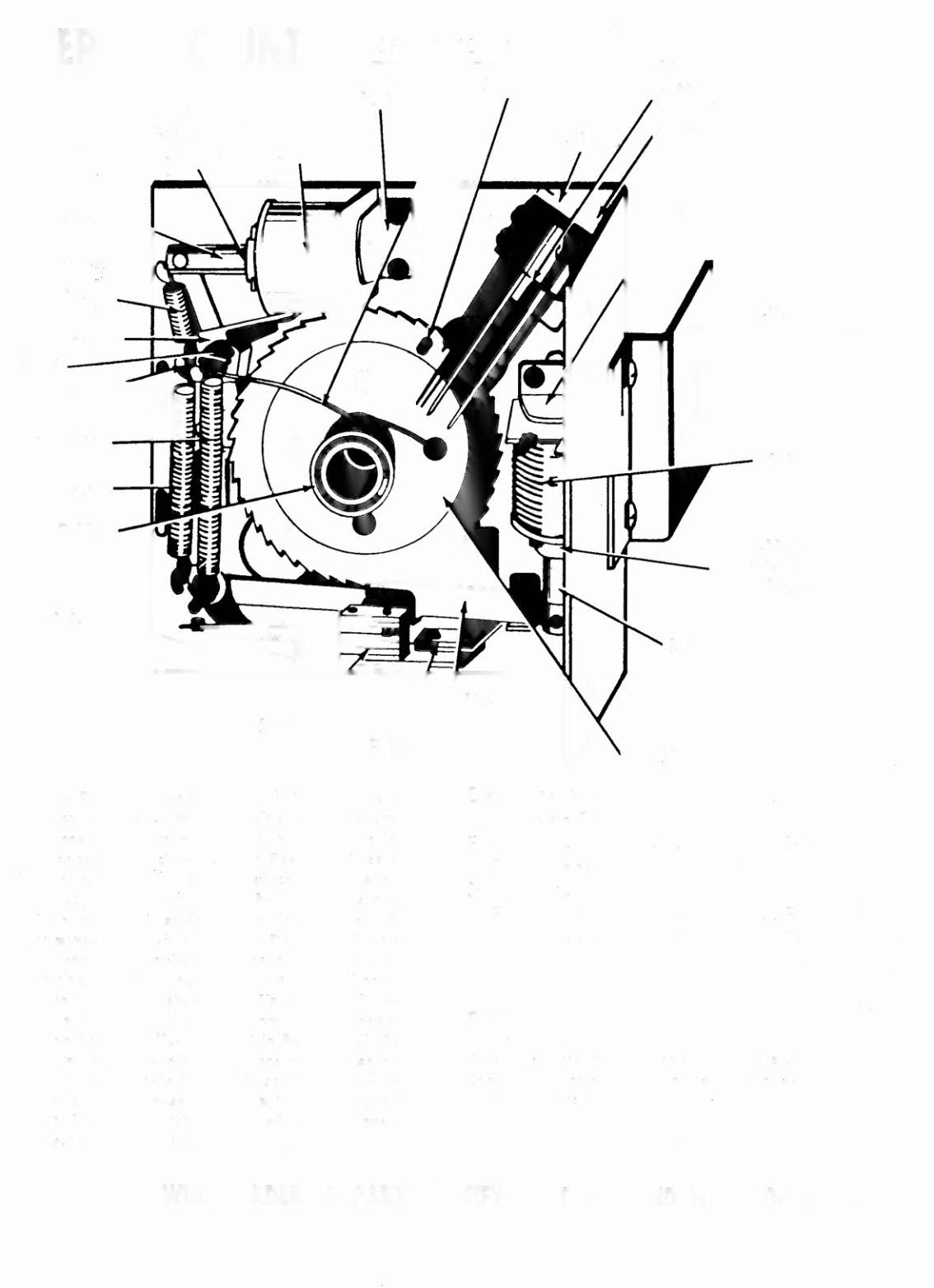

REPLAY COUNTER I SEE NOTES A, B
S-463-37
C-342 A-613-33
CO-28R-15
SP-100-120
Operate Reset Plunger by hand until Ratchet resets to
zero position, i.e.. until resetting movement stops.
Then operate Step-up Plunger and, while holding Step-
up Plunger in, check to see that Reset Pawl rests at
base of ratchet-tooth {point at which s tra ight and an-
gular edges of tooth ' meer). If Reset Pawl is not at
base of tooth, adjust Spring-Stop (P-3384) until Rat-
chet moves into position to permit Pawl properly to en-
gage tooth, as described. Then check unit manually by
operating Step-Up Plunger. Afeer Reset Pawl drops into
position described above, Step-Up Arm should over-
ride approximately 1/64 in. before being stopped by
Step-up Arm Stop ("ear" formed in Base Plate ). Bend
Stop one way or another to reduce or increase over-
ride to approximately 1/64 in. Reset Pawl should then
properly drop into base of tooth, without binding, when
Reset Plunger is lightly operated (without pushing
'Plunger a II the •.••ay in).
P-3384
(Spring-Stop)
P-1417-4
P-1158-6
SPRING-WASHER
(Not Vi sible)
Elastic Stop Nut. ......•.•. M-319-3
Used with Pivot Pin
Pivot Pin •............... . S-737-48
Pivot member for Step Arm Assy.
Switch Plate
Flat .. " P-126-154
Spring P-137-5
FASTENERS
Ord er fasteners (nuts, screws, washers, erc.) by des-
cription wirh refe rc nce Co (a) pare which fastener se-
cures, (b) name of game.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
121
