Page 108 - Bally 1969 Parts Catalog

P-3384

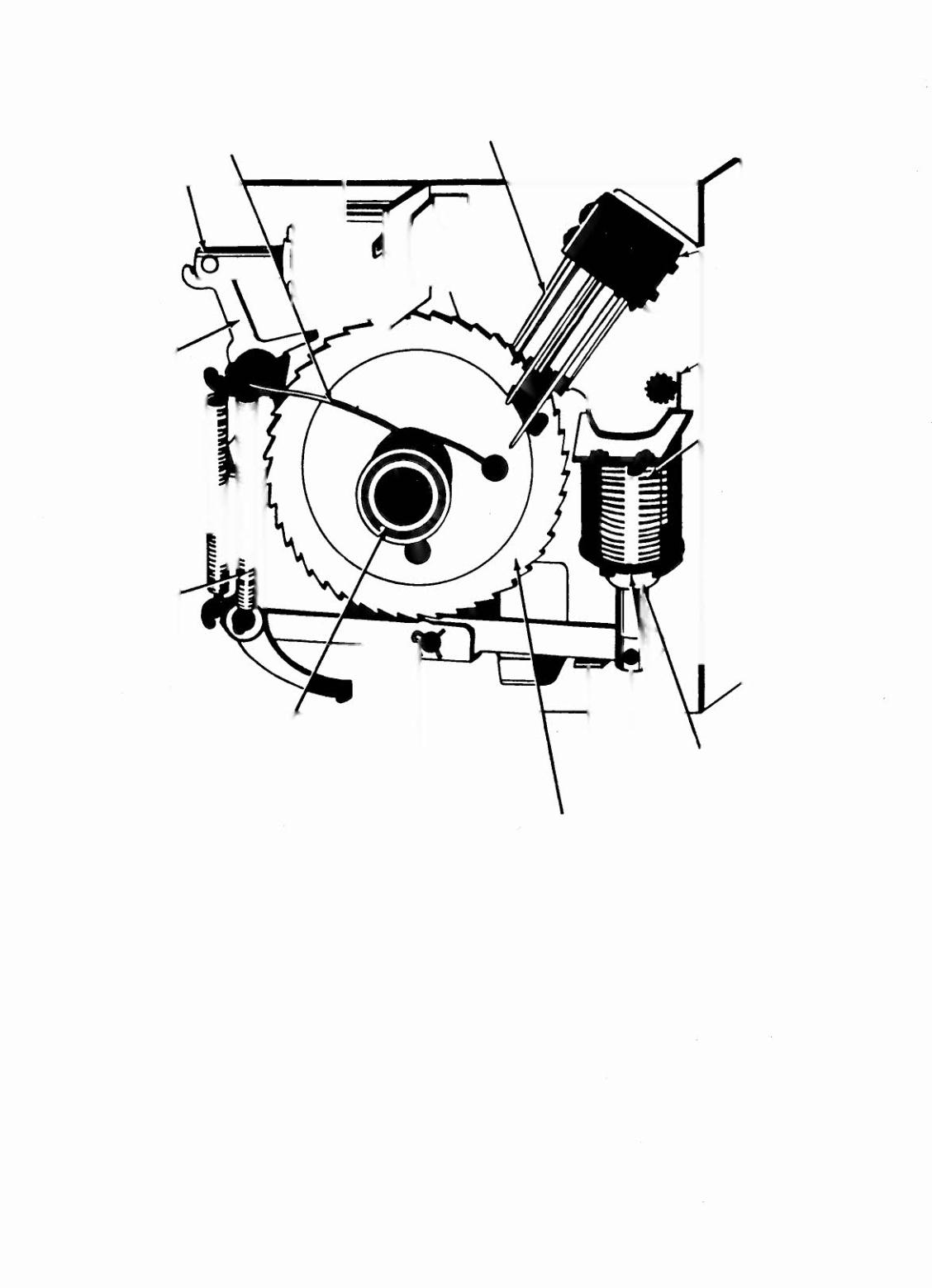

STEPPING UNITS, FULL RESET
CO-28R-15
A-1766
SPRING
SEE NOTE A
SPRING
SEE NOTE A
P-3389
M-254
STEP-UP ARM
SEE NOTE A
Operate Reset Plunger by hand until Ratchet resets
to zero position, Le,; until resetting movement stops.
Then operate Step-up Plunger and, while holding
Step-up Plunger in, check to see that Reset Pawl rests
at base of ratchet-tooth (point at which straight and
angular edge s of tooth meet). If Reset Paw I is not at
base of tooth, adjust Spring-Stop (P-3384) until Rat-
chet moves into position to permit Pawl properly to
engage tooth, as described. Then check unit manual-
ly by operating Step-Up Plunger. After Reset Pawl
drops into position described above. Step-up Arm
shou 1.1over-ride approx imare Iy 1/64 in. before being
CONTACT-PLATE WIPER ASSY
(WIRED) .
SEE NOTE A
SWITCH
SEE NOTE A
STEP-UP COIL
SEE NOTE A
CORE -PLUG ASSY.
SEE NOTE A
C-342
GUIDE-RING
P-1158-6
SPRING-WASHER
(Not Vi si hi e)
RATCHET
SEE NOTE A
stopped by Step-Up Arm Stop (Clear" formed In Base
Plate). Bend Stop one way or another to reduce or in-
crease over-ride to approximately 1/64 in. Reset Pawl
should then properly drop into base of tooth, without
binding, when Reset Plunger is lightly operated (with-
out pushing Plunger all the way in).
HOTE A
If part number not listed in SPECIFIC PARTS DATA,
commencing on page 8. order part by name, specifying
name of unit, name of game.
WHEN ORDERING PART, SPECIFY PART NO. AND NAME OF GAME
115
