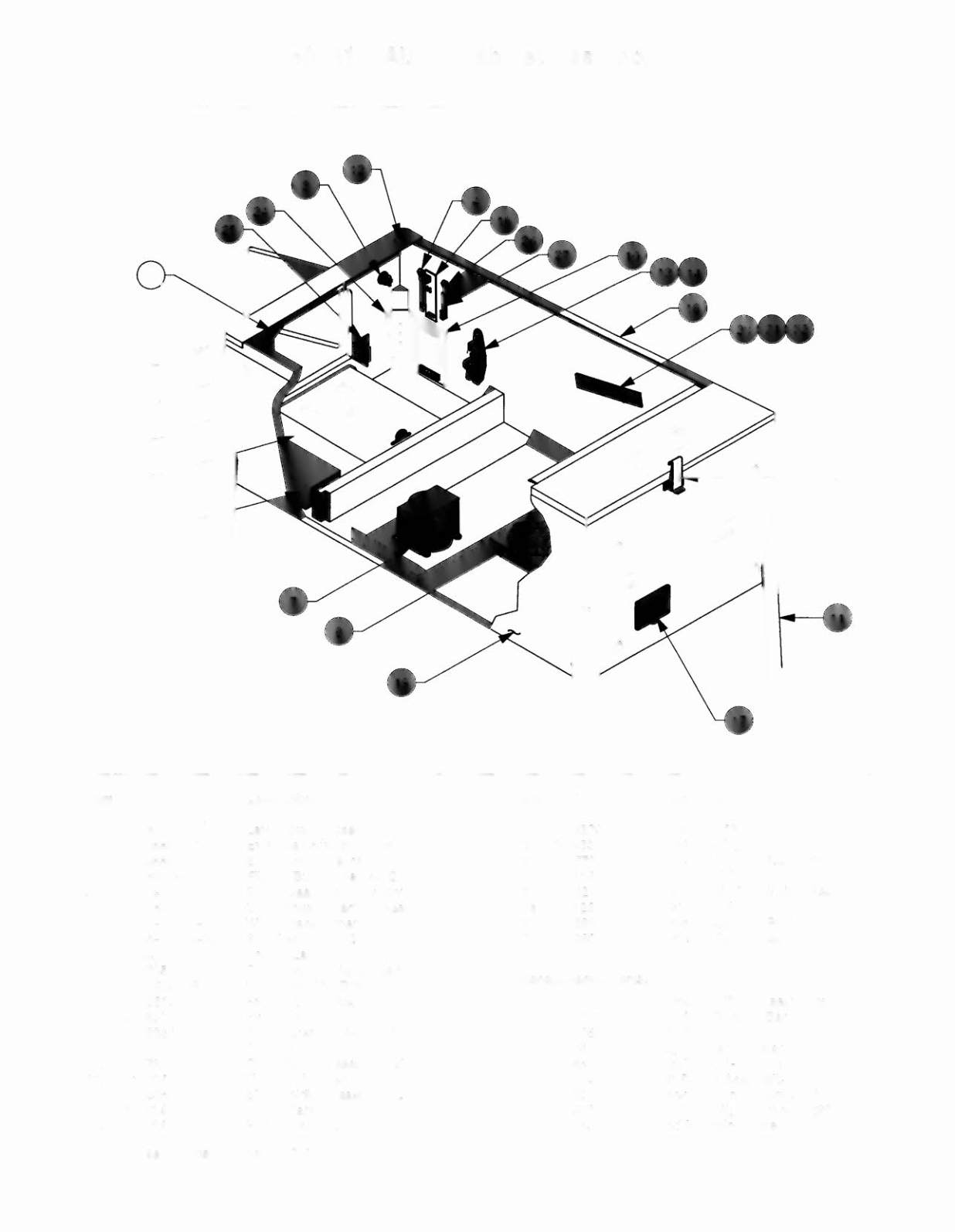

50031-CAB Cabinet Assembly
17
Item Part No.
Description
Item Part No.
Description
1.
A-16773
Lever Guide Assembly
21.
02-4329-1
Pivot Nut,
7/8" (4)
2.
20-9663-D-1
Extra Ball Button, Green
22.
02-4352
Pivot Bushing (2)
3.
20-9663-1
Start Button, Yellow
23.
A-17730
Ball Shooter Rod Assembly
4.
A-16883-6
Flipper Button, Yellow (2)
24.
01-11400
Leg Plate (4)
5.
A-17900-1
5-Ball Cashbox Assembly
25.
A-18249-1
Cable & Interlock Switch Assy.
6.
A-17540
Univ. Power Interface Assy.
a) 01-12676
Switch Bracket
7.
5610-1 3953-00 WPC Transformer
26.
A-16883-4
Button Assembly, Red
8.
5555-12929-00
Speaker, 40, 6", 25w
27.
A-18602
Switch & Cable Assembly
9.
20-9347
Toggle Latch
10.
A-17051-1
Coin Door Interface Board
Miscellaneous Parts:
11.
C-10843-BR
Leg Assembly, Brass
12.
D-12615
Front Molding Assembly
08-7028-T
Tempered Plfd. Glass: 21
"x43"
13.
20-6502-A
Plum Bob
01-10797
Playfield Support Bar, 18"
14.
A-15361
Tilt Mechanism Assembly
01-12352
Clip Bracket
15.
Cordset
08-7377
Leg Leveler Adjuster, 3"
16.
A-17316
Opto Flipper Assembly (2)
20-6500
Steel Ball,
1-1/16" (5)
17.
01-10714
Line Cord Cover
A-17195
Tilt Switch Assy. wlCable
18.
A-12359-3
Side Molding Assembly (2)
01-9011-L
Backbox Mtg. Bracket, Left
19.
11-1147
Wood Cabinet
01-9011-R
Backbox Mtg. Bracket, Right
20.
01-11408
Plate Spacer (2)
01-3535
Rod Mounting Plate
• See Application Chart (p.2-4)
