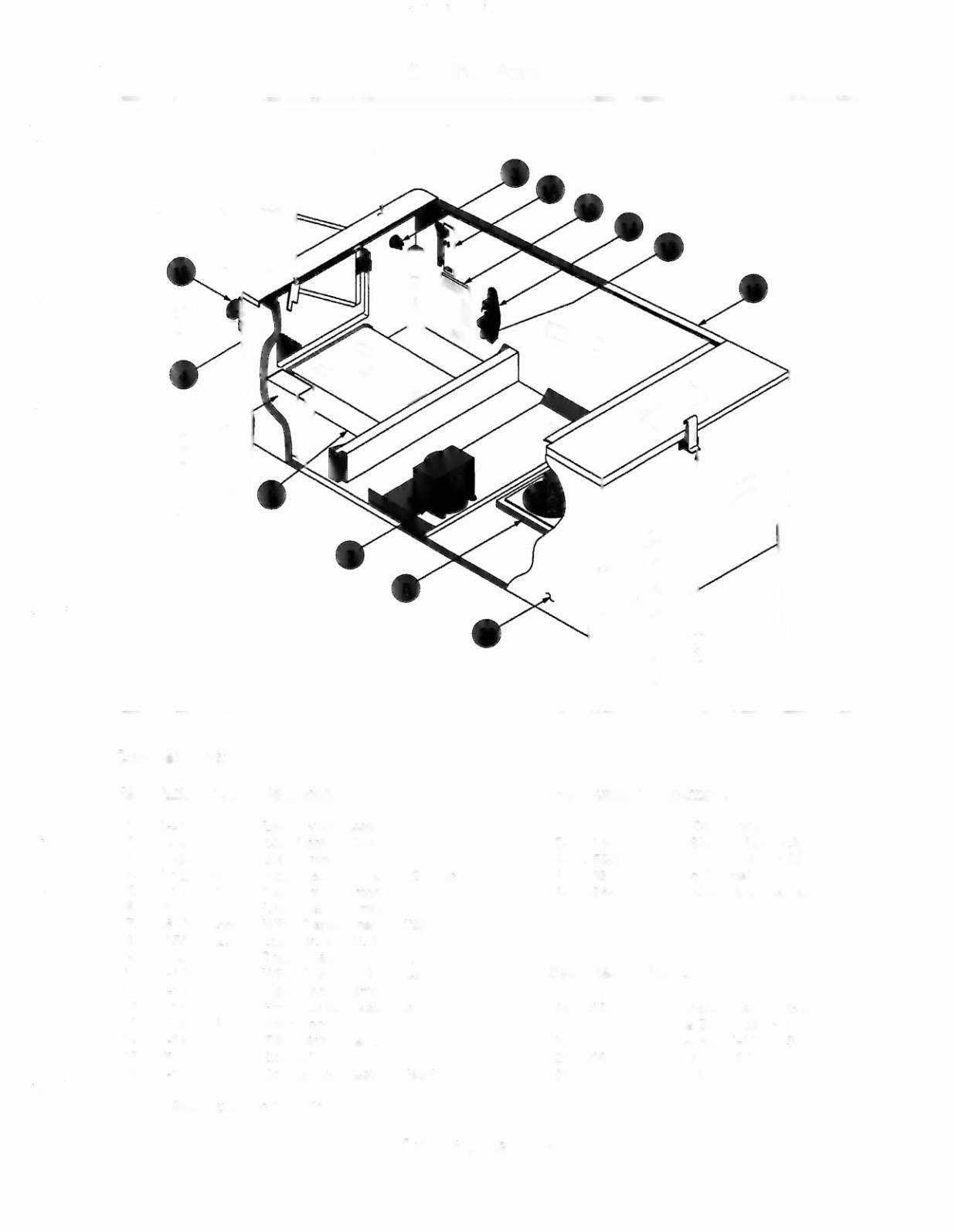

Cabinet Parts
Cabinet Parts:
Item Part Number
Description
1.
A-9174-4
Lever Guide Assembly
2.
A-14148-1
Coin Door - 2 Slot
3.
20-9663-1
Start Button
4.
B-12273-6
Flipper Button - Yellow (2 Used)
5.
A-16117-1
Cashbox Assembly
6.
*
Line Filter Assembly
7.
561 0-12835-00 WPC Transformer,
115/230v
8.
5555-12929-00 Speaker, 40, 6", 25w
9.
20-9347
Toggle Latch
10. A-14689
WPC Coin Door Interface Bd.
11.
C-10843
Metal Leg Assembly
12. A-16055
Front Molding Assembly
13. 20-6502-A
Plum Bob
14.
A-15487
Tilt Switch Assembly
15.
*
Cordset
16.
A-15878
Double Opto Assy. (2 Used)
' ''-..,/
*
See Application Chart (p.2-2).
~
Part Number
DescrIption
17.
OH0714
Line Cord Cover
18.
B-12445-6
Ball Shooter Assembly
19.
A-12359-3
Side Molding Assembly
20.
11-1106
Wood Cabinet
21.
A-15896-2
Sw. Button & Cable Assy.
Miscellaneous Parts:
08-7028-1
Tempered Playfield Glass,
Wide Body: 23.75" x 43"
Steel Ball,
1-1/16" (5)
Ceramic Ball (1)
Stay Arm
20-6500
20-9809
01-10797
Twilight Zone 2-3
