CAUTION

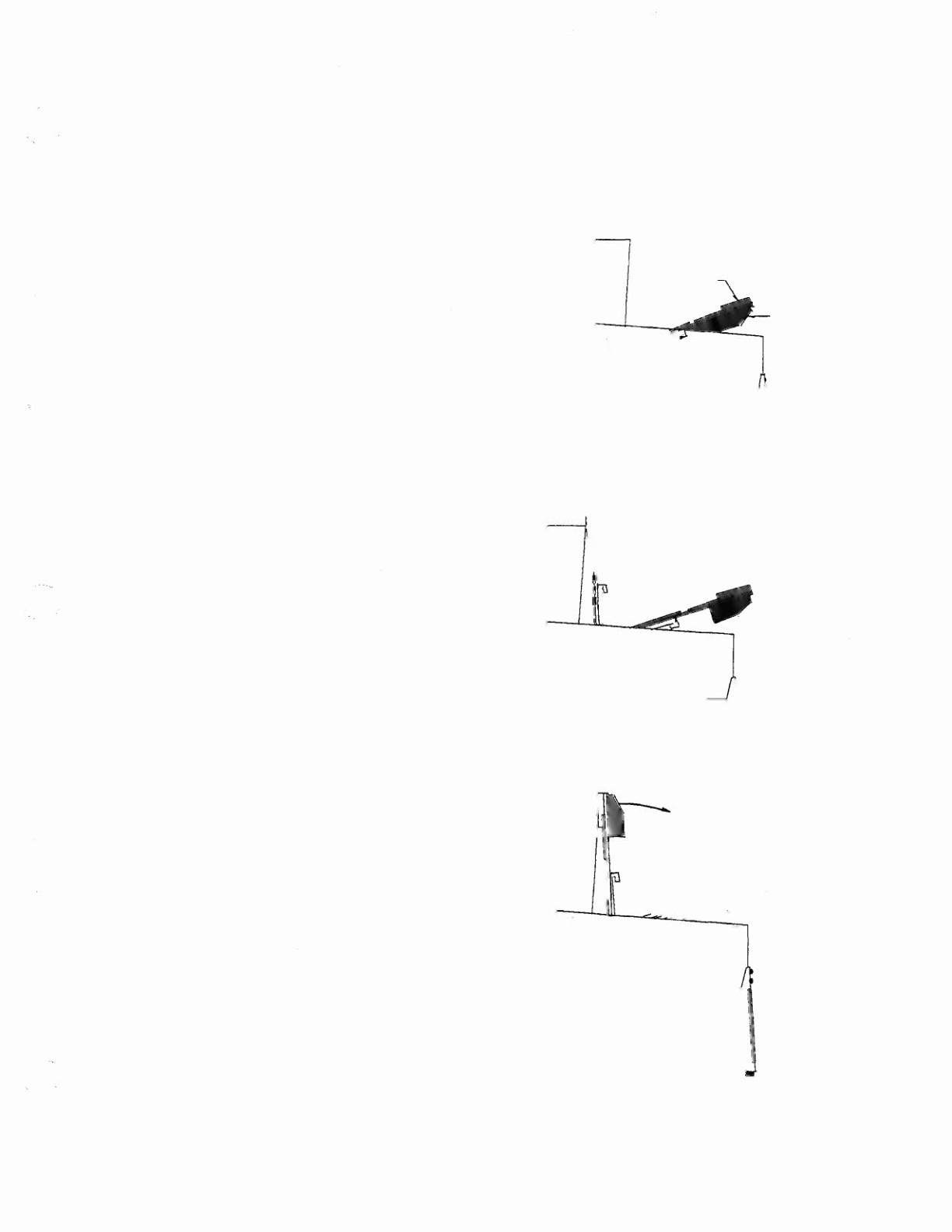

RAISING THE PLAYFIELD
Do not raise the playfield straight up! This game uses a slide assembly to raise and
lower the playfield.
To raise the playfield.
1. Grasp bottom arch and carefully lift up playfield
only high enough to clear safety brackets. Rear
guide legs should not hit wood guide rails or be
used to slide out playfield.
2. Pull the playfield out toward you until it stops
(rest position) and raise it approximately 3".
Be sure playfield is in locked
position and does not slide back
into the cabinet. If it does, repeat
Step 2 before proceeding to Step 3.
3. Rotate playfield to upright service position
(lean on backbox) by pulling toward you and
up. Listen for the sound of a click; this
insures locking and pivoting sequence.
To lower the playfield.
4. Rotate the playfield to the rest position.
This unlocks the pivoting mechanism.
S. Push back playfield into cabinet and into
playing position.
STKle Mechanism
(2 used)
Rear Gui:le Leg
(2 used)
Bottom Arch
Wood Guide Rail
(2 used)
I
~~~~.==~.
,c-J
I..
~.
==~
c===~
PivOl Mechanism
(2 used)
Twilight Zone 1-5
