OPTO THEORY
The opto receiver (Photo Transistor) should be approximately 0.1-0.7 volts when the opto beam
is unblocked and approximately 11-13 volts when the opto beam is blocked. The opto transmitter
(L.E.D.) should always be approximately 1.4 volts. Note, the transmitter (L.E.D.) is larger than
the receiver (Photo Transistor); it protrudes further from its case.

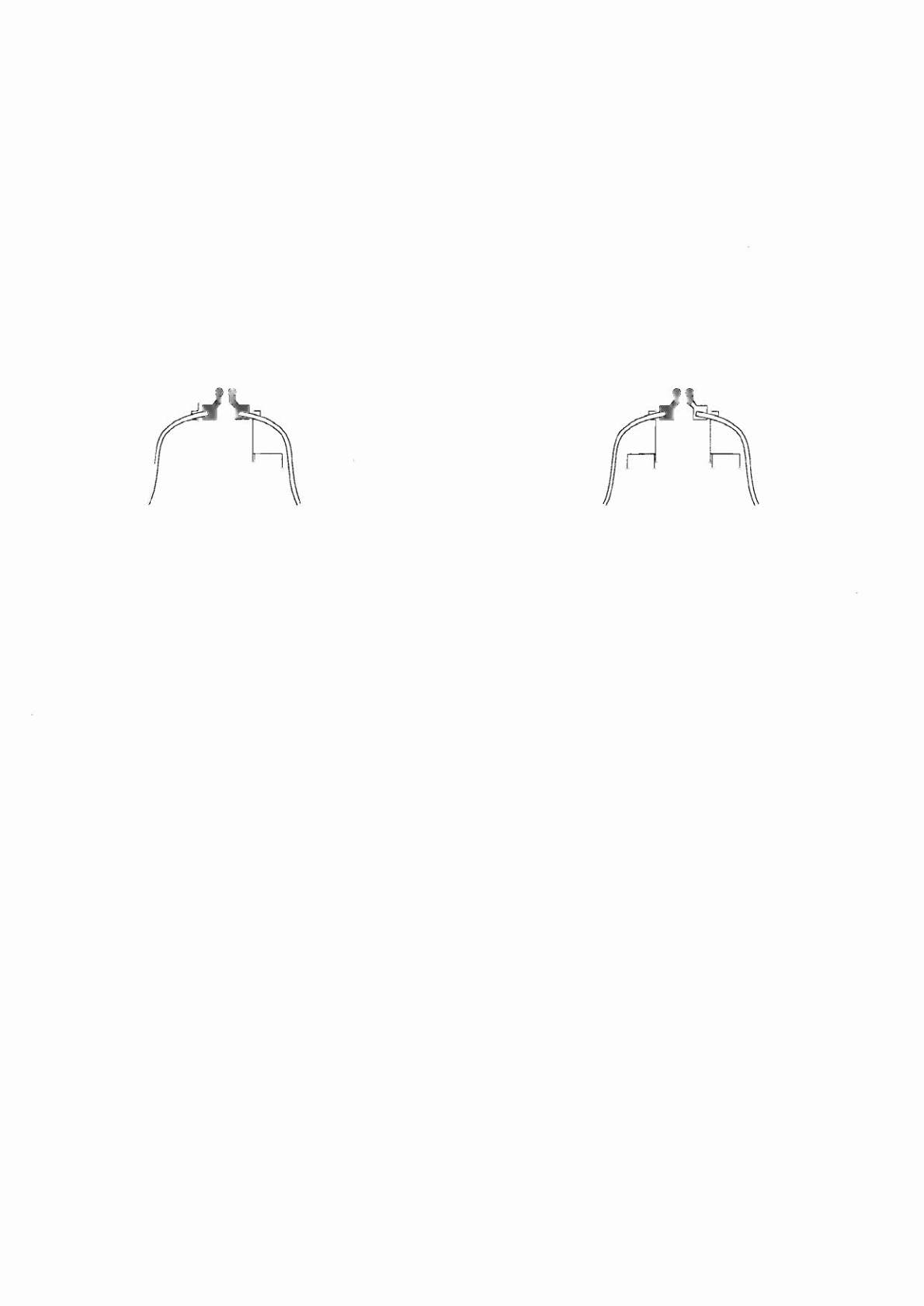

LED Board (A-16908)
Transmitter
1.0-1.1 Volts
Photo Transistor
Board (A-
i
6909)
Receiver
0.1-0.7V Unblocked
11 -13V Blocked
Green
o
WHT
Infrared Ray
Gray-XXX
Black
Gray-Yellow
Orange-XXX
1-41
