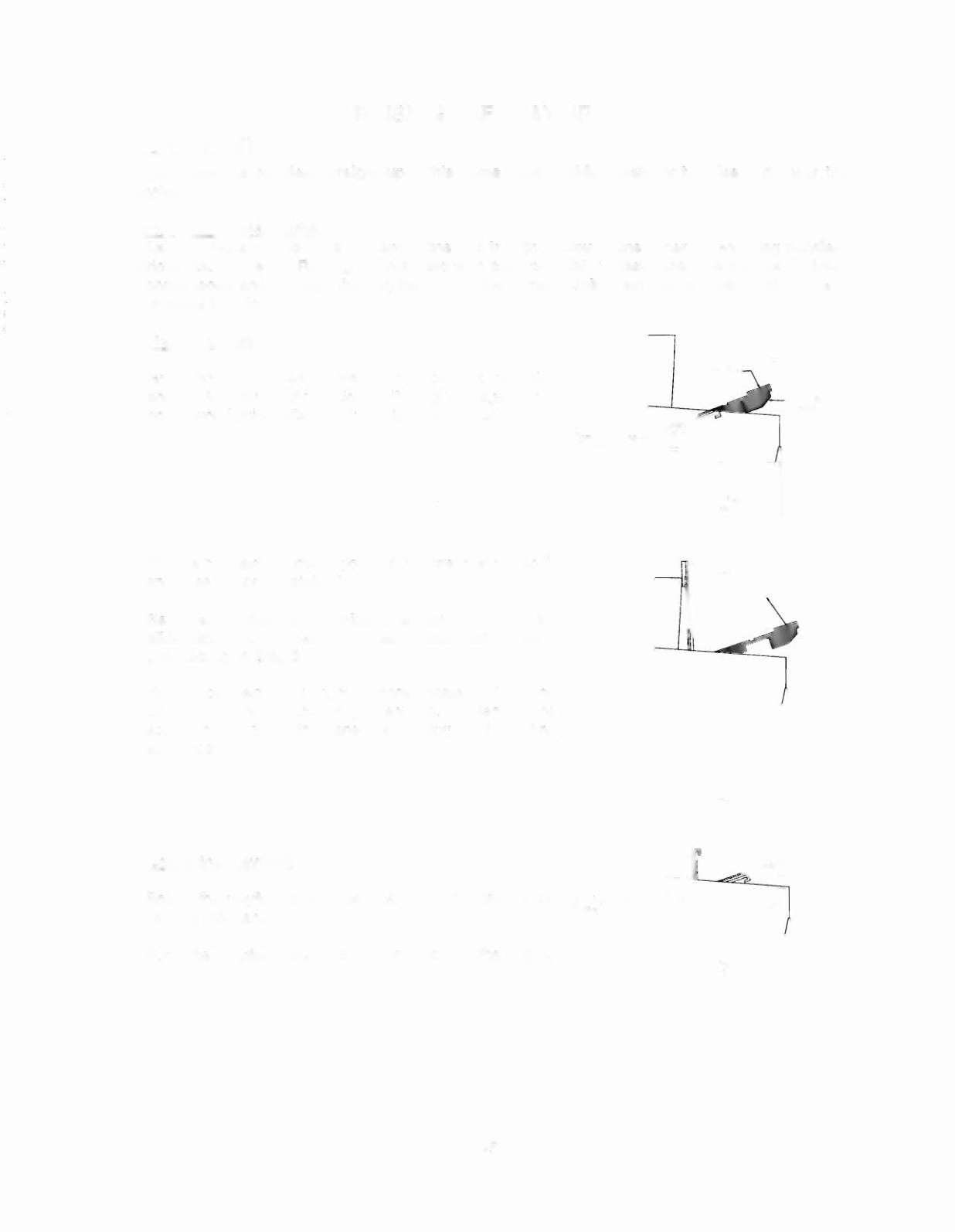

RAISING THE PLAYFIELD
&
CAUTION
Do not raise the playfleld straight up! This game uses a slide assembly to raise and lower the
playfleld.
Before Raising the Playfleld:
Make sure there are no balls present In the ball trough or any of the other bali-holding playfleld
devices (I.e. poppers). RaiSing the playfield with balls present In these locations may cause them
to come loose and damage the playfleld. Use the "Empty Balls Test" to remove a" of the balls
from these locations.
1. Grasp bottom arch and carefully lift up playfield only high
enough to clear safety brackets. Rear guide legs should
not hit wood guide rails, or be used to slide out playfield.
Bottom Arch
To Raise the Playfleld.
Woad Gu ide Rail
(2 used)
Be sure playfleld Is In locked position and does not
slide back Into cabinet. If It does, repeat Step 2 before
proceeding to Step 3.
2. Pull the playfield out toward you until it stops (rest position),
and raise it approximately 3".
3. Rotate playfield to upright service position (lean on
backbox) by pulling toward you and up. Listen for the
sound of a click: this ensures locking and pivoting
sequence.
4. Rotate the playfield to the rest
posttlon,
This unlocks the
pivoting mechanism.
Slide Mechanism
(2 used)
To Lower the Playfleld.
5. Push the playfield back into cabinet and into the playing
position.
1-5
