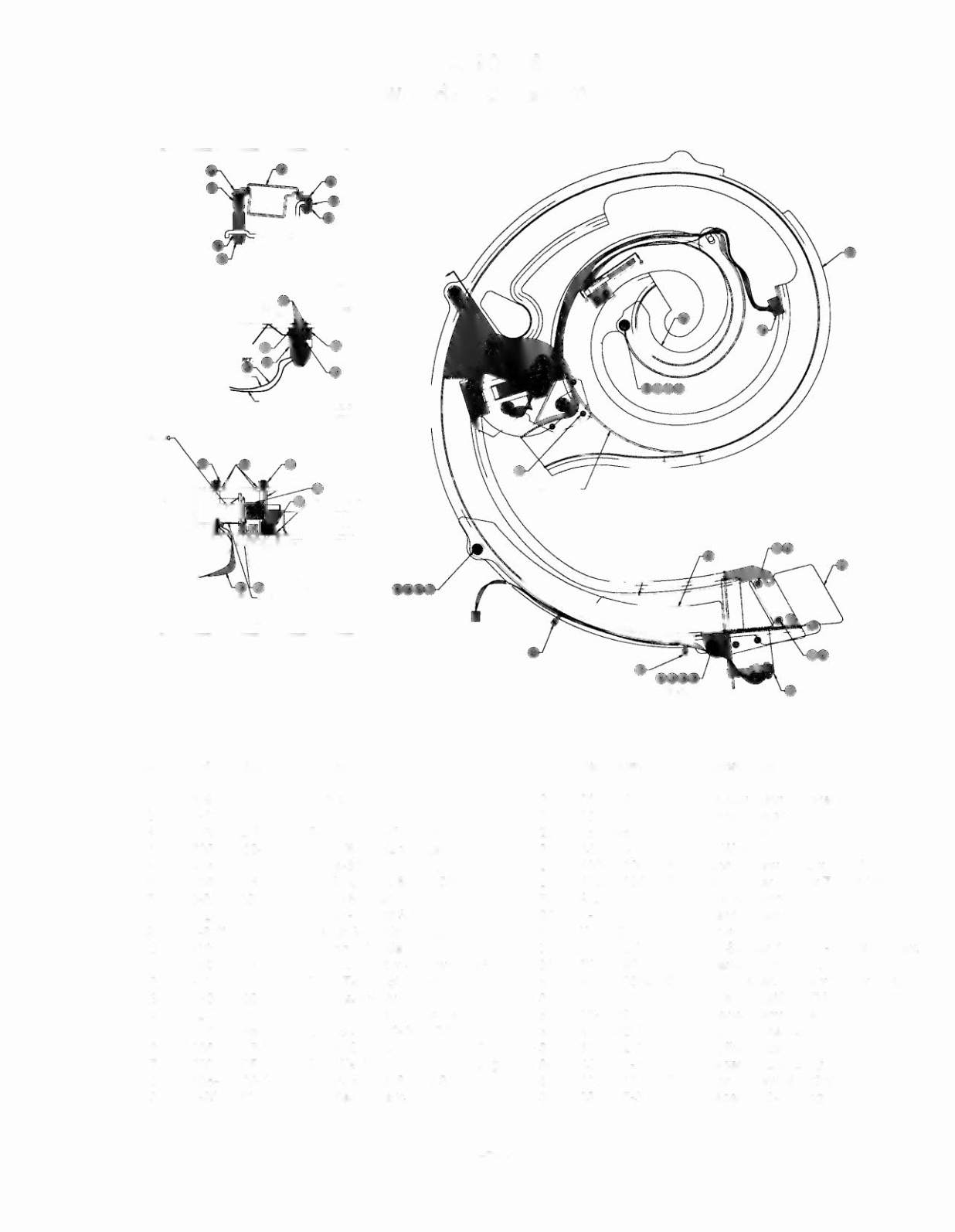

Swirl Ramp Assembly
Item Part Number
Description
Item Part Number
Description
1 03-9462
Ramp - Swirl
20 01-8413
Coil Mounting Bracket
2 01-14266
Flap
21 10-303
Spring Master
3 07-6688-20N
Rivet,
1/8
x
14"
Nickel
22 03-7066
Coil Tubing
4 4700-00003-00
Fw,
1/8
x
9/32
x 21ga.
23 03-9454
Tie Wrap
5 4406-01119-00
Nut 6-32 ESN
24 4006-01005-26
Mach. Screw, 6-32 x
1-5/8"
6 4006-01113-06
Mach. Screw, 6-32 x
3/8"
25 4700-00007 -00 Flat Washer,
5/32
x
7/16
x 16ga.
7 03-8365-13
Post #8 Clear
26 A-20847
Gate Assembly
8 31-2547-1
Decal - Under Side
27 A-20811
Guard Assembly
9 01-8774
Switch Mounting Bracket
28 H-20897
Cable
10 A-12238
Switch & Diode
29 02-4250-23
M-F Sapcer 6-32 x
1-7/16
x
14"
Hex.
11 4002-01105-06
Screw, #2-56 x
3/8"
w/SEMS
30 04-10490
Diverter Ramp Plate
12 A-11397
Drop Target Stop Bracket
31 4700-00009-00
Flat Washer,
11/64
x
7116
x 21ga.
13 AE-30-2000
Coil Assembly
32 4408-01119-01
Nut 8-32 ESNAlNTM
14 A-20914
Plunger & Ball Guide Assy.
33 02-5262
Diverter Ramp Post
15 4010-01066-06
Cap Screw, 10-32 x 3/8"
34 31-2562-1
Playfield Plastics
16 4006-01113-18
Mach. Screw, #6-32 x 1-1/8"
35 31-2562-2
Playfield Plastics
17 4700-00005-00
Flat Washer, 9/64 x 7/16 x 21 gao 36 03-9255-1
Spacer #8.250 Long
18 4006-01003-06
Mach. Screw, 6-32 x 3/8"
37 4006-01113-12
Mach. Screw, #6-32 x
%"
19 31-2545-21 A
Playfield Plastic
38 03-9255-3
Spacer #8.541 Long
