Page 112 - Tales of the Arabian Nights

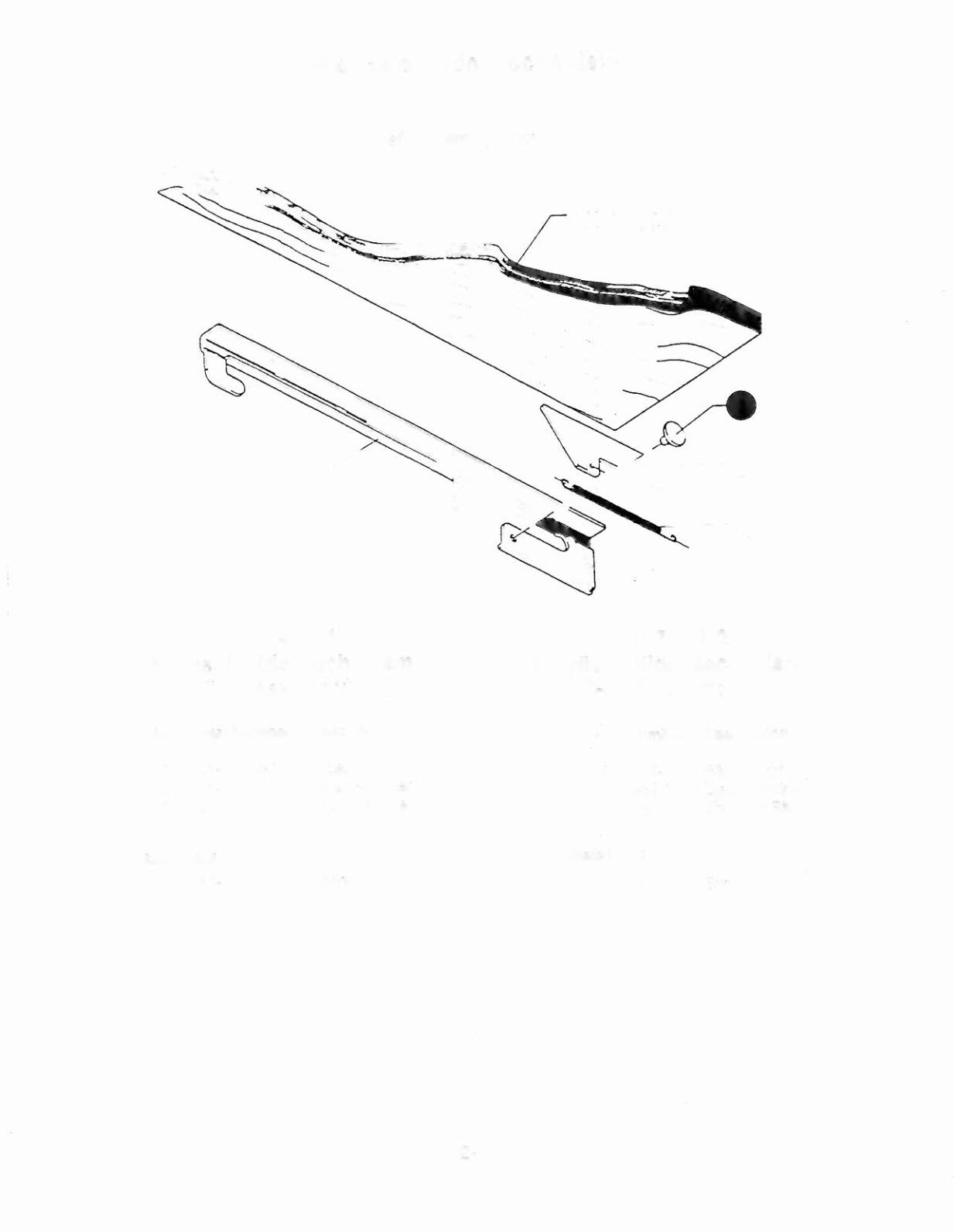

Playfield Slide Mechanism
(Left Assembly Shown)
Underside of Playfield
shown for reference
A-17749.1-1 A-17749.1-2
Playfield Slide Mechanism Playfield Slide Mechanism
(Left Assembly) (Right Assembly)
Item Part Number Description Item Part Number Description
1 01-12304-1 Slide, Left 1 01-12304-1 Slide, Right
2 01-10664.1 Lever Retainer 2 01-10664.1 Lever Retainer
3 02-4615 Shoulder Rivet 3 02-4615 Shoulder Rivet
Associated Part: Associated Part:
4 10-439 Spring 4 10-439 Spring
2-30
