A-23407

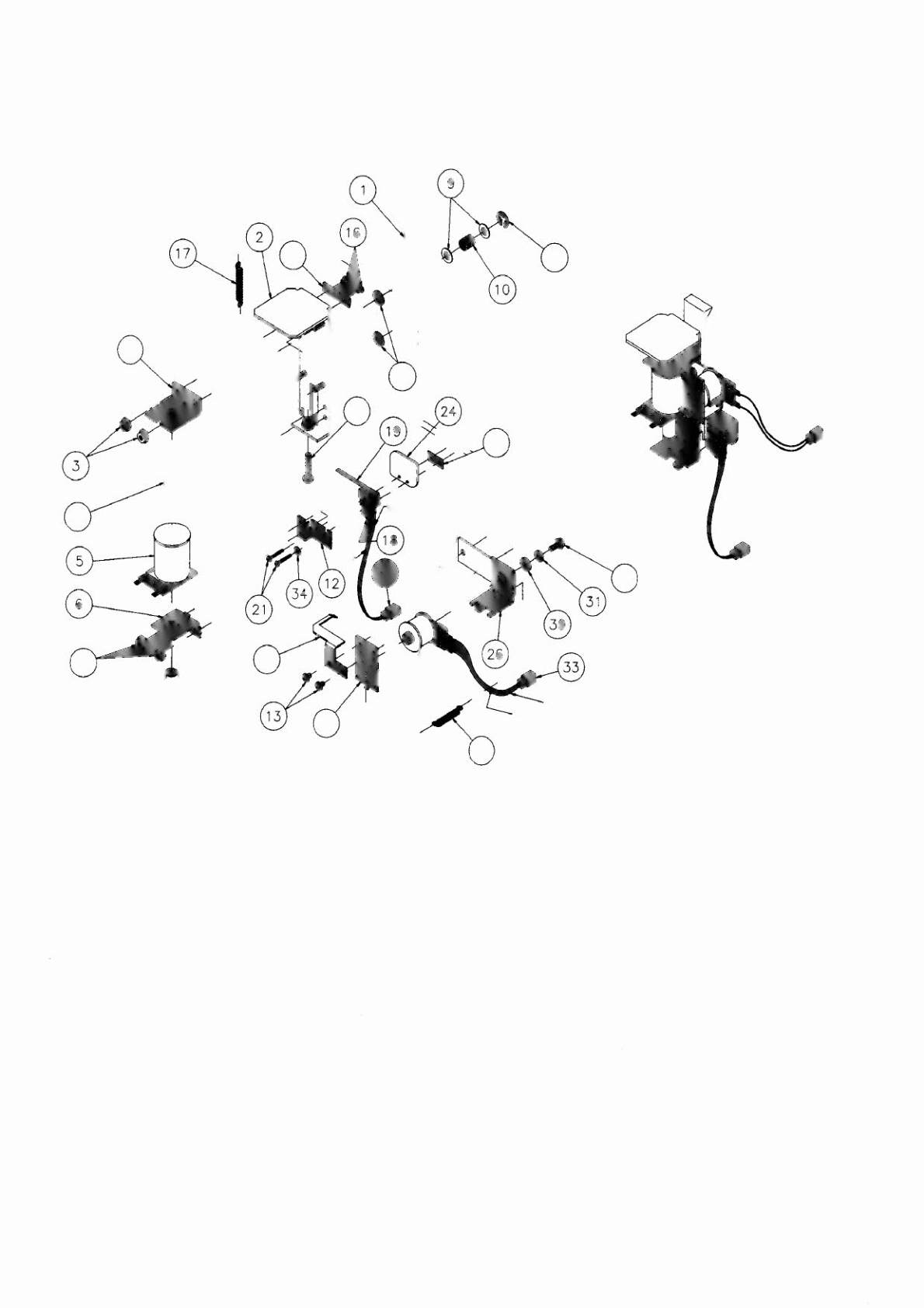

1 Bank Drop Target Assembly
Item PartNumber Description
1 03-8750
Flush Target
2 A-14617
Bracket
&
Post Assembly
3 4408-01119-01
Nut, 8-32 ESNA-NTM
4 A-11397
Drop Target Stop Bracket
5 AE1-26-1200
Coil Assembly
6 01-8413
Coil Mounting Bracket
7 03-7066-4
Coil Tubing
8 A-11388-2
Plunger
&
Reset Plate
Assembly
9 4700-00072-00
FW, .256 x .500 x .032
10 10-392
Compression Spring
11 20-8712-25
E-Ring,
v...
Shaft
12 01-10183
Switch Bracket
13 4006-01003-04
MS, 6-32 x
y.."
P-PH-S
14 03-8034
Single Target Stop
15 4010-01025-14
MS, 10-32 x 7/8" P-RH
16 07-6688-17N
Rivet, 5/32 x
1/8"
Nickel
17 10-433
Extension Spring
I!!!!!
Part Number Description
18 5070-09054-00
Diode, 1N4004 1.0A
19 5647-12693-31
Sub-Mini Micro Switch
20 01-8600
Insulator
21 4002-01105-10
MS, 2-56 x
5/8"
P-PH-S
22 01-8240
Plate Nut, 2-56
23 01-8647-R
Actuator
24 03-8630
Actuator Guide
25 A-15821
Armature Sub-Assembly
26 A-15209
Frame
&
Eyelet Assembly
27
1
D-363
Extension Spring
28 SU1-26-600
Coil Assembly
29 4008-01021-06
MS, 8-32 x 3/8" P-RH Brass
30
47Q0.G0089-00 FW, .172 x .437 x .062 Brass
31 4701-D0003-00
LW, #8 Split
32 H-23019-2
2-Pin Switch Cable
33 H-19523
2-Pin Solenoid Cable
34
4700-00003-00 FW, 1/8
x
9/32 x
1/32"
2-20
