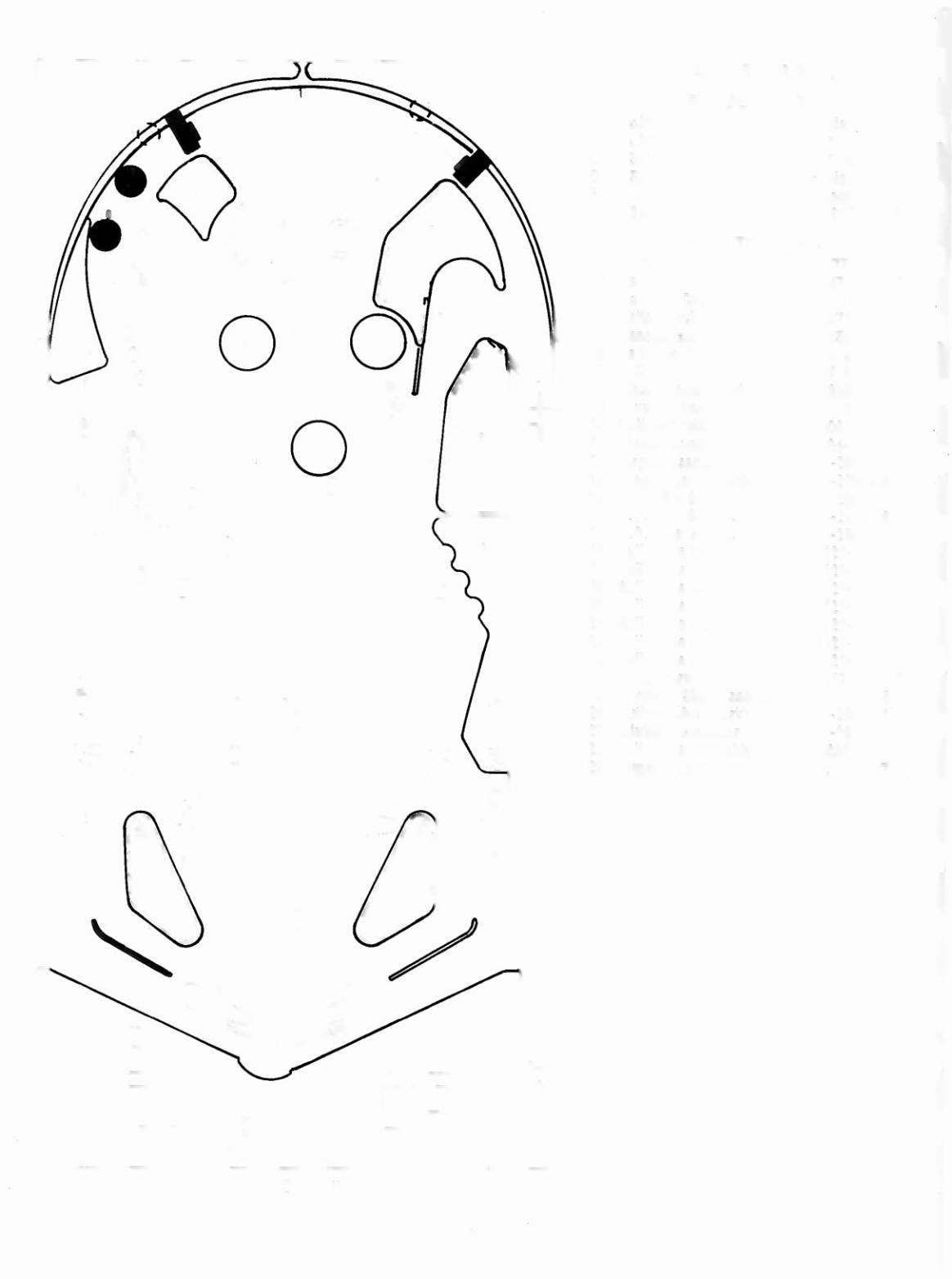

FIGURE"
9
#1148-E STAR TREK
RUBBER PARTS
A. R-521-1
B. R-521-4
C. R-521-2
D. R-521-3
E. R-406-3
F.· R-243
1" Dia.
(4)
2Y2"Dia.
(5)
1112"
Dia.
2" Cia.
Flipper
(2)
5/16" Dia. (12)
PANEL TOP PARTS
1. Arch Rail
M-1774
2. Rail Post
C-907
3. Rail Post Cap
C-908
4. BottomArch
P-5871-57
5. Shooter Gauge
P-6359-23
6. Ball Gate (L)
A-1475-10
7. Ball Gate (R)
A-1475-9
8. Plastic Covers(set)
A-2890-137
9. Thumper Cap
A-3713-44 (3)
10. Rollover Button
C-900
(2)·
11. Plastic Guide
C-935-1 (2)
I
12. TargetAssembly
ASE-2911-20 (2)
13. Drop TargetAssembly
ASE-2795-46
.,
14. R.O. Wire & Brk't.
ASE-2806 (7)
15. R.O. Wire
&
Brk't.
ASE-2806-26
16. R.O. Wire & Brk't.
ASE-2806-1
17. Ball GuideWire
M-121-76
18. Ball GuideWire
M-121-75
19. Ball GuideWire
M-121-24
20. Ball GuideWire
M-121-77
21. Ball GuideWire
M-121-18 (2)
22. Ball GuideWire
M-121-43
23. Ball GuideWire
M-121-44
24. Buffer Wire
M-121-53 (2)
25. Flipper & Shaft Assembly ASE-2214-24 (2)
26. OutholeWire
&
Brk't.
ASE-2806-21
27. Minipost
&
Rubber
ASE-2836-1 (4)
28. Ball GuideAssembly
A-3032-33
29. TargetAssembly
ASE-2911-27 (3)
(2)
(2)
