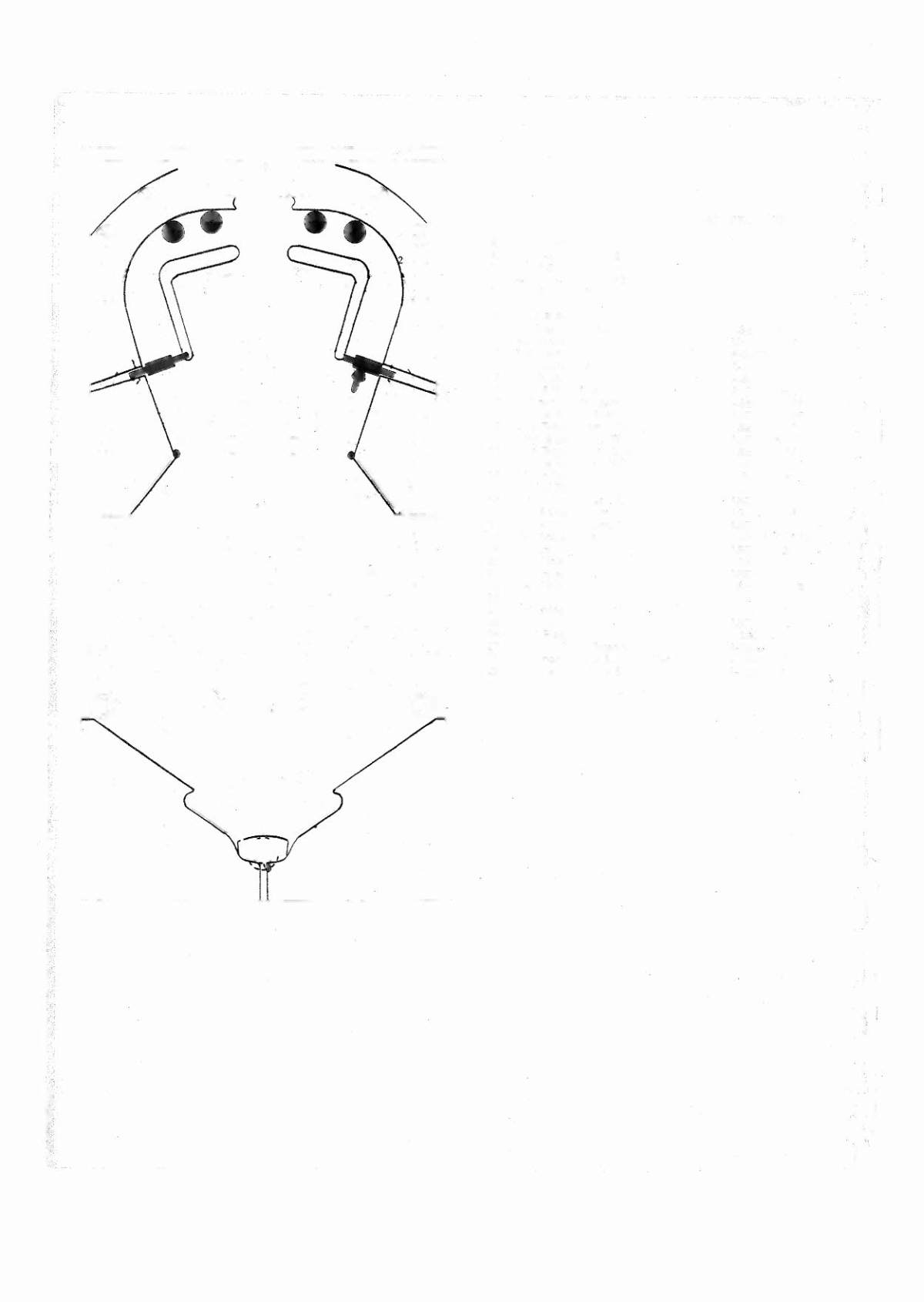

RUBBER PARTS
A. R-533-3 FLIPPER (2)
B. R-521-3 2"
(4)
C. R-243 5/16"
(12)
D. R-414 POST (2)
PANEL TOP
PARTS
1. TwoWay Eject Hole
2. Ball Guide Wire
3. Rebound Bracket
4. Ball Guide Assm.
5. Ball Guide Assm.
6. Gate
&
Wire Assm.
7. Spinner
&
Gate Assm. (L)
8. Spinner
&
Gate Assm. (R)
9. Drop Target Assm. (YWL)
10. Drop Target Assm. (BLUE)
11. Drop Target Assm. (GRN)
12. Drop Target Assm. (RED)
13. Lift-Up Bracket
14. Molded Flipper (WHITE)
15. Wire Actuator Assm. (L)
16. Wire Actuator Assm. (R)
17. Wire Actuator Assm. (L)
18. Wire Actuator Assrn, (R)
19. Eject Hole Assm.
20. Eject Hole Assm.
21. Eject Hole Assm.
22. Eject Hole Assm.
23.
24. Ball Guide Wire
25. Mini Post
26. Clear Plastics
&
Bushing (R)
27. Clear Plastics
&
Bushing (L)
28. Screened Plastics
&
S.C. Holder (L)
29. Screened Plastics
&
S.C. Holder (R)
9
#1262 SPECTRUM
ASE-3054-3
M-121-125 (2)
P-6442-290
A-3032-109
A-3032-110
ASE-2250·flO
ASE-2250·106
ASE-2250·107
ASE-2795-92
ASE-2795-93
ASE-2795-94
ASE-2795-95
P-6442-29t'
A-3994-5 (2)
ASE-2806-37
ASE-2806-38
ASE-2806-9 (4)
ASE-2806-10 (4)
ASE-428-4G
ASE-428-62
ASE-428-63
ASE-428-64
ee)
M-121-18(2)
ASE-2836-2 (4)
A-2&90-162
A-2890-163
A-2890-164
A-2890-165
,f
