50048-CAB

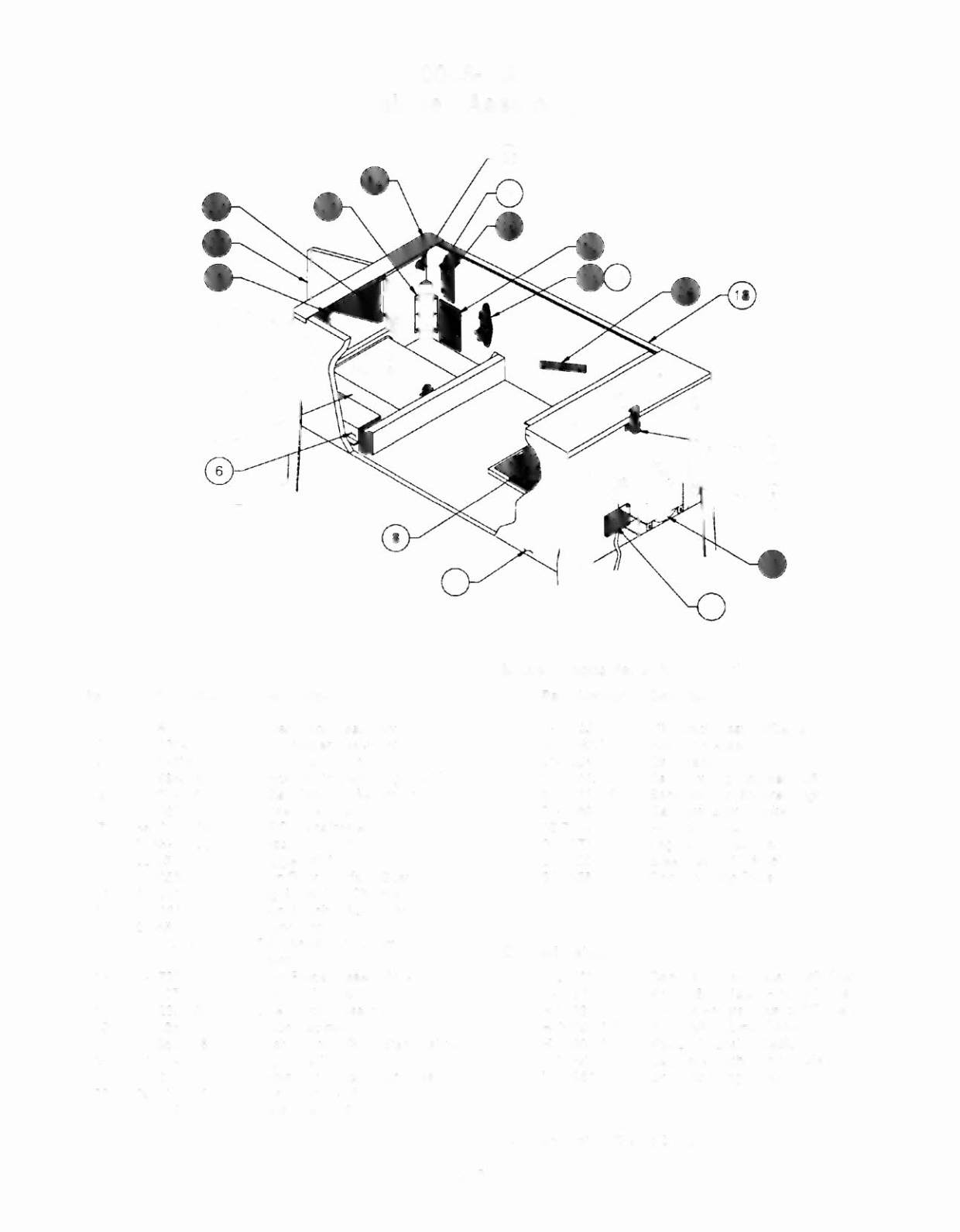

Cabinet Assembly
Miscellaneous Parts (Not Shown)
Item Part Number
Description
Part Number
Description
1 A-16773-1
Lever Guide Assembly
A-17195
Tilt Switch Assy. w/Cable
2 A-21314
Ball Shooter Assembly
A-19562.1
Stay Arm Assembly
3 01-13936
Drip Plate - Narrow
01-12352
Clip Bracket
4 A-16883-4
Flipper Button w/Spring. Red (2)
01-90l1.1-L
Backbox Mtg. Bracket, Left
5 A-20729-5
4-Ball Cashbox Assembly
Ot-901l.1-R Backbox Mtg. Bracket, Right
6 A-20B71
Power Interface Assy.
01-6389-1
Cashbox Lock Bracket
7 5610-14515-00
WPC Transformer
08-7028-T
Playfield Glass
8
5555-12929-00
Speaker, 40, 6·, 25w
08-7377
Leg Leveler Adjuster, 3·
9 20-9347
Toggle latch
20-6500
Steel Ball, 1-1"6· (6)
10 A·20580
Coin Door Interface Board
01-3535
Rod Mounting Plate
11 A-19514
Leg Assembly, Chrome (4)
12 0-12615
Front Molding Assembly
13 20-6502-A
Plumb Bob
14 04-10346
Tilt Mechanism Assembly
Cabinet Cables
15
Cordset
16 A-17316
Opto Flipper Assembly (2)
A-20201
Cable & Jumper Assy., Coin Door
17 01-10714
Line Cord Cover
H·17217.1
Plumb/Bob Mach. Protect Cable
18 A-12359-3
Side Molding Assembly (2)
H-17837-2
Voltage Program Jumper Cable
19 11-1335
Wood Cabinet
H-20599-1.1
WPC '95 Cabinet Cable
20 20-9663-16
Push Button w/Sw.,
Start
(Yellow)
H-19601-1
Power Extension Cable
21
01-11400
Leg Plate (4)
H-20856
Cabinet Switch/Lamp Cable
22 A-18249-1
Cable & Interlock Switch Assy.
H-21281
Skull Mounting Cable
23 09-61000-1
Coin Door-U.S.A.
24 01-' 1408
Plate Spacer (2)
