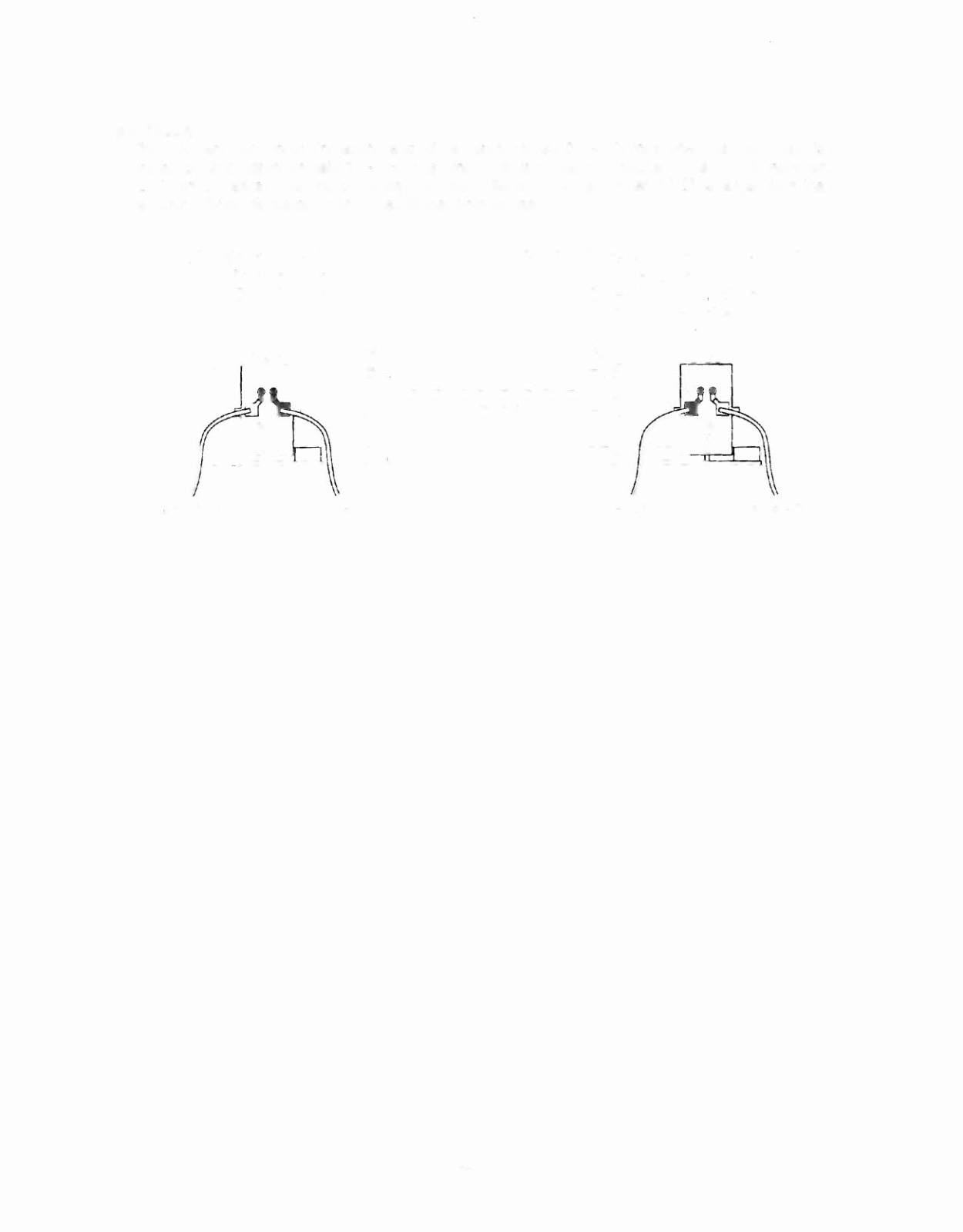

Opto Theory
The opto receiver (Photo Transistor) should be approximately 0.1 - 0.7 volts when the opto beam is
unblocked and approximately 11 - 13 volts when the opto beam is blocked. The opto transmitter
(LED) should always be approximately 1.4 volts.
Note:
The transmitter (LED) Is larger than the
receiver (Photo Transistor); it protrudes further from its case.
LED Board (A-16908)
Transmitter
1.0-1.1 Volts
Photo Transistor Board (A-16909)
Receiver
0.1 -0. 7V Unblocked
11-13V Blocked
Green
o
WHT
BLK
Blue
o
Infrared Roy
Gray-XXX
Block
Gray-Yellow
Orange -
XXX
1-49
