A-9415-2

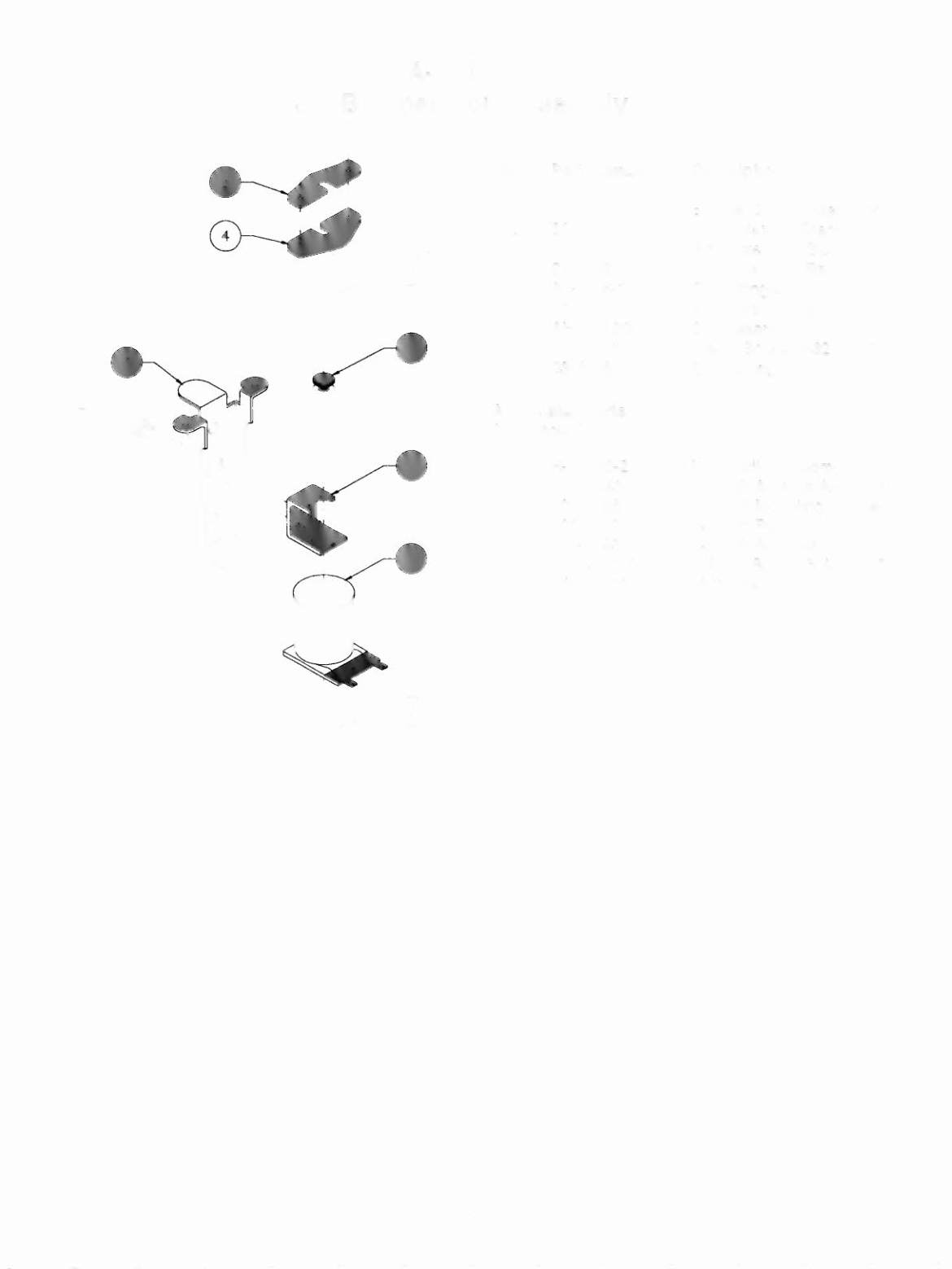

Jet Bumper Coil Assembly
r ..•...............•.....
,
I
I
:
, ,
I
i
,
I
I
:
,
, ,
I
I
,
I
,
,
i
,
:
, , , ,
: , ,
i
'-.......
I
"
,
< ,
,
--
,
-_
Item Part Number
Description
1 8-7417
8racket & Stop Assembly
2 01-1747
Coil Retaining 8racket
3 01-5492
Armature Link, Steel
4 01-5493
Armature Link, 8akeline
5 02-3406-1
Coil Plunger
6 10-326
Armature Spring
7 AE-26-1200
Coil Assembly
8 4006-01017-04
Mach. Screw, 6-32 x 1/4"
9 03-7066
Coil Tubing
Associated Parts:
(Not Shown)
10 8-12030-2
Leaf Switch Assembly
a)
A-16443
Switch & Diode Assembly
b)
01-1168
Switch Mounting Bracket
c)
01-3670
Switch Plate
d)
03-7395
Switch Actuator
e)
4005-01003-12
Mach. Screw, 5-40 x 3/4"
f)
4405-01117-00
Nut 5-40 Hex.
2-21
