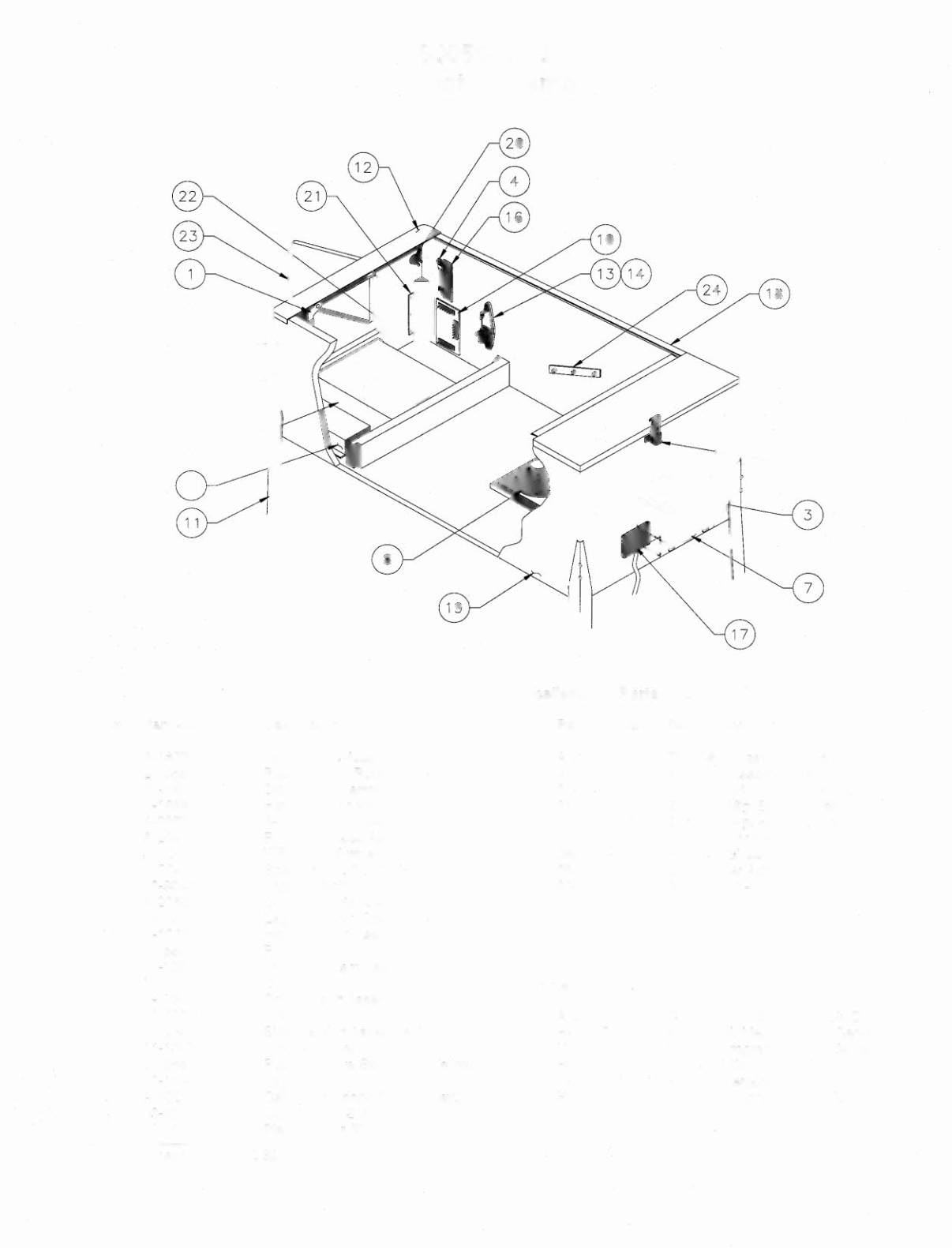

50059-CAB
Cabinet Assembly
<. : .
17
Miscellaneous Parts
(Not Shown)
Item Part Number
Description
Part Number
Description
1 A-16773
Lever Guide Assembly
A-17195
Tilt Switch Assy. w/Cable
2 20-9663-B-4
Push Button, Round
A-19562.1
Stay Arm Assembly
3 01-13936
Drip Plate - Narrow
01-12352
Clip Bracket
4 A-16883-4
Flipper Button w/Spring (2)
01-9011.1-L
Backbox Mtg. Bracket, Left
5 A-20729-5
4-Ball Cashbox Assembly
01-9011.1-R Backbox Mtg. Bracket, Right
6 A-20871
Power Interface Assy.
01-6389-1
Cashbox Lock Bracket
7 5610-14515-01
WPC Transformer
08-7028-T
Playfield Glass
8 5555-12929-00
Speaker, 4n, 6", 25w
08-7377
Leg Leveler Adjuster, 3"
9 20-9347
Toggle Latch
20-6500
Steel Ball, 1-1/16" (4")
10 A-20580
Coin Door Interface Board
11
A-19514
Leg Assembly, Chrome (4)
12 D-12615
Front Molding Assembly
13 20-6502-A
Plumb Bob
14 04-10346
Tilt Mechanism Assembly
15
Cordset
Cabinet Cables:
16 A-17316
Opto Flipper Assembly (2)
17 01-10714
Line Cord Cover
A-20201
Cable & Jumper Assy., Coin Door
18 A-12359-3
Side Molding Assembly (2)
H-17217.1
Plumb/Bob Mech. Protect Cable
19 11-1347
Wood Cabinet
H-17837-2
Voltage Program Jumper Cable
20 20-9663-16
Push Button w/Sw.,
Start
(Yellow)
H-20599-1 .1 WPC '95 Cabinet Cable
21 01-11400
Leg Plate (4)
H-19601-1
Power Extension Cable
22 A-18249-3
Cable & Interlock Switch Assy.
H-21838
Cabinet Switch/Lamp Cable
~
23 09-61000-1
Coin Door-U.S.A.
24 01-11408
Plate Spacer (2)
• See Application Chart p.2-39.
2-3
