A-9415-2

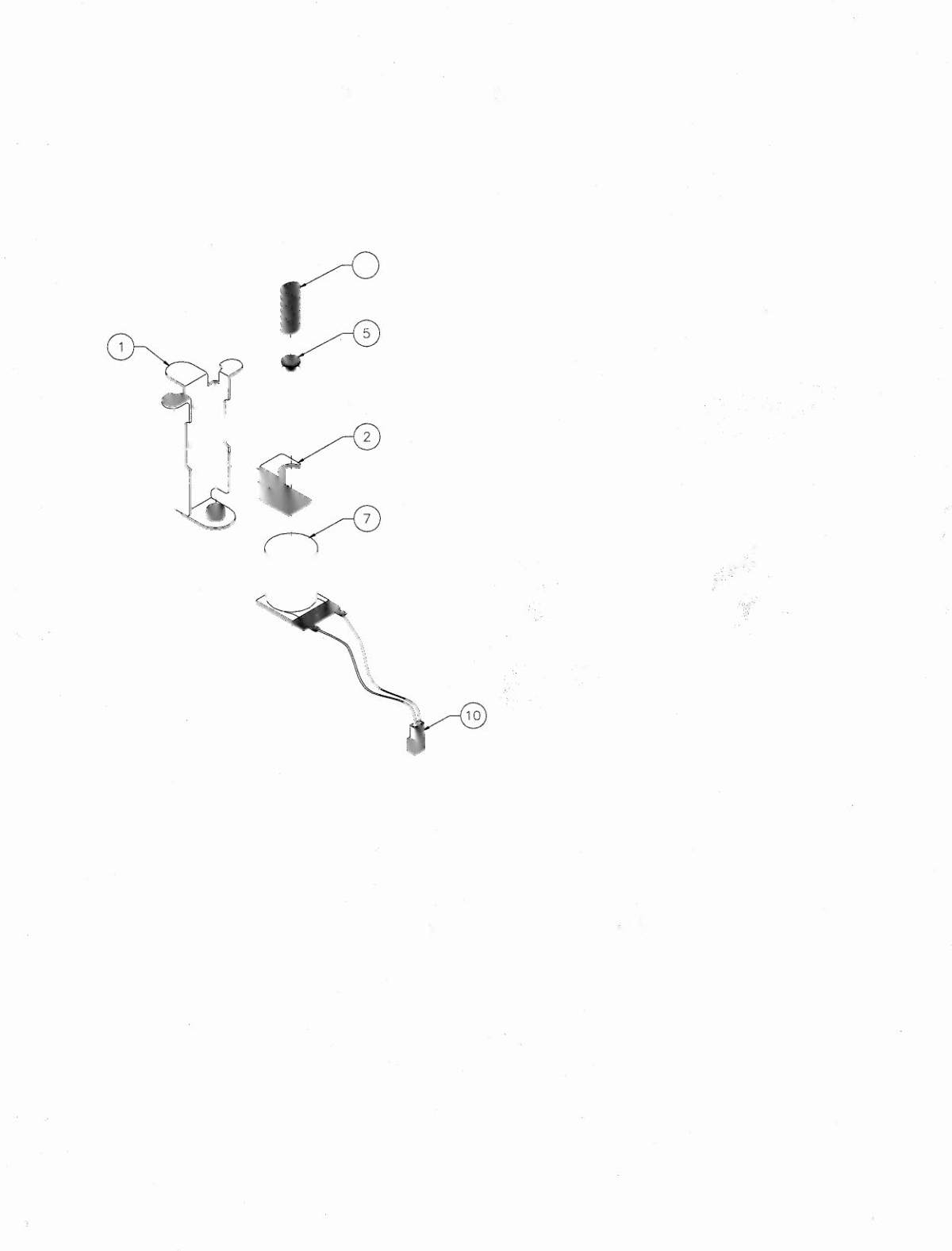

Jet Bumper Coil Assembly
,
, ,
f.\
i",~
~
~
Item Part Number
Description
1 04-10888
Bracket
&
Stop Assembly
2 01-1747
Coil Retaining Bracket
3 01-5492
Armature Link, Steel
4 01-5493
Armature Link, Bakeline
5 02-3406-1
Coil Plunger
6 10-326
Armature Spring
7 AE-26-1200
Coil Assembly
8 4006-01017 -04 Mach. Screw, 6-32 x 1/4"
9 03-7066
Coil Tubing
10 H-19523
Cable
1',
<,
~/
•••••••......••..•.......••I
"
,
"
2
Associated Parts:
(Not Shown)
11 B-12030-2
a)
A-16443
b)
01-1168
c)
01-3670
d)
03-7395
e)
4005-01 003-12
f)
4405-01117-00
Leaf Switch Assembly
Switch
&
Diode Assembly
Switch Mounting Bracket
Switch Plate
Switch Actuator
Mach. Screw, 5-40 x 3/4"
Nut 5-40 Hex.
:~.-.
10
A-9415-3
Jet Bumper Coil Assembly
(Same as
A-941S-2
except for the following item):
Item Part Number Description
10 H-19523-1
Cable
