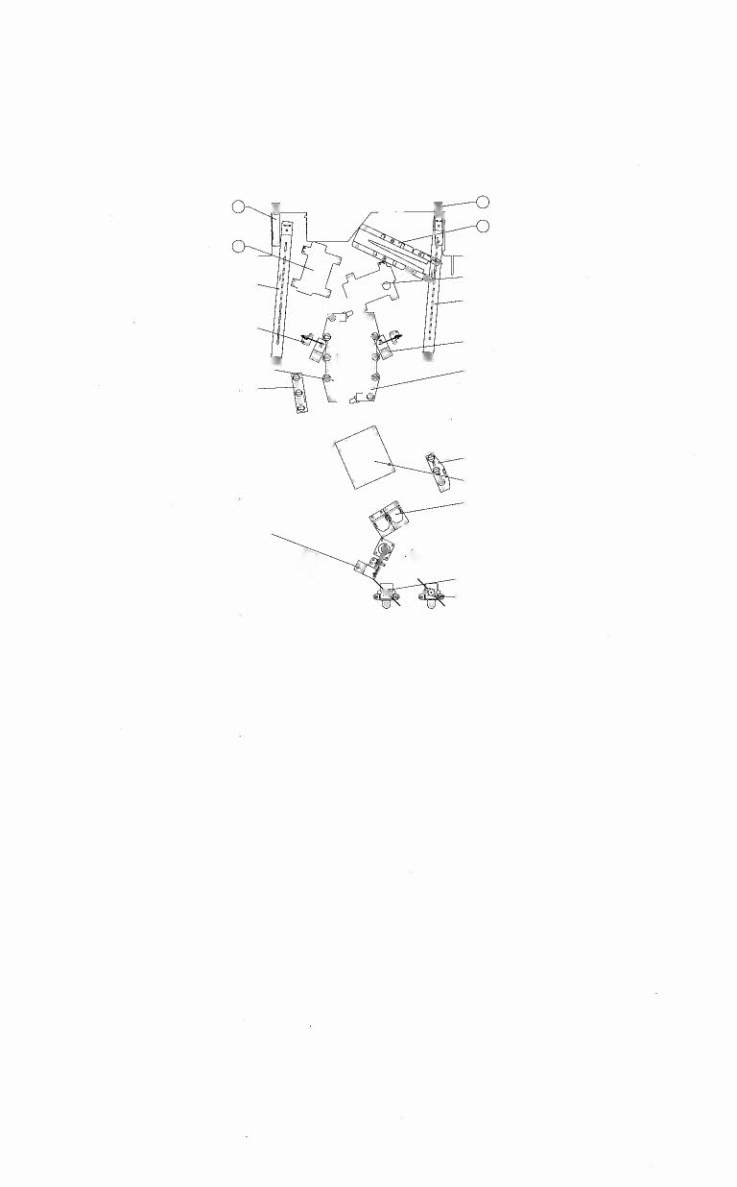

LOWER PLAYFIELD PARTS
Item Part Number Description.
Item
Part Number Description.
No.
No.
01-9211
Playfield Hanger Brackel
16 B-9361-R-1 Ball Eject Assembly. Left
2 01-11781
Leg Support
B-9362-R-3 Coil & Bracket Assembly
3 A-19963
Outhole Ball Trough Assy.
17 A-20235
Ball Popper Assembly
4 A-15849-R-2 Flipper Assembly, Right
18 A-20189
EMI Motor w/Delay Brake PCB
5 A-17811
Kicker Arm (Slingshot) Assy.
19 A-20038
Turbo Motor Assembly
B-9362-R-3 Coil & Bracket Assembly
20 A-20159
Ball Popper Assembly
10-128
Spring
21 A-20104
4 Lamp P.C.B. Assembly
6 A-20103
6 Lamp P.C.B. Assy.
22 A-20450
Kicker Assembly, Left
7 A-14876-R-3 Flipper Assembly, Right
A-20451
Coil & Bracket Assembly
8 A-20105
3 Lamp P.C.B. Assembly
10-128
Spring
9 A-15849-L -2 Flipper Assembly, Left
23 A-20107
3 Lamp P.C.B. Assembly
10 A-18159
10-0pto P .C.B. Assembly
24 A-19978
Pit Ramp Diverter Assembly
11 A-19820-1
Illuminated Target Assembly
25 A-20106
3 Lamp P.C.B. Assembly
A-20401
ilium. Target P.C.B. & Brkt,
26 A-17811
Kicker Arm (Slingshot) Assy.
12 A-9415-2
Jet Bumper Coil Assembly
B-9362-L-2 Coil & Bracket Assembly
13 A-17949.1-2 Playfield Slide Assembly, Righi
27 A-17949.1-1 Playfield Slide Assembly, Left
14 A-20108
3 Lamp P.C.B. Assembly
15 A-15542
Motor EMI P.C.B. Assembly
