PINBALL GAME ASSEMBLY INSTRUCTIONS
1. Open the shipping container; remove all cartons, parts, and other items, and set them aside.
2. Place cabinet on a support and attach rear legs (after installing leg levellers), using leg bolts. Leg
levellers and leg bolts are both provided among the parts in the cash box.
3. Attach the front legs (after installing leg levellers), using leg bolts. See Figure 3 for detailS.
See
Detail View
--
C-10843
Leg
_-tt-08-7377
Leg Leveller
--W--Shaft
Foot Pad
Detail View-
Leg Leveller

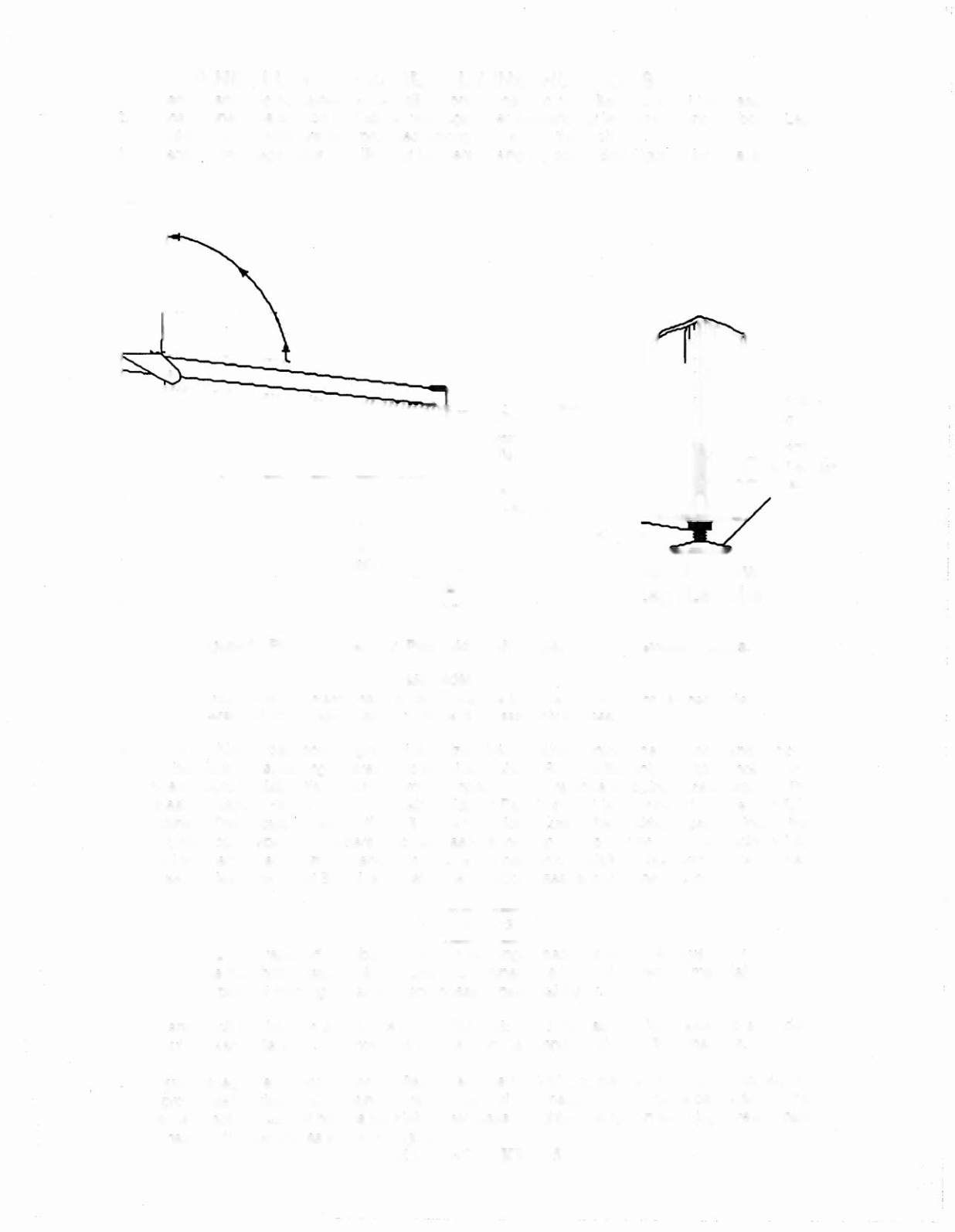

Figure 3. Pinball Assembly, Playfleld Pitch Angle, and Leg Leveller Details.
©~lUJ'ii'Il(O)lNI
Ensure that the interconnecting cables are free to move (not kinked or pinched). Be
careful not to damage wires at any stage of the assembly process.
4. Raise the hinged backbox upright and stabilize it into position. Unlock the backbox, and remove
the backbox glass, storing it carefully to avoid scratches. Remove the shipping block holding the
Insert Board. Unlatch the Insert Board and open it, then remove shipping screw securing the
Speaker/Display Panel. Lift the Speaker/Display Panel up and lay it forward on the playfield
cabinet. This allows access to the bolt holes used for securing the backbox upright. Install the
mounting bolts, split lockwashers, and flat washers through the bottom holes of the backbox into
the threaded fasteners in the cabinet to secure the backbox. Install the Speaker/Display Panel,
close and latch the Insert Board, and install the backbox glass, and lock the backbox.
( WARNING)
NEVER.
transport a pinball game with the hinged backbox erect.
Always
lower
the backbox forward onto the playfield cabinet on a layer of protective material
to prevent marring or damage and possible personal injury.
5.
Extend each leg leveller
slightly
below the leg bottom, so that all four foot pads are extended
about the same distance.
Remove the cabinet from its support and place it on the floor.
6.
Adjust the leg levellers for proper playfield level (side-to-side) .aaQplayfield pitch angle (incline) of
approximately 6 degrees. (Again, it is recommended that these measurements be made ON the
playfield, not the cabinet nor the playfield cover glass.) Tighten the nut on each leg leveller shaft
to maintain this setting, as shown in Figure 3.
EARTHSHAKER 5
