BOTIOMVIEW

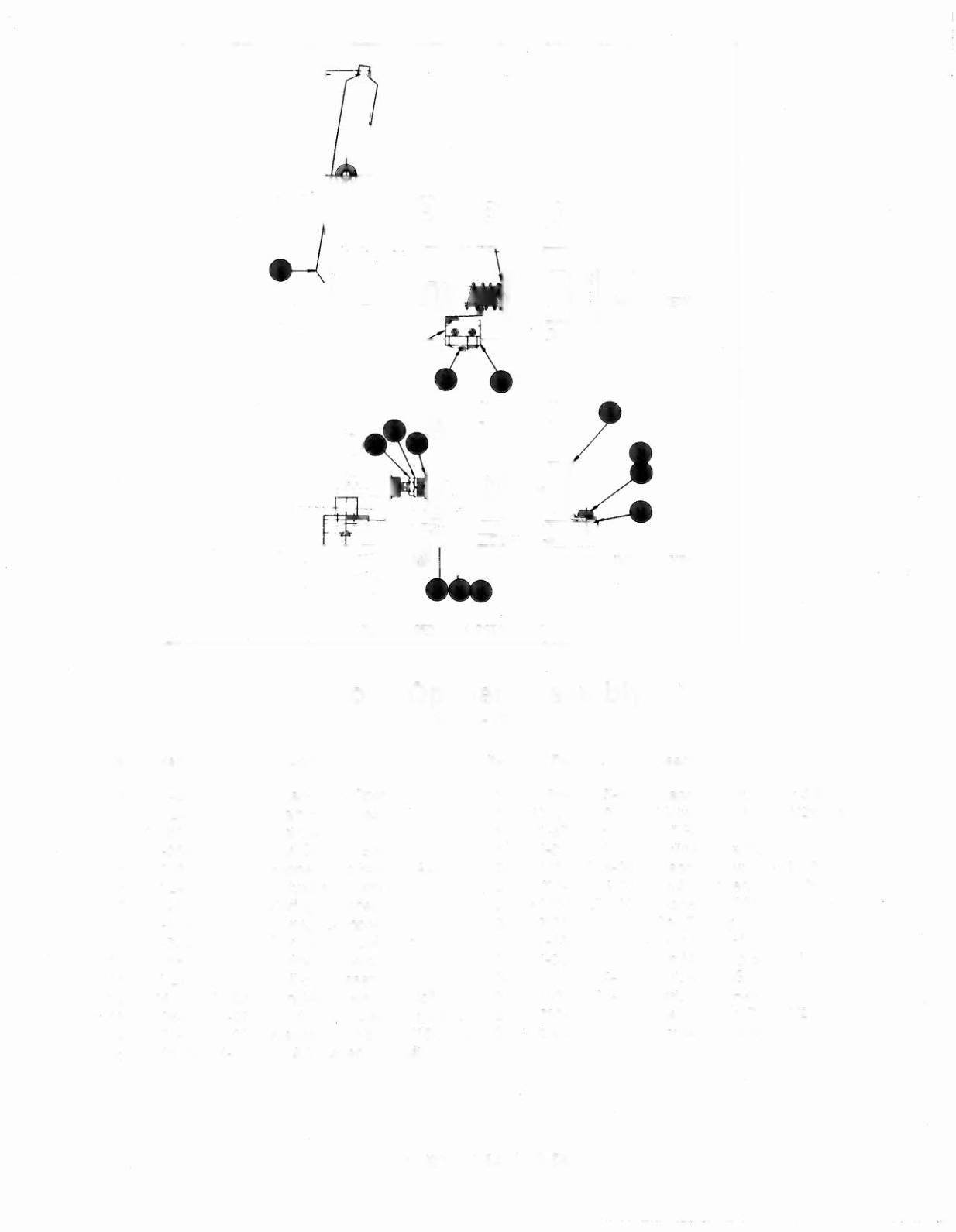

ZONE OPENER ASSEMBLY
Zone Opener Assembly
pIn
C-12429
Item Part No.
Description
Item Part No.
Description
1 02-4~51
Shaft-Zone Opener
16 4002-01005-06 Mach. Screw, 2-56 x
3/8
2 C-12428
Main Frame Assy
17 4700-00103-00 Flatwasher,
17/64x1/2x28ga.
3 03-8090
Flat Cam
18 20-8712-25
"E"-Ring,
1/4"
Shaft
4 01-8639
Coil Support Bracket
19 20-8790-13
Nylined Bearing
5 A-10821
Flipper Stop Bracket Assy
20 4010-01008-06 Mach. Screw, 10-32 x
3/8
6
A-12431
Actuator Assembly
21 4701-00004-00 Lock Washer, #10 Split
7 10-401
Spring, Extension
22 5070-06258-00 Diode, 1N4001, 1.0A.
8 10-406
Spring, Compression
23 03-7066
Coil Tubing
9 10-392
Spring, Compression
24 02-4304
Cam Pivot Pin
10 01-8600
Switch Insulator
25 01-8640
Pin Mounting Bracket
11 AE-23-800
Coil Sub-Assembly
26 4408-01119-00 Nut, 8-32 ESN
12 5647 -12073-06 Mini Misro-Switch w/Rolier
27 4410-01130-00 Nut, 10-32 Hex. Nut
13 4006-01027-06 Mach. Screw, #6-32 x
3/8
28 4700-00060-00 Flat Washer, 7/32x1/2x16ga.
14 4700-00021-00 Flatwasher,
13/64x7/16x21
gao 29 02-4302
Threaded Plunger
15 4701-00024-00 Lock Washer, #2 Split
