Jet Bumper Assembly
pIn 8-9414
Item Part No.
Description
&
1 A-4754
Bumper Ring Assy
0-- -
'-.,- ,
.0
-:
/
2 03-6009-A5 Bumper Base-Wht
3 03-6035-5 Bumper Wafer-Wht
4 03-7443-5 Bumper Body-Wht
<D~
5
10-7
Spring-Jet Bumper
6 A-11199
Socket
&
Bulb Assy
_.
CD--
Jet Bumper Coil Assembly
pIn 8-9415-1
Item Part No.
1
2
3
4
5
6
7
8
9
B-7417
01-1747
01-5492
01-5493
02-3406-1
10-326
AE-23-800
4006-01017-04
03-7066
Description
Bracket & Stop Assy
Coil Retaining Bracket
Armature Link, Steel
Armature Link, Bakelite
Coil Plunger
Armature Spring
Coil Assembly
Mach. Screw, 6-32 x 1/4
Coil Tubing
Eject Hole Arm Assembly
pIn
8-9361-R
Item Part No.
1 A-6949-R
2 A-6950-R
3 A-7471-R
4 A-8050
5 10-362
6 12-6227
7 4700-00030-00
8 4700-00103-00
Description
Spring Plate Assy
Mounting Bracket Assy
Eject Cam Assembly
Plunger Assembly
Spring-Eject (Plain)
Hairpin Clip
Flat Washer, 17/64 x 1/2 x 15ga.
Flat Washer, 17/64 x 1/2 x 28ga.
Associated Parts For Eject Hole
B-11203-L-1
B-7572-1
01-8-508-S
4006-01017-06
4406-01119-00
AE-26-1500
03-7066
Coil & Bracket Assembly
Bracket & Stop Assembly
Coil Retaining Bracket
Mach. Screw, 6-32 x 3/8
Nut, 6-32 ESN
Coil Assembly
Coil Tubing

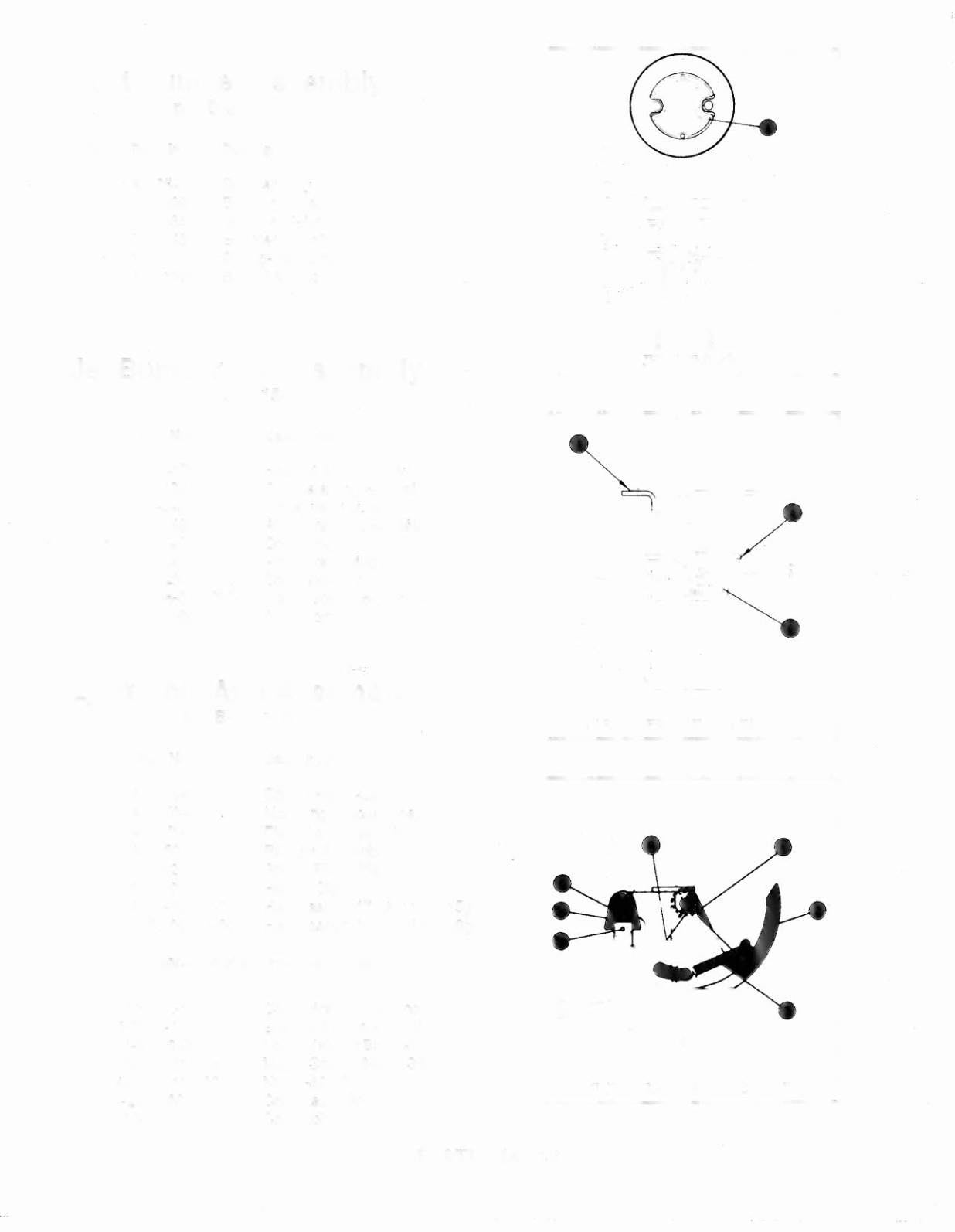

JET BUMPER
JET BUMPER COIL ASSEMBLY
EJECT HOLE ARM ASSEMBLY
EARTHSHAKER 56
