A-19008

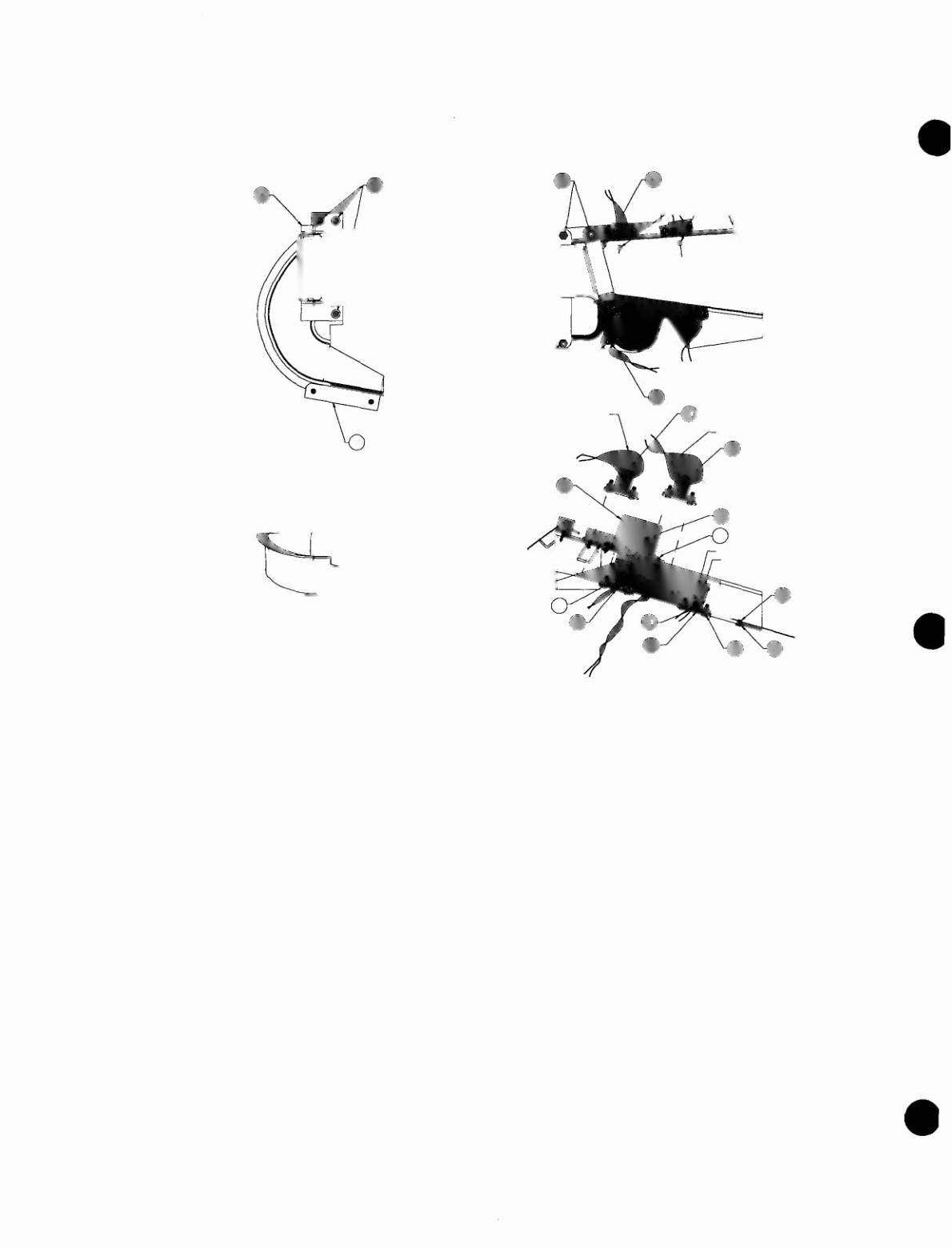

Engine Ramp Assembly
ENGINE
q]
SWITCH
~
16
17
OPTO HARNESS(RIGHT SIDE)
17
OPTO HARNESS(LEFT SIDE)
FLASHER
WIRES
Item Part No.
Description
Item Part No.
Description
1.
01-13130
Skirt-Engine
12.
07-6688-8
Rivet,
7/32"
2.
07-6688-19N Rivet,
9/32"
13.
4608-01 081-07 H-F #8 x
7/16"
3.
4700-00003-00 Flatwasher,
1/8x9/32x21ga.
14.
4106-01013-06 Sh. Metal Screw, #6 x
3/8"
4.
A-14265-13
Recpt. - Skt. Assy., Clear
15.
A-19110
Frontgate
5.
03-8171-9
T-L Mini Dome, Trans. Red
16.
A-19099
Backgate
6.
A-19002
Flopgate Assembly
17.
H-19219
Cable-Optos
7.
01-13240
Opto Plate 1-Eng. Ramp
18.
H-18219-1
Cable-Flasher
8.
01-13239
Opto Plate 2-Eng. Ramp
19.
4006-01017-05 Mach. Screw,
6-32x5/16"
9.
A-16908
Opto LED Assembly-RTV
20.
H-18214-3
Cable - Engine Switch
10.
A-16909
Opto Photo Trans. Assy., -RTV 21.
24-8802
Bulb #906
11.
A-19092
Ramp Switch - Engine
22.
03-9213
Ramp
•
