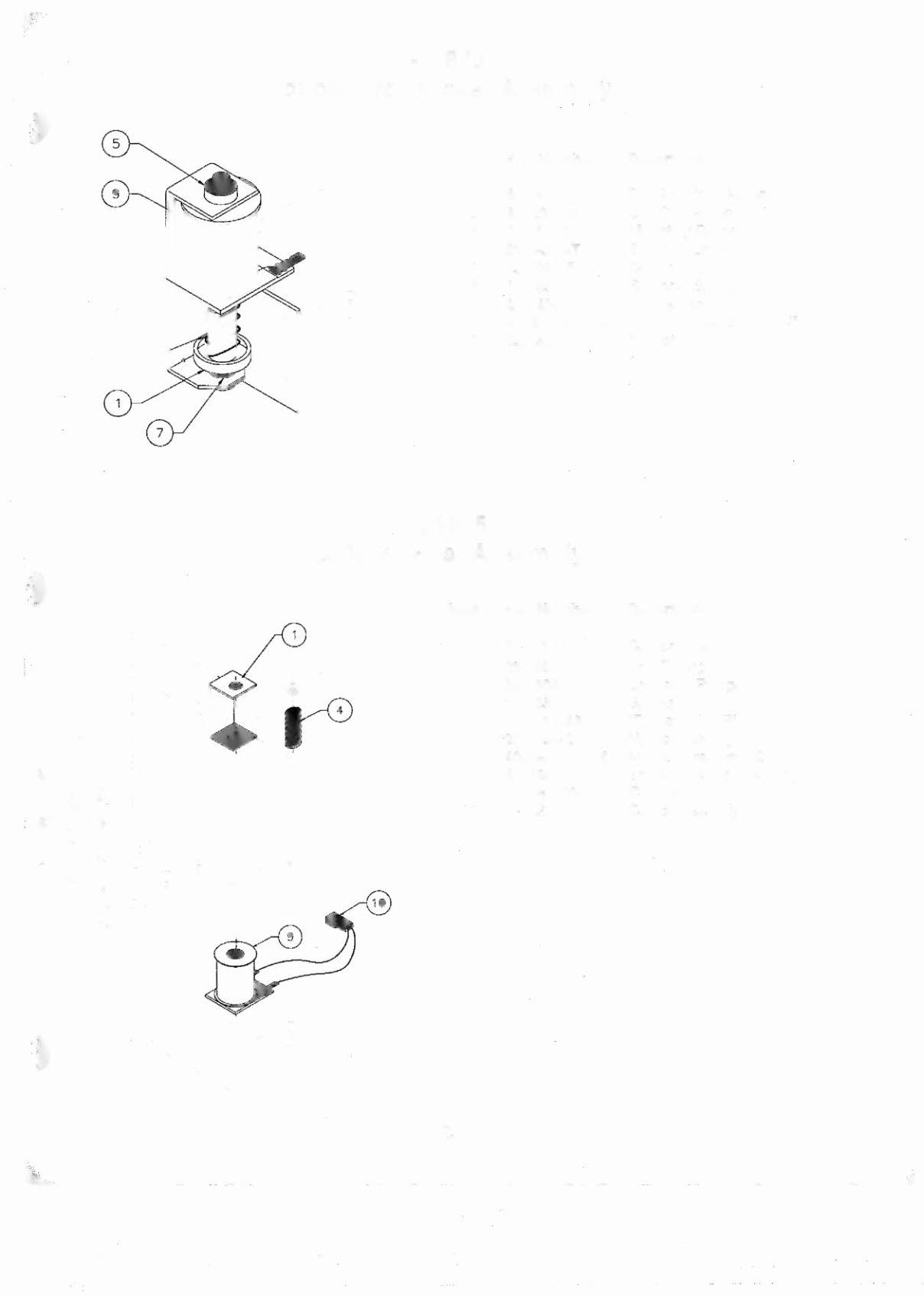

Bottom Arch Kicker Assembly
Item Part Number
Description
2
1
A-6306-2
Bell Armature Assembly
2
AE-23-800
Coil Sub-Assembly
3
01-11273
Mounting Bracket
4
01-8-508-T
Solenoid Bracket
5
03-7067-5
Coil Tubing
6
10-135
Solenoid Spring
7
23-6420
Rubber Grommet
8
4008-01017-04
Mach. Screw, 8-32 x 1/4"
9
03-8523
Insulator
A-21825
·Up/Down Post Assembly
Item Part Number
Description
1
01-14185
Coil Bracket
2
03-7066
Coil Tubing
3
02-5308.1
Up/Down Plunger
4
10-303
Spring
5
20-8712-43
"E" Retaining Ring
6
20-8790-2
Nyliner Bearing
7
4006-01003-04
Mach. Screw, #6-32 x
1,4"
8
A-17808
Bracket
&
Stop Assembly
9
AE-26-1500
Coil Assembly
10
H-19523
Cable Assembly
