10. Move the game into the desired location; recheck the level and pitch angle of the playfield.
12 Install playfield mylars if desired.
11. Verify that the
required number
of balls are installed in the game. This game uses 4 balls.
NOTE:
This playfield has a special hardcoat surface and does not require a full protective mylar.
However, mylars can be purchased through your local Bally Distributor.
Specify part number
03-9486-1 for full playfield mylar.
13. Clean and reinstall the play field cover glass, reversing the procedure of step 7.
14. To attach line cord, remove envelope stapled to the inside cabinet (near cashbox). Remove the four
Phillips-head screws that mount the line cord cover plate to the rear cabinet. Match the prongs on the
plug with the holes in the receptacle and push line cord securely into place. Make sure cord aligns
with the indentation of plate (indentation should point toward bottom of cabinet). Remount line cord
cover plate.
If desired, tamper resistant screws are provided in an envelope marked "Security
Screws" (located in cashbox) to remount cover plate.

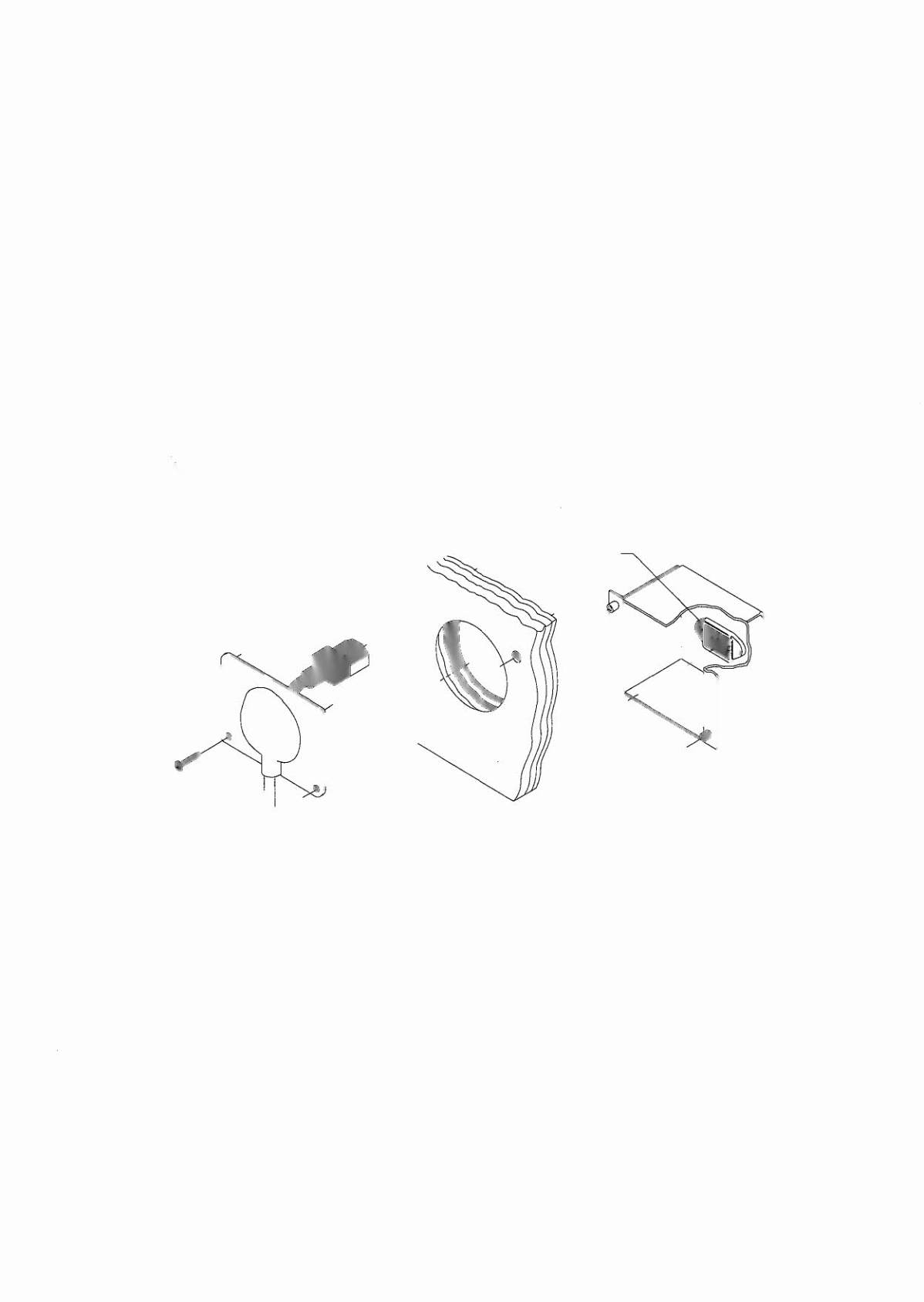

(Port of cabinet shown
far reference only)
~
~
...
,
l
U-----'-
Line Cord & Plug
Tamper-resistant
Screw
15. IMPORTANT: Fill out and return the registration card.
