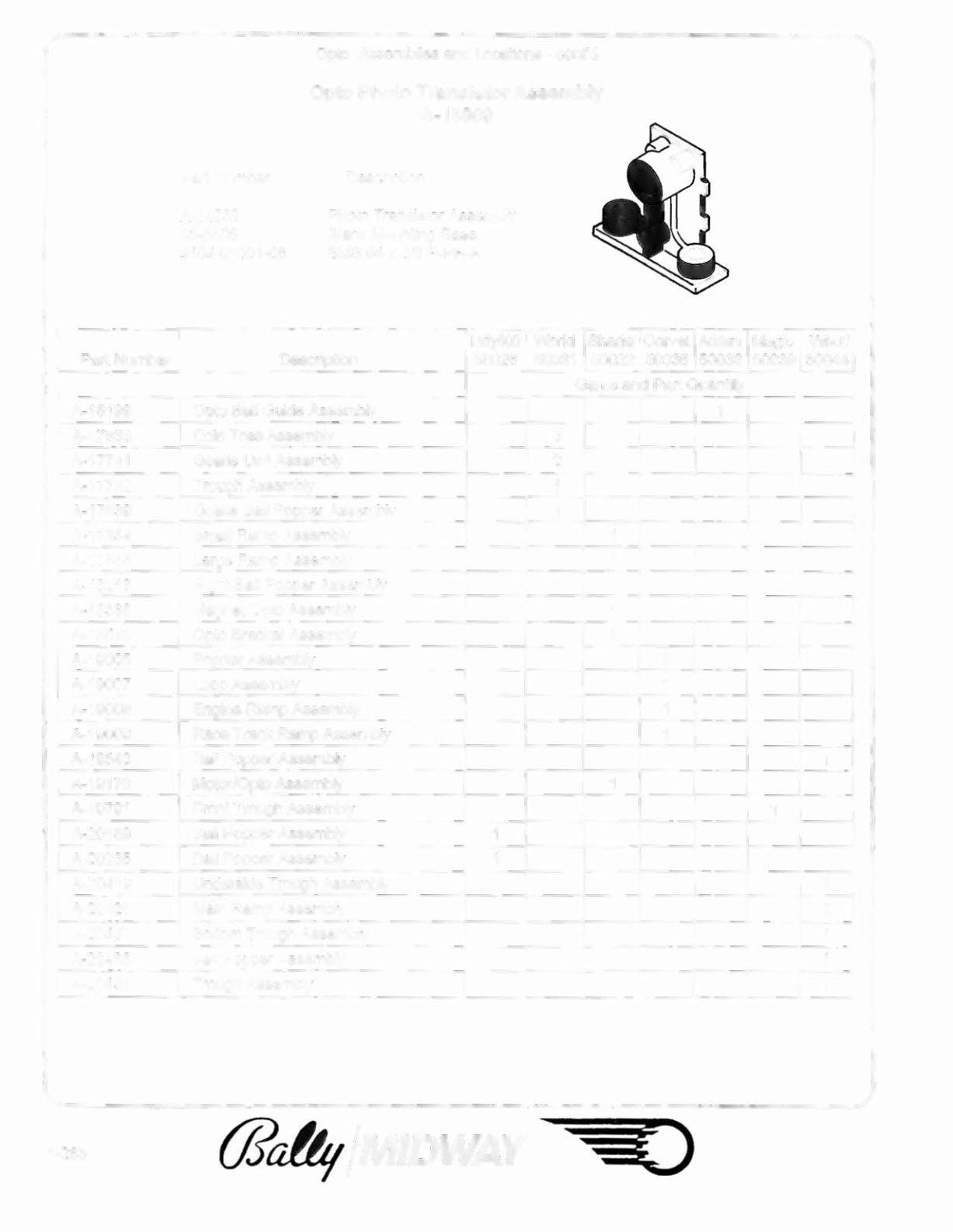

Page 72 - BallyMidway GREY Parts Catalog 16-9562-A

r Opto Assemblies and Locations - cont'd
Opto Photo Transistor Assembly
A-16909
Part Number Description
A-14232
03-8506
4104-01001-06
Photo Transistor Assembly
Black Mounting Base
SMS #4 x 3/8 P-PH-A
IndySOO World Shadw Corvet Addam Magic Who?
Part Number Description 50026 50031 50032 50036 50038 50039 50044
Game and Part Quantity
A-15199 Opto Ball Guide Assembly 1
A-17633 Coin Toss Assembly 3
A-17741 Goalie Unit Assembly 2
A-17742 Trough Assembly 1
A-17839 Goalie Ball Popper Assembly 1
A-17854 Small Ramp Assembly 1
A-17855 Large Ramp Assembly 1
A-18213 Right Ball Popper Assembly 1
A-18388 Magnet Opto Assembly 1
A-18518 Opto Bracket Assembly 1
A-19005 Popper Assembly 1
A-19007 Loop Assembly 1
A-19008 Engine Ramp Assembly 1
A-19009 Race Track Ramp Assembly 1
A-19543 Ball Popper Assembly 1
A-19170 Motor/Opto Assembly 1
A-19791 Front Trough Assembly 1
A-20159 Ball Popper Assembly 1
A-20235 Ball Popper Assembly 1
A-20419 Underside Trough Assembly 1
A-20420 Main Ramp Assembly 2
A-20487 Bottom Trough Assembly 1
A-20488 Ball Popper Assembly 1
A-20491 Trough Assembly 1
1-28b (jJaI!&j /MIDWAY
