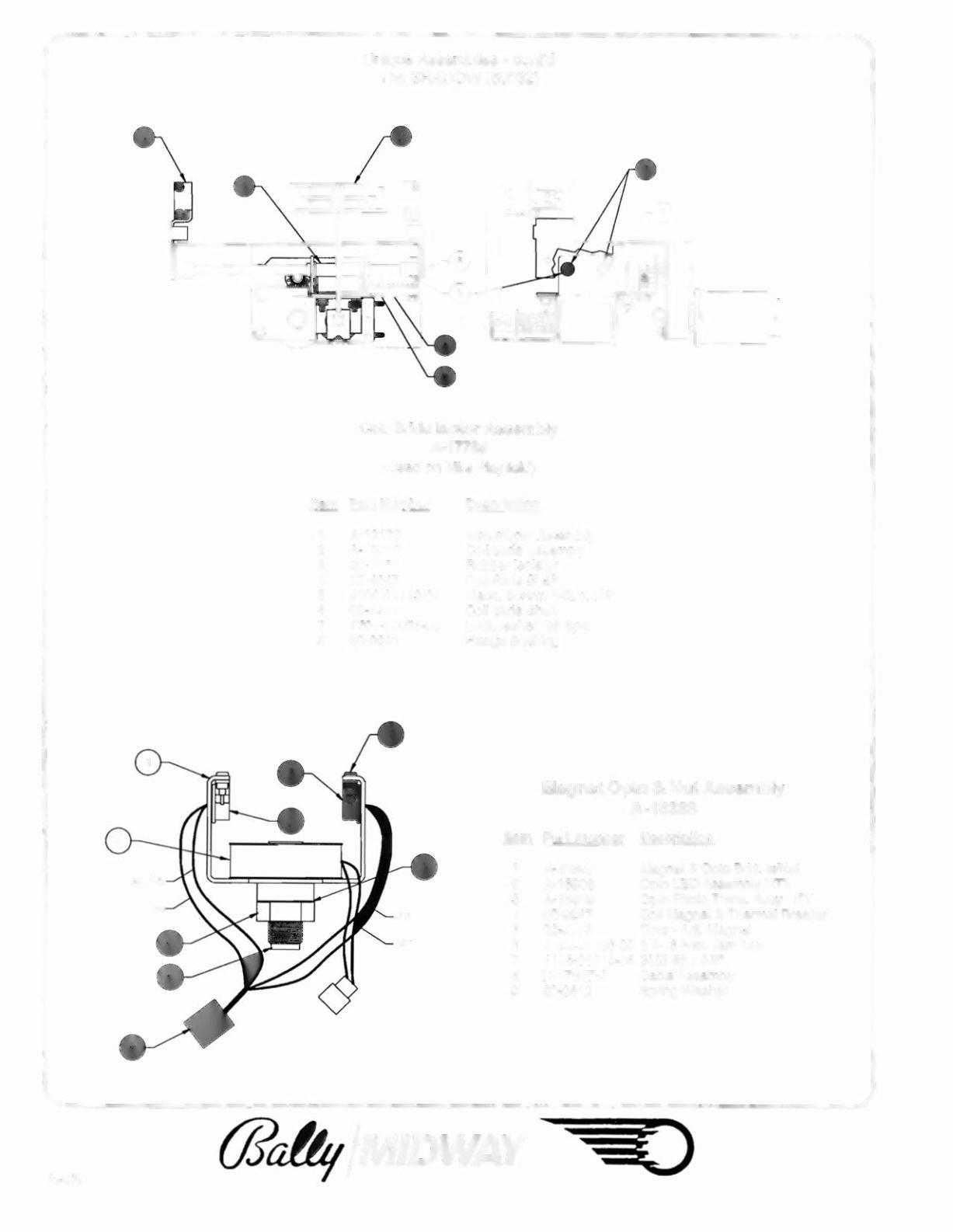

Unique Assemblies - cont'd
The SHADOW (50032)
Coil Slide Motor Assembly
A-17789
(Used on Mini Playfield)
Item part Number
Description
t
A-19170
Motor/Oplo Assembly
2 A-19070
CoiVSlide Assembly
3
20-10121
Aubber Isolator
4 02-4947
Coil Slide Shaft
5
4008-01113-04 Mach. Screw, 8-32 x 1/4"
6 02-4947
Coil Slide Shaft
7 4701-00003-00 Lockwasher, #8 Split
8
20-9610
Flange Bushing
Magnet Opto & Nut Assembly
A-18388
Item Part Number
Description
1 A-16387
Magnet & Opto Brkt. wlNut
2 A-16908
Opto LED Assembly-ATV
3 A-16909
Opto Photo Trans. Assy_RTV
4 20-9247
Coil Magnet & Thermal Breaker
5
02-4n3
Core - Adj. Magnet
6 4428-01135-00 3/4-16 Hex. Jam Nut
7 4106-01013-06 8MS #6 x 3/8"
8 H-17607-4
Cable Assembly
9 20-9612
Spring Washer
5-78
