Page 312 - BallyMidway GREY Parts Catalog 16-9562-A

SEO Version

Trough Ball Guide Assemblies - cont'd
f

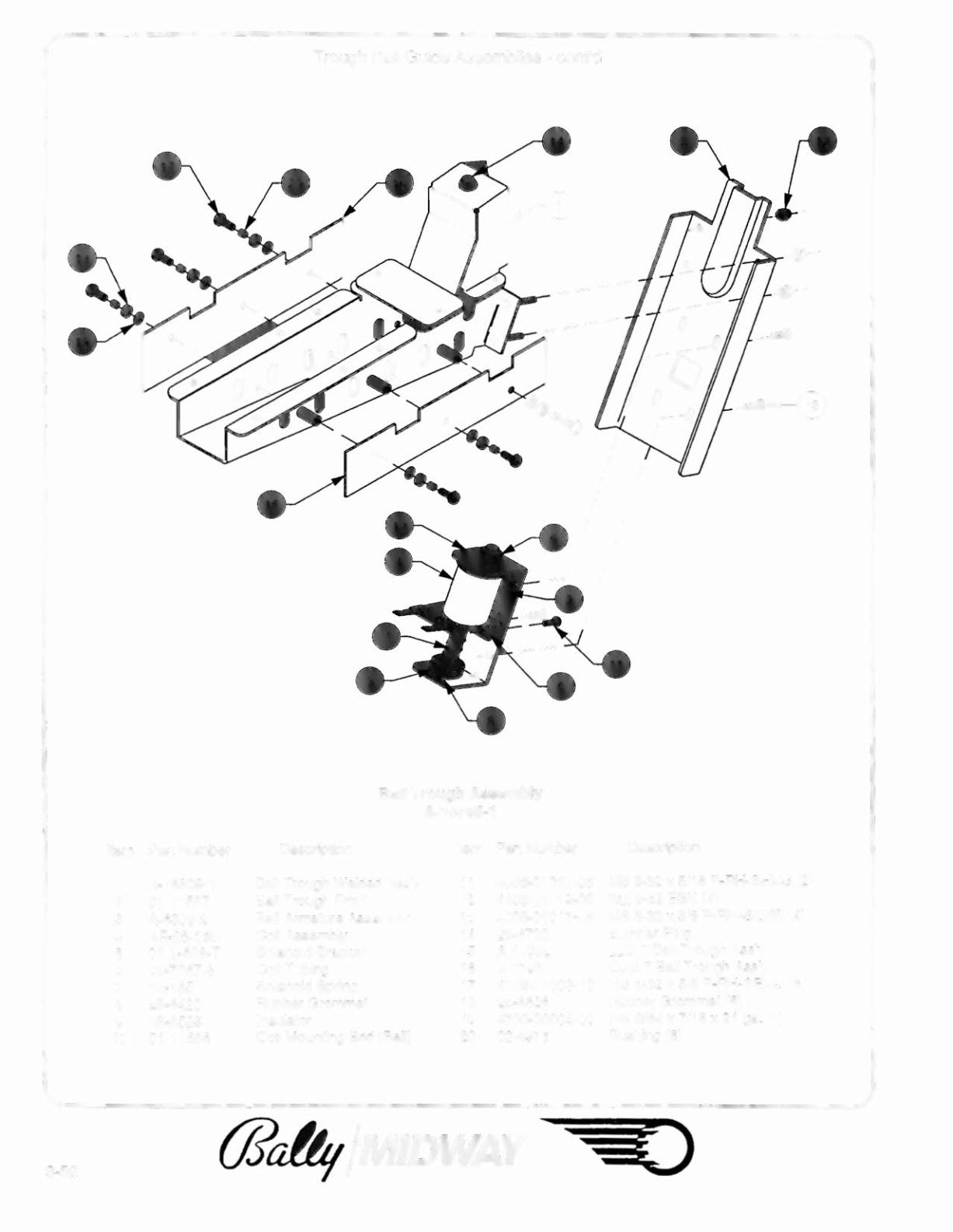

Ball Trough Assembly
A-16765-1
Item Part Number
Description
Item Part Number
Description
1 A-16809-1
Ball Trough Welded Ass'y
11
4008-01017-05 MS 8-32 x 5/16 P-RH-SEMS (2)
2 01-11587
Ball Trough Front
12 4408-01119-00 Nut 8-32 ESN (4)
3 A-6306-2
Ball Armature Assembly
13 4008-01017-06 MS B-32 x 318P-RH-SEMS (4)
4
AE-26-1500 Coil Assembly
14 23-6702
Bumper Plug
5 01-8-508-T Solenoid Bracket
15 A-17982
LED 7 Ball Trough Ass'y
6 03-7067-5
Coil Tubing
16
A-179Bl
Opto 7 Ball Trough Ass'y
7 10-135
Solenoid Spring
17 4006-01003-10 MS 6-32
X
5/8 P-RH-SEMS (6)
8 23-6420
Rubber Grommet
18 23-6626
Rubber Grommet (6)
9
03-8523
Insulator
19 4700-00004-00 F'N
9/64
x 7/16 x 21 ga. (6)
10 01-11586
Coil Mounting Brld (Bell)
20 02-4975
Bushing (6)
3-52
