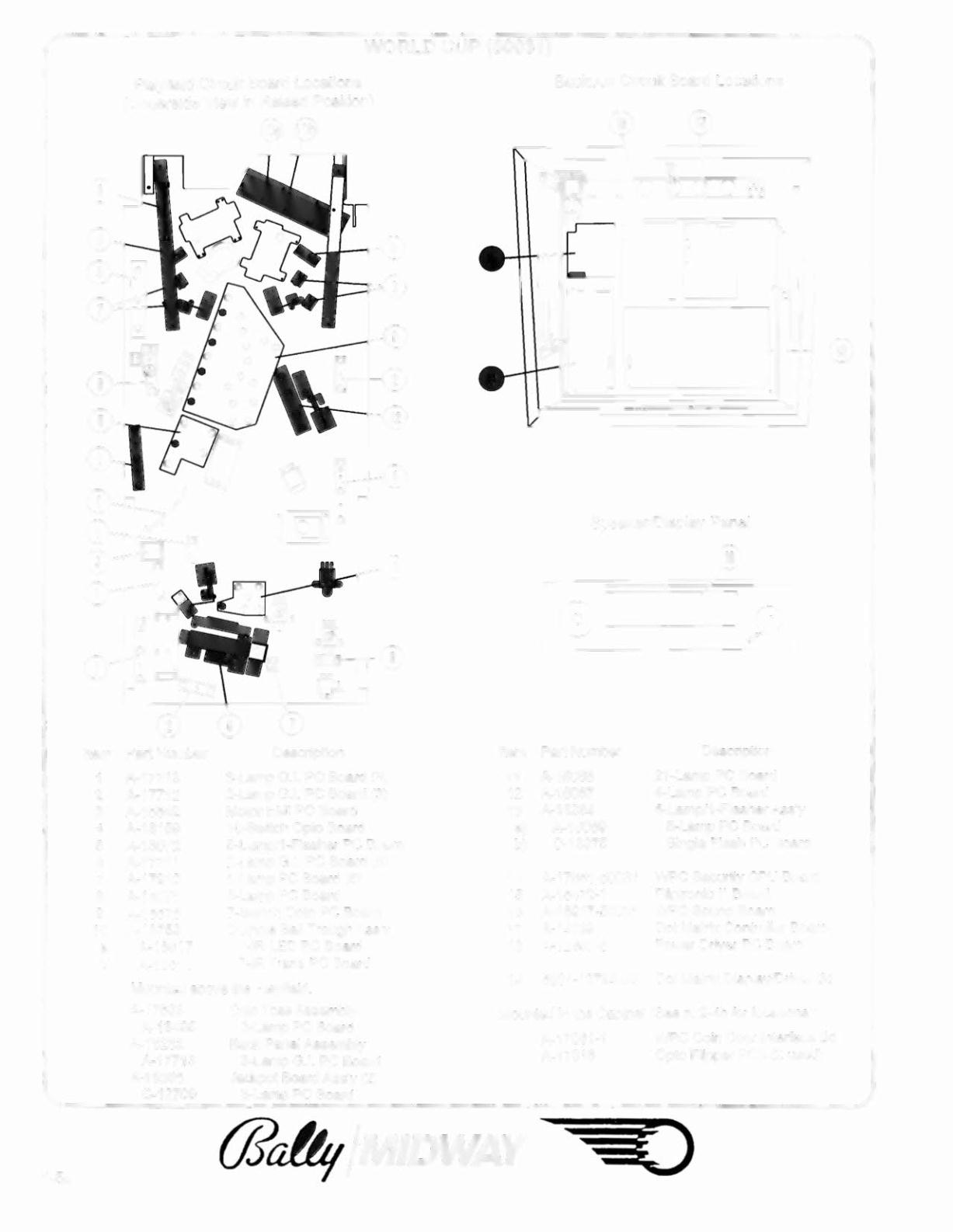

WORLD CUP (50031)
Playfield Circuit Board Locations
(Underside View in Raised Position)
Backbox Circuit Board Locations
~
11
I'\.
\
/
<,
\
~
- :
.~
)
()\(
. )l l ) ( _
O~
~
·~~ I
0 -=
·c :;.
15
0
•.......•
~
~
.~
18
®-
_f--
-
D D
.
1 /
Speaker/Display Panel
Item Part Number
Description
Item Part Number
Description
1 A-17713
3-lamp G.I. PC Board (3)
11 A-18068
21-lamp PC Board
2 A-17712
2-lamp G.I. PC Board (3)
12 A-18067
4-Lamp PC Board
3 A-15542
Motor EMI PC Board
13 A-18384
5-Lamp/1-Flasher Ass'y
4 A-18159
1O-Switch
OPIO
Board
a)
A-18069
5-lamp PC Board
5 A-18072
5-lamp/1-Flasher
PC Board
b)
C-13375
Single Flash PC Board
6 A-17711
2-lamp G.I. PC Board (6)
7
A-17910
1-lamp PC Board (6)
14 A-17651-50031 WPC Security CPU Board
8 A-18071
3-lamp PC Board
15 A-15472-1
Fliptronic II Board
9 A-15576
7-Switch Opto PC Board
16 A-16917-50031 WPC Sound Board
10 A-18753
Outhole Ball Trough Ass'y
17 A-14039
Dot Matrix Controlier Board
a)
A-18617
7-IR LED PC Board
18 A-12697-3
Power Driver PC Board
b)
A-18618
7-IR Trans PC Board
Mounted above the Playfield:
19 5901-12784-00 Dot Matrix Display/Driver Bd
A-17633
Coin Toss Assembly
Mounted in the Cabinet (See p. 2-4b for loeations):
A-18495
3-Lamp PC Board
A-18232
Back Panel Assembly
A-17051-1
WPC Coin Door Interface Bd
A-17713
3-Lamp G.I. PC Board
A-17316
Opto Flipper PCB (2 used)
A-18385
Jackpot Board Ass'y (2)
C-12709
3-Lamp PC Board
(jJaI!&j
/MIDWAY
