Judge Dredd (20020)

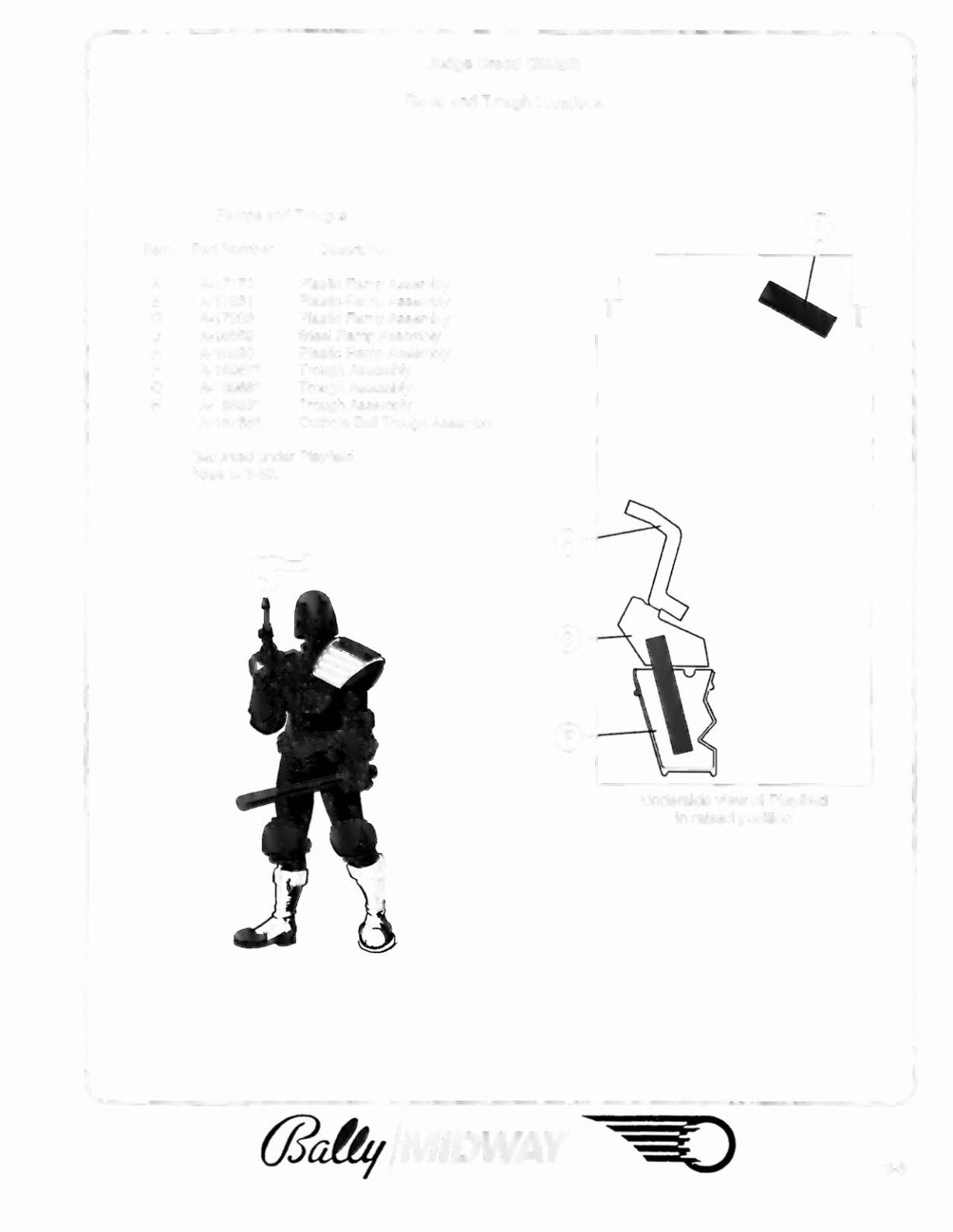

Ramp and Trough Locations
Ramps and Troughs
Item Part Number
Description
A A·17170
B A·17231
C A-17203
D A-16569
E
A-16630
F A-1696?"
G A-16966-
H A-16633*
I
A-16765t
Plastic Ramp Assembly
Plastic Ramp Assembly
Plastic Ramp Assembly
Steel Ramp Assembly
Plastic Ramp Assembly
Trough Assembly
Trough Assembly
Trough Assembly
Outhole Ball Trough Assembly
·Mounted under Playfield.
tSee p. 3-52.
Underside view of PlayfJeld
in raised position
(jJafPLt
/MIDWAY
3-3
