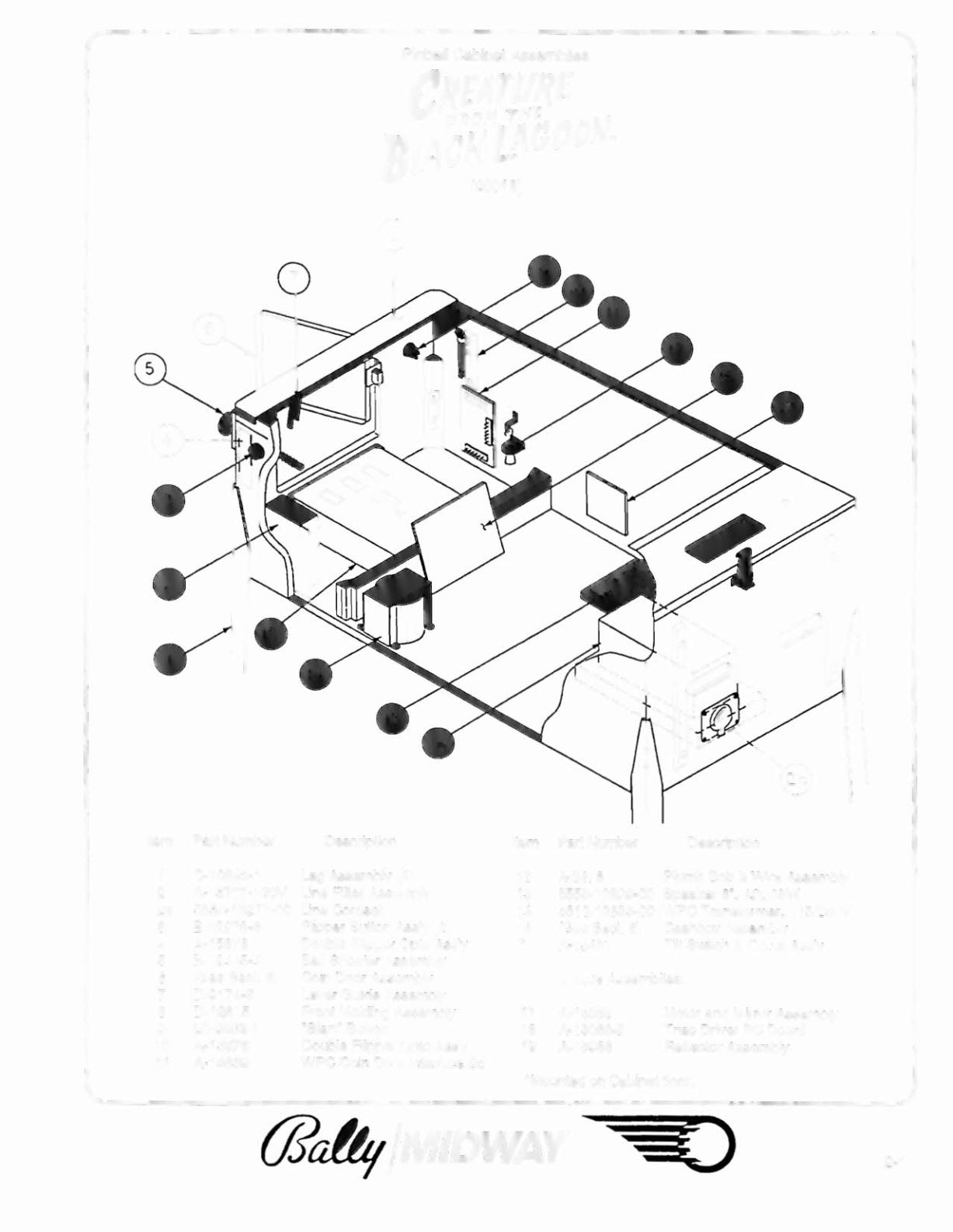

Pinball Cabinet Assemblies
CREATURE
Bt
J{cfflACOON.
(20018)
Item Part Number
Description
Item Part Number
Description
1 G-10843-1
Leg Assembly (4)
12 A-8476
Plumb Bob & Wire Assembly
2 A-15707-120V Une Filter Assembly
13 5555-12929-00 Speaker 6·, 4Q, 25W
2a 5850-13271-00 Line Cordset
14
5610-12835-00 WPC Transformer, 1151230V
3 B-12273-6
Flipper Button Ass'y (2)
15 (See Sect. 8) Cashbox Assembly
4 A-15878
Double Flipper Opto ASS'y
A-15487
Tilt Switch & Cable Ass'y
5 B-12445-4
Ball Shooter Assembly
6
(See Sect. 8) Coin Door Assembly
Unique Assemblies:
7 0-9174-3
Lever Guide Assembly
8 0-12615
Front Molding Assembly
17 A-15958
Motor and Mirror Assembly
9 20-9663-1
·Start· Button
18 A-13088-2
Triac Driver PC Board
10 A-15878
Double Flipper Opto Ass'y
19 A-15986
Reflector Assembly
11 A-14669
WPC Coin Door Interface Bd
'Mounted on Cabinet floor.
